Product Description
Main Techincal Parameters:

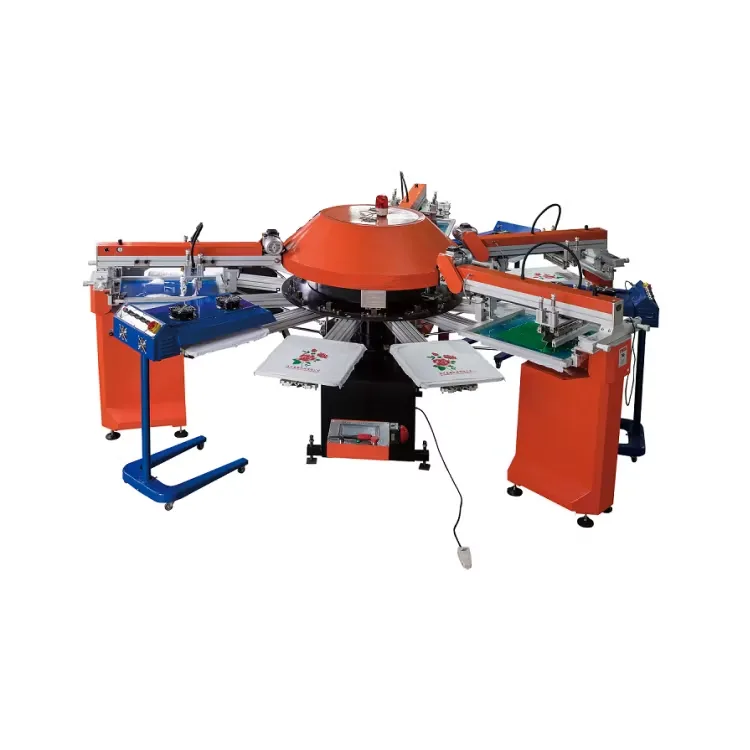

SPG series is our high-tech automatic textile printers. Aimed for higher production output and faster recovery of investments, it’s equipped with intelligent micro-processor, minimal maintenance requirement but top quality print result, leading to the superior printer in any print workshop. Please make sure that all the operators should read this manual careful before using the machine.
It is available in 4, 6, 8, 10, 12, 14 and 16-color models with 500×700mm maximum image area, The machine suitable for printing on garment materials, T-shirts,sleeves, pant legs, fabric sheets,paperboards,glass plates , EVA and PVC/PU sheets & bags etc.
| Modèle | SPG-104/8 | SPG-156/10 | SPG-158/12 |
| Coupleur/station | 4-6/8 | 4-8/10 | 6-10/12 |
| Dimension de l’image max. | 300×400mm | 300×400mm | 300×400mm |
| Dimension de plat | 400×500mm | 400×500mm | 400×500mm |
| L’air | ≥1.0Mpa | ≥1.0Mpa | ≥1.0Mpa |
| Rendement | 700pcs/h | 700pcs/h | 700pcs/h |
| Puissance de moteur principale | 2.0Kw | 2.0Kw | 2.0Kw |
| Puissance max de | 13.5Kw | 13.5Kw | 13.5Kw |
| Dimension | Φ3400×1600mm | Φ3400×1600mm | Φ3400×1600mm |
| Poids | 700Kg | 800Kg | 900Kg |
Electric Parts Configuration:
| Name | Brand |
| Touch Screen | colorful 10 inch |
| Power Switch | MEAN WELL |
| Servo Motor | Yaskawa |
| Transducer | DELTA(0.4KW/220V) |
| AC Contactor | CHNT |
| Middle Relay | OMRON(24VDC) |
| Proxity Switch | OMRON |
| Emergency Switch | SCHNEIDER(BE102C) |
| Switch With Lock | SCHNEIDER(BE101C) |
| Spin Switch | SCHNEIDER(BE101C) |
| Manometer | STNC |
| Muffler | EASUN |
| single solenoid valve | STNC |
| Electromagnetic Valve | Mindman |
| Belt | Megadyne(Italy) |
| FR&L | STNC |
| Breaker | CHNT |
| PLC | Taiwan yonghong |
|
three-phase asynchronous motor
|
FYMA |

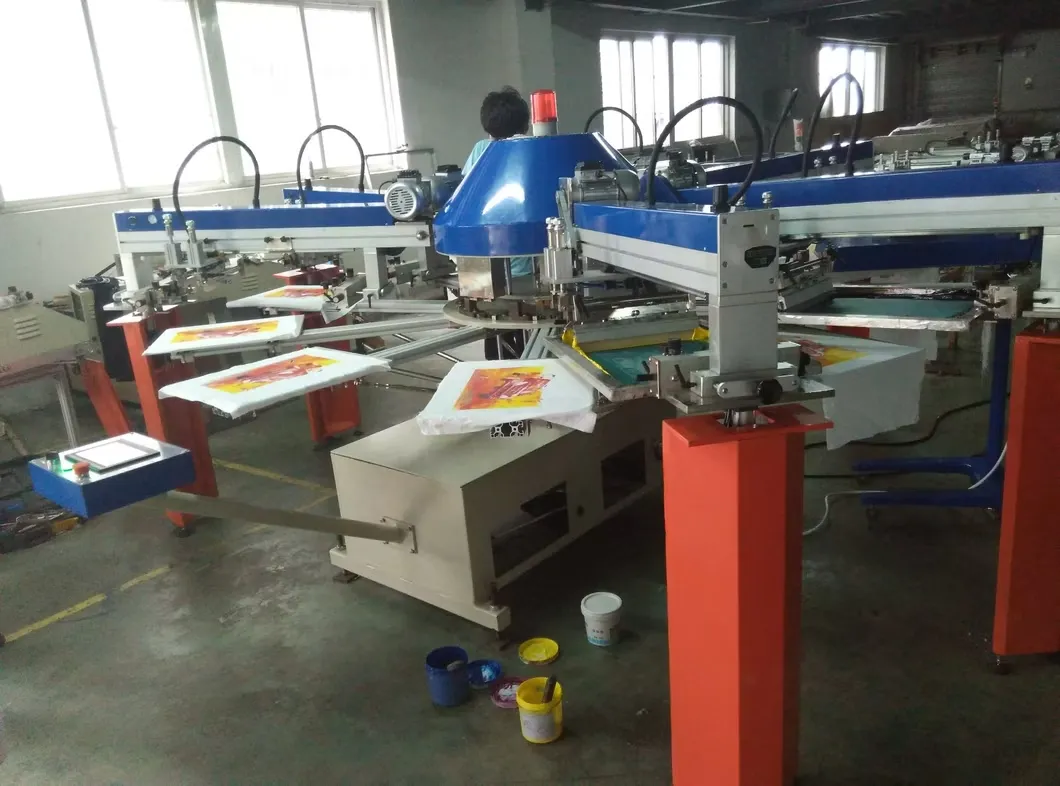

Sample:
