Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter - Image 2
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter - Image 3
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter - Image 4
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter - Image 5

Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Standard Output Power 2,000W
Effective Cutting Range 3,000 mm × 1,500 mm
Laser Wavelength 1,070 nm
Applicable Materials Stainless Steel, Carbon Steel, Aluminum, Copper
Mechanical Precision +/- 0.03 mm/m
Repeatability +/- 0.02 mm/m

Original price was: $22,000.00.Current price is: $21,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

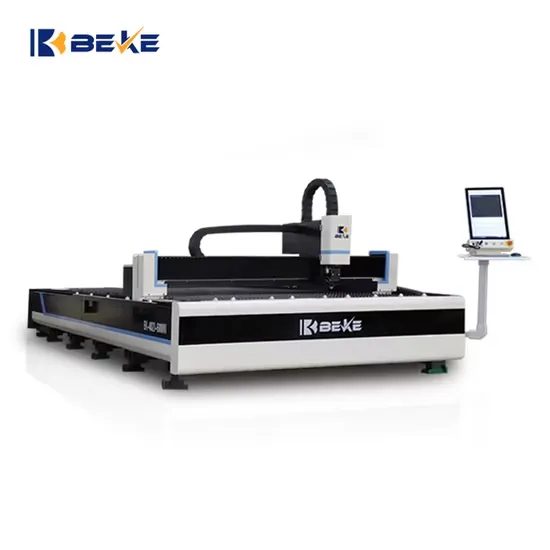

Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter
Single Table 6000W Fiber Laser Cutting Machine 4020 Metal Plate Cutter

Product Parameters



ITEMS VALUE
Model BK-6000W-4020
Laser Type Fiber Laser
Laser working medium YVO4
Laser wavelength 6000nm
Rated output power 6000W
Beam quality <0.373mrad
Effective cutting range 4000×2000mm
Axial positioning accuracy of workbench ≤±0.03mm/m
Table repeat positioning accuracy ±0.02mm
Maximum positioning speed 120m/min
The maximum load of the workbench ≥1500KG
Number of phases 3
Power supply rated voltage 380V
Frequency 50Hz
Overall power protection level IP54



Main Configuration



No. Item Model Brand
1 Fiber laser  cutting machine BK-4020/6000W BEKE technology
2 Cutting head OSPR China
3 Laser MAX Shenzhen, China
4 Servo drive and motor Fuji Taiwan/Shenzhen
5 Special CNC cutting system BEKE customized China
6 Laser specific chiller Hanli/Tongfei China
7 Pneumatic components SMC Taiwan, Japan, etc
8 Proximity switch, etc Schneder France/Japan/China
9 Precision rack ROR Germany
10 Reducer Modori France



Power requirement Power supply capacity: 60KVA
Power supply requirements: (It is recommended to use a stabilized power supply)
Rated output voltage: 380V/50Hz
Three-phase voltage stability ±10%
Output voltage adjustment rate: <2%
Working air requirement Compressed air supply device (it is recommended to configure an air tank)
Volume: 1.0 m3 Rated pressure: 20 bar
Auxiliary gas:    Purity requirements:
Oxygen (O2)     ≥99.995 %
