Reliable Plastic Recycling Machinery Manufacturer for PE PP Waste Processing
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $46,000.00.$45,000.00Current price is: $45,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model Series | PTCS80, 100, 120, 130, 150, 180 |
| Raw Material | Polyethylene (PE) |
| Screw Type | Single-Screw |
| Heating System | Electromagnetic Heater |
| Control System | Computerized PLC with Inverter |
| Production Capacity | $200\text{ kg/H}$ – $1000\text{ kg/H}$ |
| Automation Grade | Fully Automatic |
| Certifications | CE, ISO9001:2008 |
| HS Code | 8477800000 |
| Origin | Suzhou, China |
Product Description

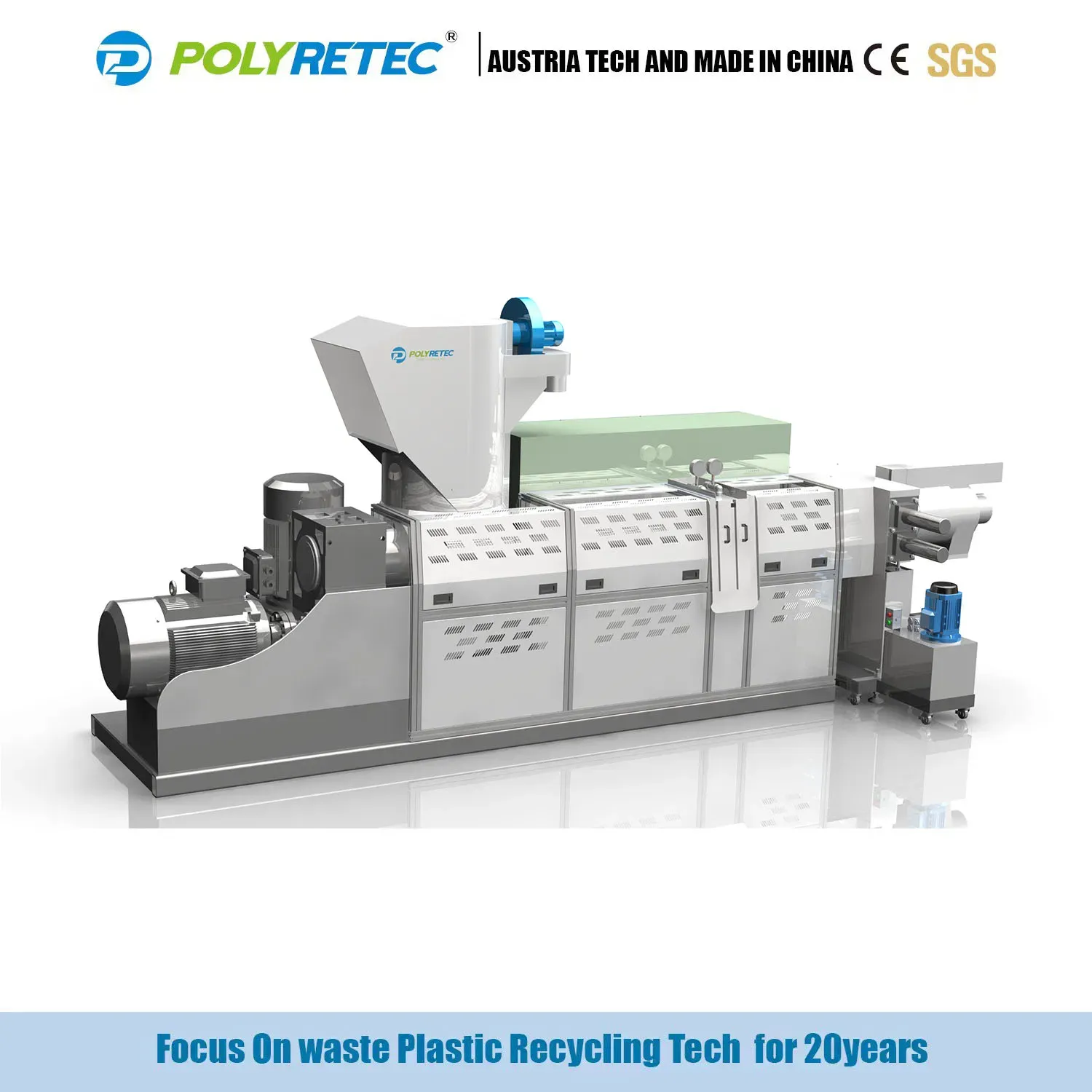

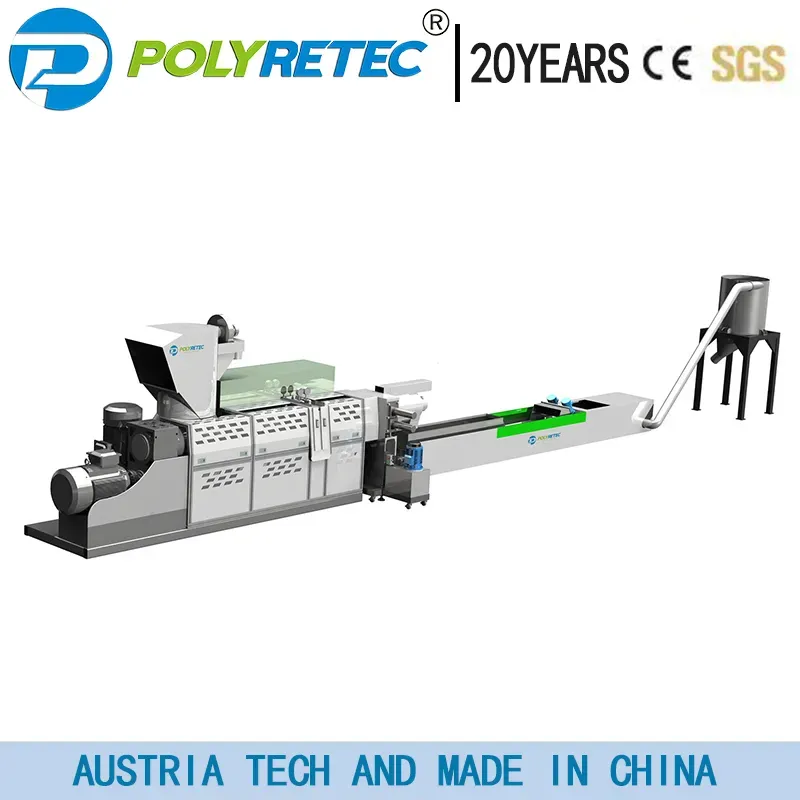

PE HDPE LDPE LLDPE Film/Bag, PP/BOPP Film Pelletizing Recycling Machine Line
We provide machine testing by your raw material / Turn-key recycling system available!
Suitable to recycle: Industrial waste from production line(e.g. from film/bag/sheet making machine, un-used heavy printed film/bag), Clean dry plastic film/agricultural film/greenhouse film/tobacco film, etc. from Washing line
01 – Technical parameter
| Model | PTCS80 | PTCS100 | PTCS130 | PTCS150 | PTCS185 |
| Screw diameter (mm) | 80 | 100 | 130 | 150 | 185 |
| L/D | 18-42 | ||||
| Rotating speed (rpm) | 10-150 | ||||
| Output (KG/h) | 150-250 | 200-350 | 450-600 | 600-700 | 800-1200 |
02 – Effect show
03 – Specification details
| Model | PTCS Three-in-one plastic recycling machine |

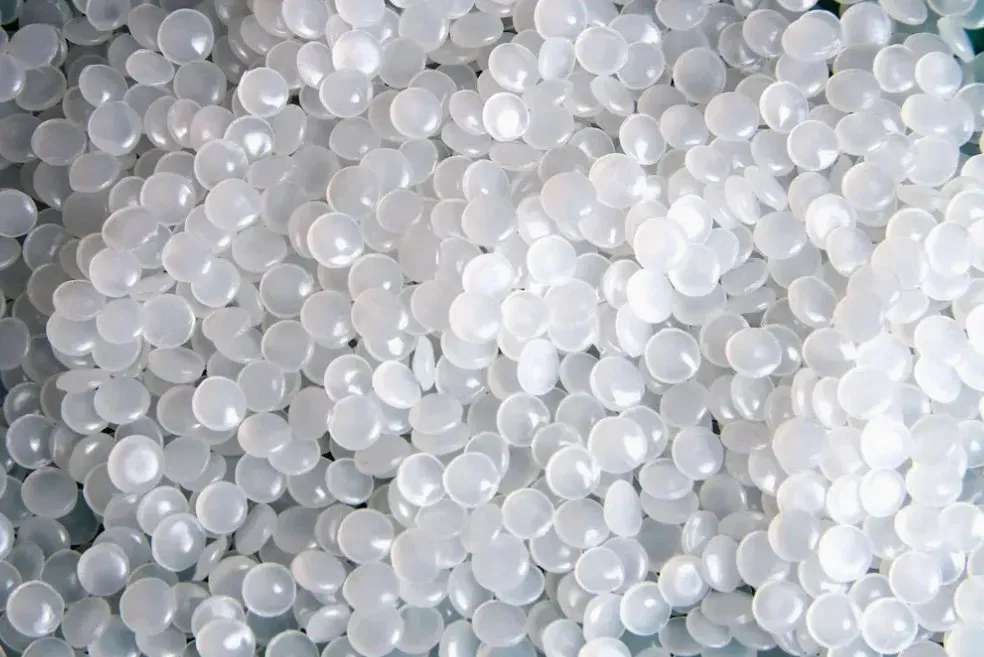

| Final product | Plastic pellets |
| Recycling machine structure | Conveyor belt, crusher/compactor, extruder, pelletizing unit, water cooling unit, drying unit and storage drum, degassing unit, filter unit |
| Recyclable materials | HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, etc. |
| Capacity | 200-1000/hr |
| Feeding system | Belt conveyor, clamp wheel set (optional) |
| Screw diameter | 80~185mm(customized) |
| Screw length to diameter ratio | 30/1, 32/1, 33/1, 34/1, 36/1 (customized) |
| Screw material | 38CrMoAlA or Bimetal |
| Degassing hole | Double degassing hole, single degassing hole or no degassing hole (customized) |
| Filtering system | Double-cylinder filtration |
| Pellet type | Hot die-cutting type (water-ring cutting) |
| Cooling method | Water cooling |
| Voltage | Customization (for example: 480V 60Hz in the United States, 440V/220V 60Hz in Mexico, 380V 60Hz in Saudi Arabia, 415V 50Hz in Nigeria) |
| Optional accessories | Metal detector (S+S Germany), wheel set, color master batch and additive meter, centrifugal dehydrator |
| Delivery date | It takes 45~70 days to customize the machine. |
| Warranty | One year |
| After-sales service | Engineers can be dispatched to customers’ overseas factories to assist in machine installation |

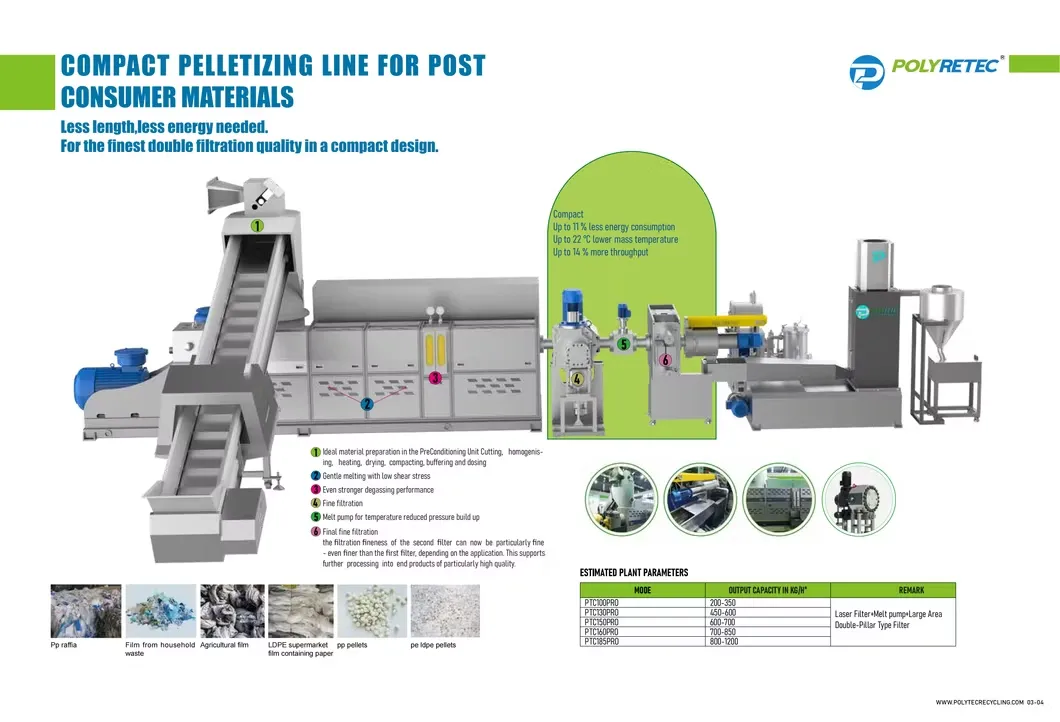

04 – Machine Process
05 – Features
06 – High Performance Plastic Recycling Granulation/Pelletizing Machine
07 – Customer Site Example & Suitable Industry
