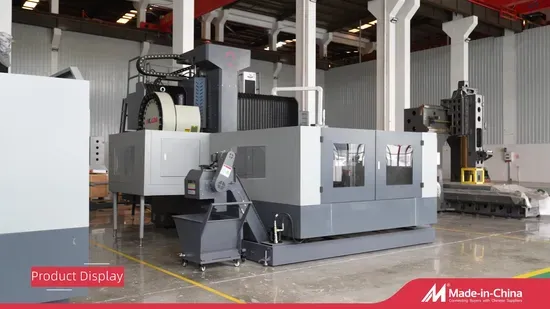

Product Description
Scope of Application
Suitable for efficient rough machining, semi precision machining, and precision machining of materials such as cast iron, cast steel, stainless steel, high-temperature alloys, titanium alloys, heat-resistant alloys, and aluminum alloys. It is mainly used in manufacturing industries such as aviation, heavy machinery, locomotives, shipbuilding, power generation, machine tools, printing, textiles, and molds. It can automatically and continuously complete multi process and multi station machining such as milling, boring, drilling, reaming, reaming, tapping, etc. on five surfaces according to a given program in one clamping of the workpiece.
|
Item
|
PM-12040DFL
|
PM-20040DFL
|
|
|
Workbench size (width x length) (mm)
|
12000×4000
|
20000×4000
|
|
|
Workbench movement direction stroke (X-axis mm)
|
Trip 12000 (side trip 13420)
|
Trip 20000 (side trip 22000)
|
|
|
Sliding pillow seat movement direction stroke (Y-axis mm)
|
4200
|
||
|
Vertical movement direction stroke of spindle (Z-axis mm)
|
1500
|
||
|
Sectional dimensions of the slider (mm)
|
500×500
|
||
|
Longmen width (mm)
|
4000
|
||
|
Workbench dimensions (length x width) (mm)
|
12000×3000
|
20000×3000
|
|
|
Distance from spindle end face to worktable (mm)
|
700~2200
|
||
|
Workbench T-shaped groove (number size x spacing)
|
48-28×250
|
80-28×250
|
|
|
Spindle specifications (model/installation diameter)
|
BT50/Ø 200
|
||
|
Spindle transmission mode
|
ZF deceleration
|
Speed 6000r/min, transmission ratio 4:1
|
|
|
Rapid traverse speed(m/min)
|
X:12;Y:10;Z:10
|
||
|
Cutting feed rate (m/min)
|
6
|
||
|
X;Y; Z-axis ball screw specifications/pitch
|
X: Gear rack; Y:8020; Z:6316
|
X: Gear rack; Y:8020; Z:6316
|
|
|
X;Y; Z-axis guide rail specifications/number of sliders
|
X-axis: Roller guide 55/20; Y-axis: Roller guide 55/8
Z-axis: rectangular slide rail |
||
|
X;Y; Z-axis servo motor transmission mode and transmission ratio
|
X-axis gear transmission 88:1: Y-axis planetary gear transmission 4:1:
Z-axis planetary gear transmission 3:1 |
||
|
Recommended selection of spindle motor
|
37 kw
|
||
|
X;Y; Z-three-phase synchronous motor (N · m)
|
X:30(4 piece); Y: 40: Z: 40 (holding brake)
|
||
|
Workbench load-bearing capacity (t/m2)
|
7
|
7
|
|
|
Electricity demand kva
|
50
|
50
|
|
|
Air pressure requirement kgf/cm
|
6.5
|
6.5
|
|
Feature
Single column fixed structure, worktable mobile structure, high rigidity of basic components, lightweight of mobile components, fully meet the needs of users. Capable of completing milling, boring, drilling, tapping and other processes in one clamping operation.
• High rigidity • High vibration resistance • High precision • High thermal stability • High dynamic response

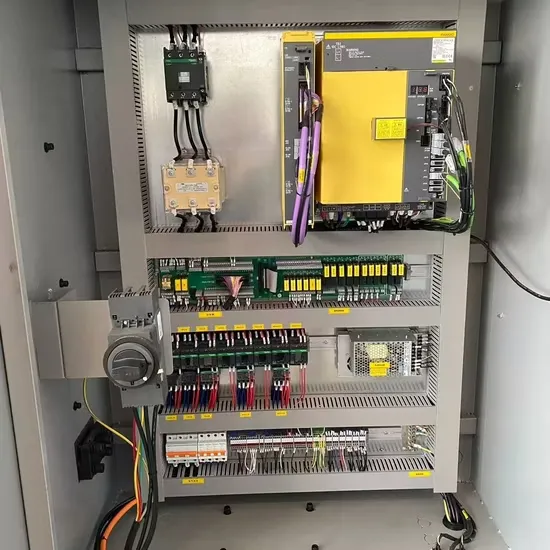

Details
Optional configuratlon
