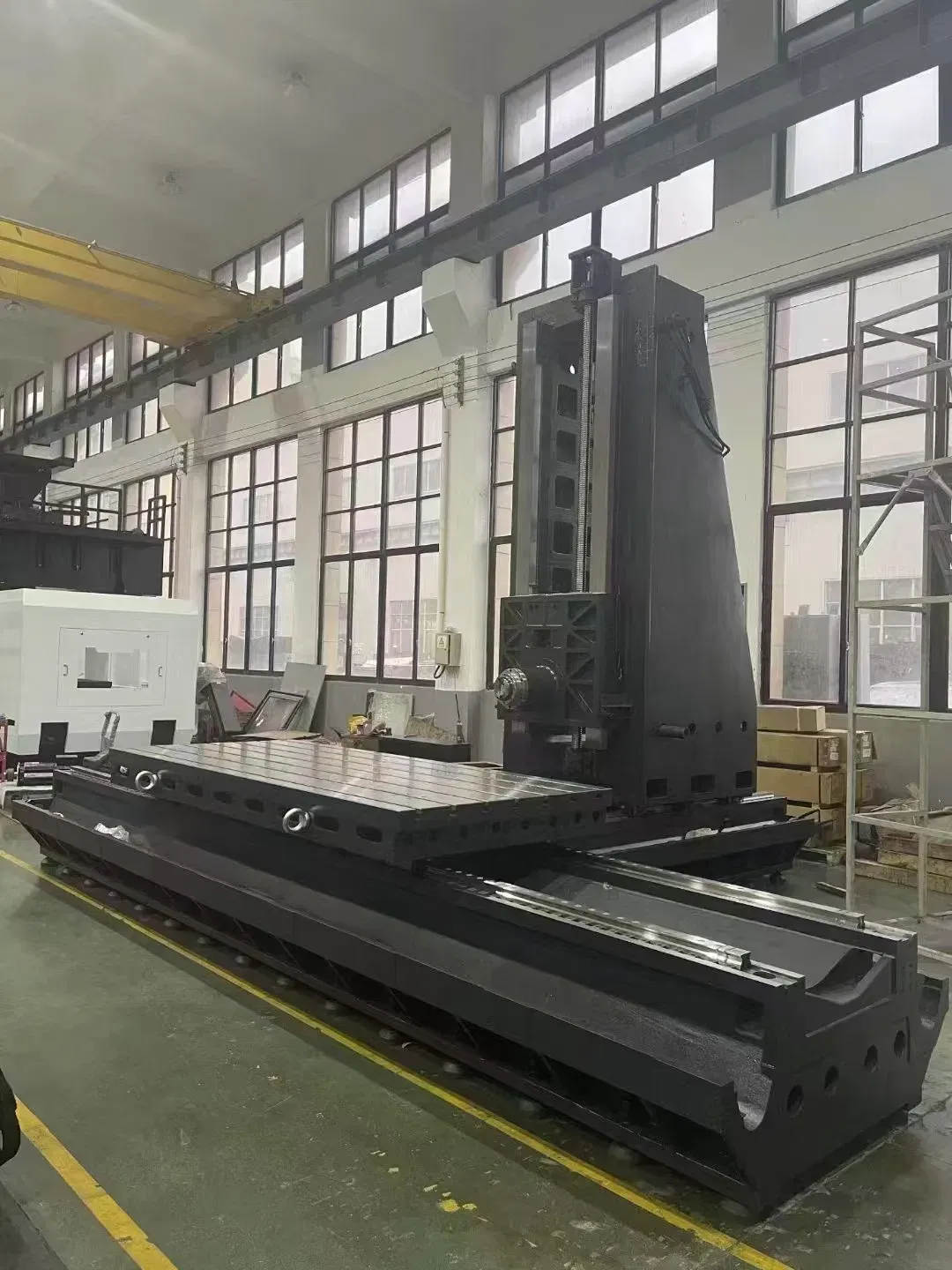

pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame
pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame - Image 2
pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame - Image 3
pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame - Image 4
pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame - Image 5
pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame - Image 6

pH800W 3-Axis Liner Guide CNC Horizontal Machining Center Machine Frame

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Processing Precision 0.01 – 0.02 mm
Spindle Speed 6,000 rpm
Max. Travel (X Axis) 1,700 mm
Max. Travel (Y Axis) 1,000 / 1,300 mm
Worktable Size 800 * 800 / 1000 * 1000 mm
Performance Tier Economical CNC Machine Tool

Original price was: $19,000.00.Current price is: $17,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Parameters

PH800W 3 axis Linear Rail Horizontal Machining Center Machine Frame
Item Specification Unit PH63GW PH800W PH1280WD PH1380WD PH1580WD
Travel Max. travel of X axis mm 1100 1700 1200 1300 1500
Max. travel of Y axis mm 800 1000/1300 750/800 800 800/1000
Max. travel of Z axis mm 1100 1000 800 800 800

Spindle

 Spindle specification / BT50-Φ190 BT50-Φ190 BT50-Φ155 BT50-Φ150/Φ155/Φ190 BT50-Φ190
Spindle speed rpm 6000 6000 6000/8000 Φ150-8000/12000
Φ155-6000/8000
Φ190-6000		 6000
Distance from spindle center to worktable mm 50-850 50-1050/90-1390 100-850/205-1005 205-1005 205-1005/
405-1405
Distance from spindle nose to worktable center mm 125-1225 Φ190(Long nose): 210-1210
Φ190(Gear head): 300-1300		 215-1015 Φ150(Long nose): 250-1050
Φ155(Long nose): 215-1015
Φ190(Short nose): 245-1045
Φ190(Long nose): 175-975		 Φ190(Short nose): 245-1045
Φ190(Long nose): 175-975
Motor power Spindle motor kw 15~18.5 18.5 15~18.5 Φ150:11~15/
Φ155: 15~18.5		 18.5
X/Y/Z axis motor N.m X-axis: 30
Y-axis: 30 (Holding brake)
Z-axis: 30		 X/Z-axis: 30
Y-axis: 30 (Holding brake)		 X-axis: 30
Y-axis: 30 (Holding brake)
Z-axis: 30
X/Y/Z axis connection mode / X/Y/Z axis motor directly connect – – – –
Worktable Worktable size mm 630×630 Rotary table:
800×800/1000×1000		 1500×700 1500×700 1700×800
Max. load of worktable kg 1200 3000 1500 1500 1500
T-slots (Number – size × spacing) mm 24-M16-125×125 7-22×100/9-22×100 5-18×145 5-18×145 5-22×145
Number of worktable/indexing unit / Double station /1° or 0.001° – – – –
Fast moving speed X-axis fast moving speed m/min 24 16 20 20 20
Y-axis fast moving speed m/min 24 16 20 20 20
Z-axis fast moving speed m/min 24 16 20 20 20
Cutting feed speed mm/min 1-8000 1-8000 1-6000 1-6000 1-6000
X/Y/Z rail (ball/roller) / X-axis 55 roller linear rail 4 slides
Y-axis 55 roller linear rail 6 slides
Z-axis 55 roller linear rail 4 slides		 X-axis 45 linear rail 6 slides
Y-axis 55 linear rail 6 slides
Z-axis 55 linear rail 6 slides		 X-axis 45 linear rail 6 slides
Y-axis 45 linear rail 6 slides
Z-axis 4 pcs 45 linear rail 8 slides		 X-axis 45 linear rail 6 slides
Y-axis 45 linear rail 6 slides
Z-axis 4 pcs 45 linear rail 8 slides		 X-axis 55 linear rail 6 slides
Y-axis 45 linear rail 6 slides
Z-axis 4 pcs 45 linear rail 8 slides
X/Y/Z ball screw C3 level / X/Y/Z axis: Φ50×10 X/Z axis: Φ55×12
Y axis: Φ50×10		 X/Y/Z axis: Φ40×10/*Φ190 spindle
Y axis: Φ50×10		 X/Y axis: Φ40×10
Z axis: Φ50×10/*Φ190 spindle
Y axis: Φ50×10		 Φ50×1
