Product Description
Product Description: It is compose of two part of cooling roller , and the width is design according to the product size and output capacity. Installed on stainless steel platform. It can press the material which from the Kitchen area , and the loading machine will transfer peanuts to the nuts feeder which connected with this roller.

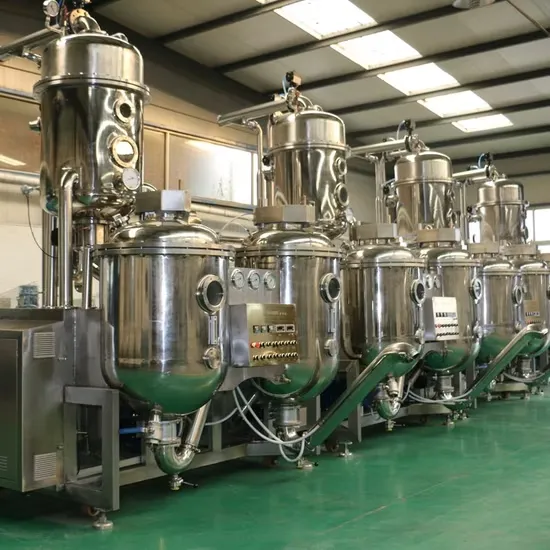

Name : Vacuum Mixer Cooker

Function : cooking the syrup which transfer from the melting tank, and vacuum mix the finished cooker material , mix with nuts finally.
- Steam pressure: .0.8Ma material: 304 stainless steel
- Electricity:28kw ,2400x2600x3500mm
- Capacity: 150kg/batch /20Minutes
- Controll panel: Maual or Automatic (Can be custmomized)

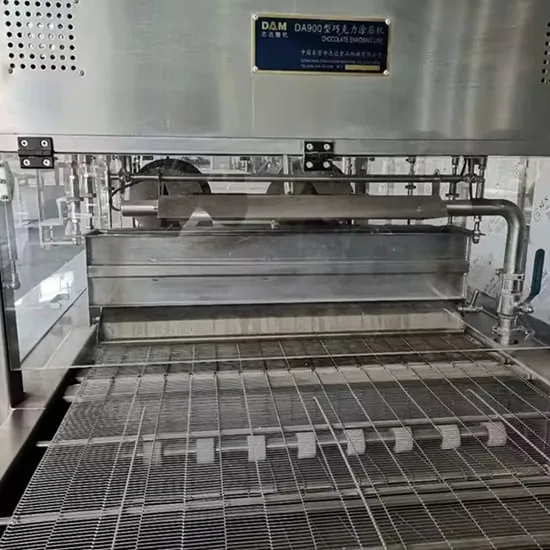

Application :This enrobing line is to coat chocolate on various food ,such as biscuit ,wafers, egg rolls,cake pie and snacks etc. Cooling tunnel is available. There are following special devices for optional also:
| Item /Model | 400 | 600 | 900 | 1000 | 1200 |
| Wire mesh and belt width(mm) | 400 | 600 | 900 | 1000 | 1200 |
| Wire mesh and belt speed(m/min) | 2.5-4 | 2.5-4 | 2.5-4 | 2.5-4 | 2.5-4 |
| Refrigeration unit (set) | 2(set)3HP | 3(set)3HP | 3(set)5HP | 3(set)5HP | 4 (set)5HP |
| Cooling Tunnel length (m) | 10 | 13.5 | 15.5 | 17.5 | 20 |
| Cooling Tunnel Temperature(ºC) | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 |
| Total power(kw) | 16 | 16.5 | 22.87 | 25 | 28.5 |
| Weight(kg) | 1800 | 2300 | 3200 | 3500 | 4050 |
| Dimensions | 1200x700x1500 | 15500x950x1800 | 17500x1200x1800 | 19500x1200x1800 | 22000x1450x1800 |

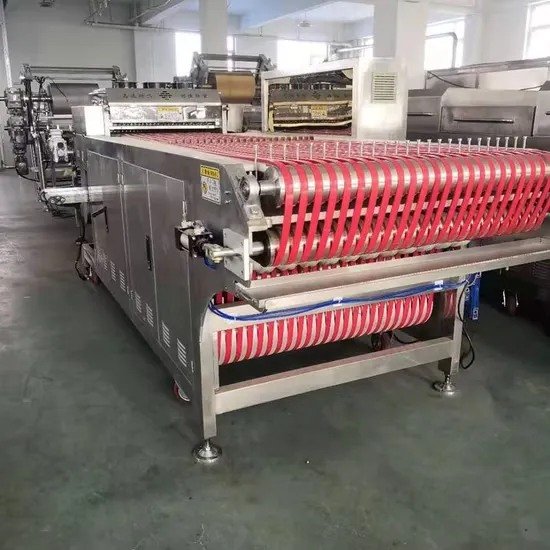

Name:Strip Cutter:
Product Description:
Power:3.7kw
Strip cutting machine with motor direct connect to prevent knife slipping, we coat knife with Teflon, knife cooling by fan.
Motor:Redsun

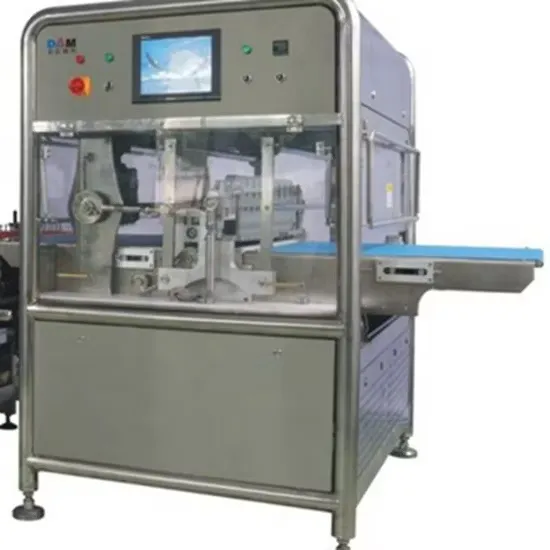

Electric parts:SchneiderName :Vertical Cutter

Product Description:
Servo motor with touch panel, knife with Teflon, push bar is driven by servo motor can set bar length and cut in continuous way.
Electricity:3.95 kw
Touch Screen: DELTA
Servo motor: DELTA
Electric parts:Schneider
Products produce :
