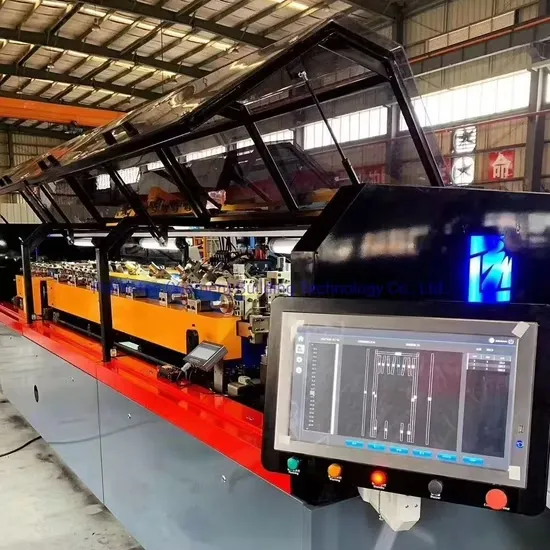

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 1

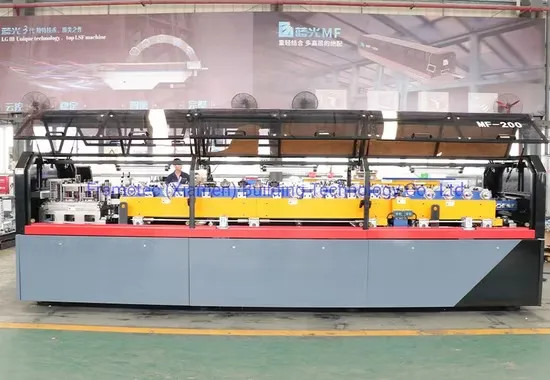

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 2

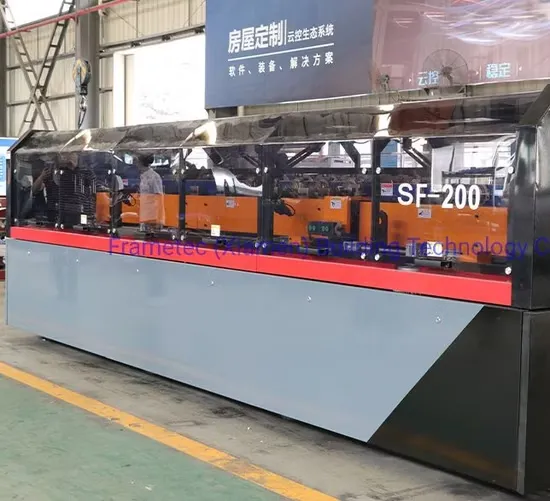

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 3

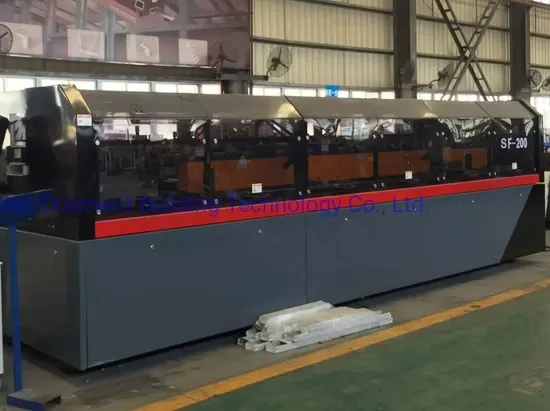

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 4

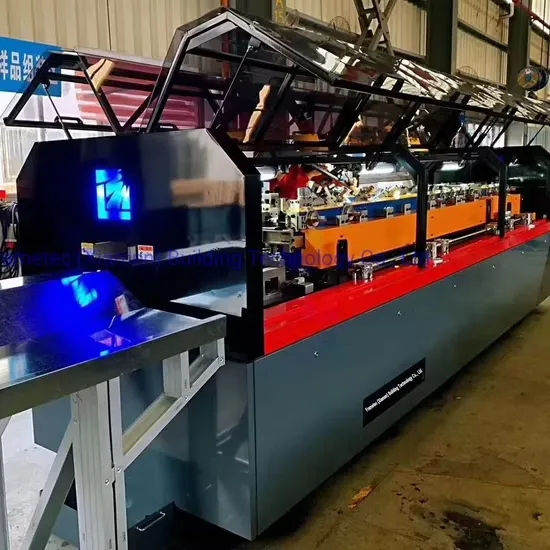

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 5

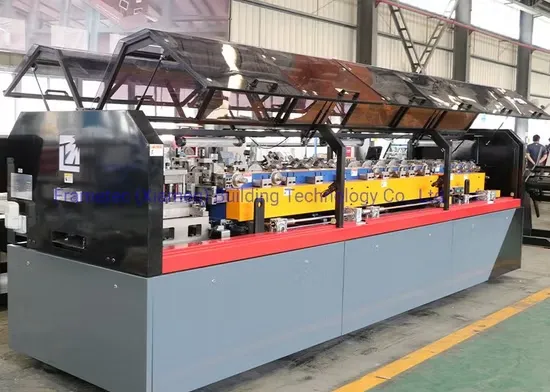

Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 6
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 7
Click to enlarge
Multi-Size Light Gauge Steel Framing Machine for Villa Construction
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 2
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 3
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 4
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 5
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 6
Multi-Size Light Gauge Steel Framing Machine for Villa Construction - Image 7

Multi-Size Light Gauge Steel Framing Machine for Villa Construction

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Applicable Materials Galvanized Sheet (GI), Cold Roll Steel (CRC), Hot Roll
Yield Strength 345 – 550 MPa
Material Thickness 0.8 mm – 1.6 mm
Web Width 75 mm – 220 mm
Flange Range 32 mm – 51 mm
Lip Range 8 mm – 12 mm

Original price was: $100,000.00.Current price is: $99,999.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

OVERVIEW
The MF200 Multi Profile Stud & Track Light Steel Framing machine is a highly versatile member of the FrameTec manufacturing system. Designed to offer increased production speed, greater flexibility and increased reliability, the MF200 Multi Profile Stud & Track Light Steel Framing machine is best suited for residential and light commercial projects. Producing profiles from  75mm to 220mm up to 1.60mm thickness.

MF200 Multi Profile Stud & Track Light Steel Framing machine is suited to construct walls, floors and roofs for 1 – 5 level residential, modular and transportable units, and light commercial construction.

Machine Equipment

Multi-Size Light Gauge Steel Framing Machine for Villa Construction

Product Parameters

                                                  1. Specifications

Profile Shape C and U Shape
Profile Size 75-220 mm
Material Thickness 0.8-1.6 mm, G300-G450 Zinc-Alum Steel Coil
Operation System 21 inches Touchable Screen
Production Control System Self-devoloped FrameTec LGS machine Controlling Software
Design Software Vertex BD from Finland
Comprehensive  Machine Speed Joists: 500 m/hr   Walls: 800 m/hr
Max. Machine Speed 2,150m/hr
Power Supplier 380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould Service Hole, Web Bolt Hole, Dimple, Web Notch, Shear.
Hole Punching Accuracy ± 0.5 mm
Decoiler 3000 kgs,auto decoiling

                                                  2. Machine Main Features

Classical LGS machine models for 6+ years, very stable and with high speed production speed The MF200 produces wall frames, trusses and joists for residential and light commercial building quickly economically
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.8 -1.60mm
High line speed results in the accelerated cold formed steel framing and truss manufacturing output Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
High line speed results in the accelerated cold formed steel framing and truss manufacturing output Self developing control system base on the market feedback that can meet your requirement well & with good after sales support
 Machine Details
Multi-Size Light Gauge Steel Framing Machine for Villa ConstructionMulti-Size Light Gauge Steel Framing Machine for Villa Construction

Working Flow:
De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table
Multi-Size Light Gauge Steel Framing Machine for Villa Construction
Machine details:Multi-Size Light Gauge Steel Framing Machine for Villa Construction

Profile Effect & Application
Multi-Size Light Gauge Steel Framing Machine for Villa ConstructionMulti-Size Light Gauge Steel Framing Machine for Villa Construction

Multi-Size Light Gauge Steel Framing Machine for Villa Construction
Design Software & Production System
(International leading brand for LGS construction design)
