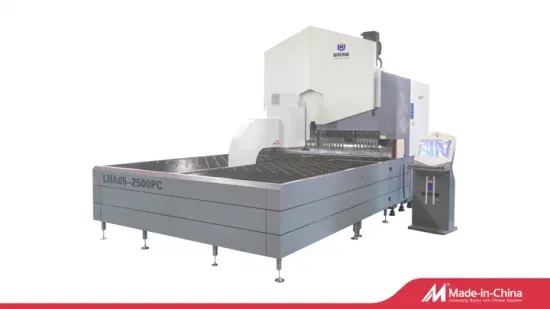

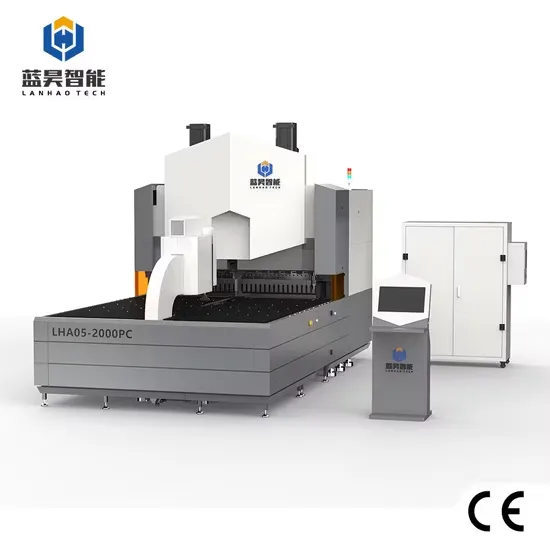

Lanhao Sheet Metal Work Multi-Axis Bending Machine Metal Forming

Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Applicable Materials Stainless Steel, Carbon Steel, Alloy, Aluminum, Copper
Control System High-Precision CNC Numerical Control
Bending Mechanism Automated Precision Forming
Warranty 2-Year Comprehensive Warranty
Build Quality Industrial Reinforced Steel Frame

Original price was: $88,000.00.Current price is: $87,000.00.

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

LHA-PC series intelligent flexible bending center adopts the pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic pressing arm adaption, oblique pressing point adaption, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
Lanhao Sheet Metal Work Multi-Axis Bending Machine Metal Forming

Product Parameters
Items LHA-1400PC1/1400PC3 LHA-2000PC1/2000PC3 LHA-2500PC1/2500PC3
Max. bending speed 0.2 second/time 0.2 second/time 0.2 second/time
Max. bending width 1400mm 2000mm 2500mm
Max. bending height 170mm(1400PC1) 170mm(1400PC1) 170mm(1400PC1)
300mm(1400PC3) 300mm(1400PC3) 300mm(1400PC3)
Rated voltage 380v 380v 380v
Total motor power 40Kw 79Kw 79Kw
Average power about 1.9Kw about 2.6Kw about 2.9Kw
Machine size 440*190*290cm 510*265*330cm 565*300*340cm
Total machine weight about 12t about 16t about 19t
Max. bending thickness
(thicker panel customizable)
UST 515N/mm2 304 stainless steel 1.5mm UST 515N/mm2 304 stainless steel 1.5mm UST 515N/mm2 304 stainless steel 1.5mm
UST 410N/mm2 cold panel 2.0mm UST 410N/mm2 cold panel 2.0mm UST 410N/mm2 cold panel 2.0 mm
UST 265N/mm2 aluminum panel 3.0mm UST 265N/mm2 aluminum panel 3.0mm UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness 0.35mm 0.35mm 0.35mm
Four sides forming minimum inner size 140*190mm 140*190mm 140*190mm
Two sides forming minimum inner size 140mm 140mm 140mm
Max. bending size 1400*1400mm 2000*1250mm 2500*1250mm
Applications

Lanhao flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
Lanhao Sheet Metal Work Multi-Axis Bending Machine Metal FormingLanhao Sheet Metal Work Multi-Axis Bending Machine Metal Forming

Lanhao Sheet Metal Work Multi-Axis Bending Machine Metal Forming
