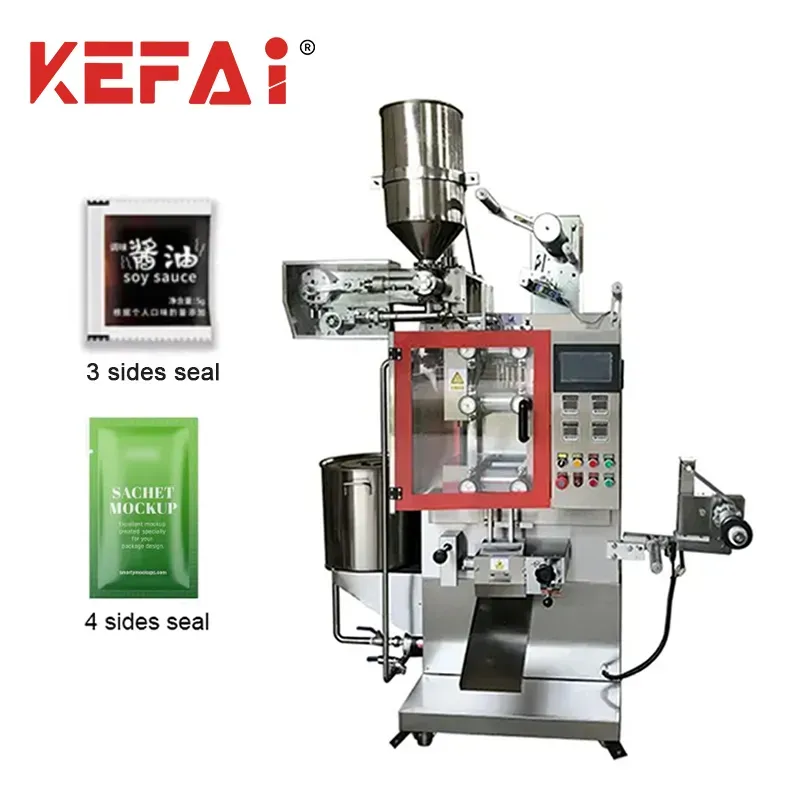

Kefai New Tech Automatic Continuous Pack Side Seal Sachet Packaging Paste Tomato Sauce Liquid Packing Machine Factory Price
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $14,000.00.$13,000.00Current price is: $13,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details | ||||||||||||||
| System Dimensions | 1400 × 1000 × 1850 mm (L × W × H) | ||||||||||||||
| Power Consumption | 3 kW | ||||||||||||||
| Driven Type | Electric & Pneumatic | ||||||||||||||
| Forming Function | Integrated Forming, Filling, and Sealing | ||||||||||||||
| Material Handling | Liquids, Gels, and Oils | ||||||||||||||
| Automatic Grade | Fully Automatic
|
Application
KF-D312 is a 3-side or 4-side sealing machine that supports various feeding systems for liquids and pastes products, enabling single, double, or triple pouch packaging.
Usage
It is mainly used for packing soy sauce, vinegar, oil, seasoning sauces, shampoo, and other liquid or viscous materials.
Main Features

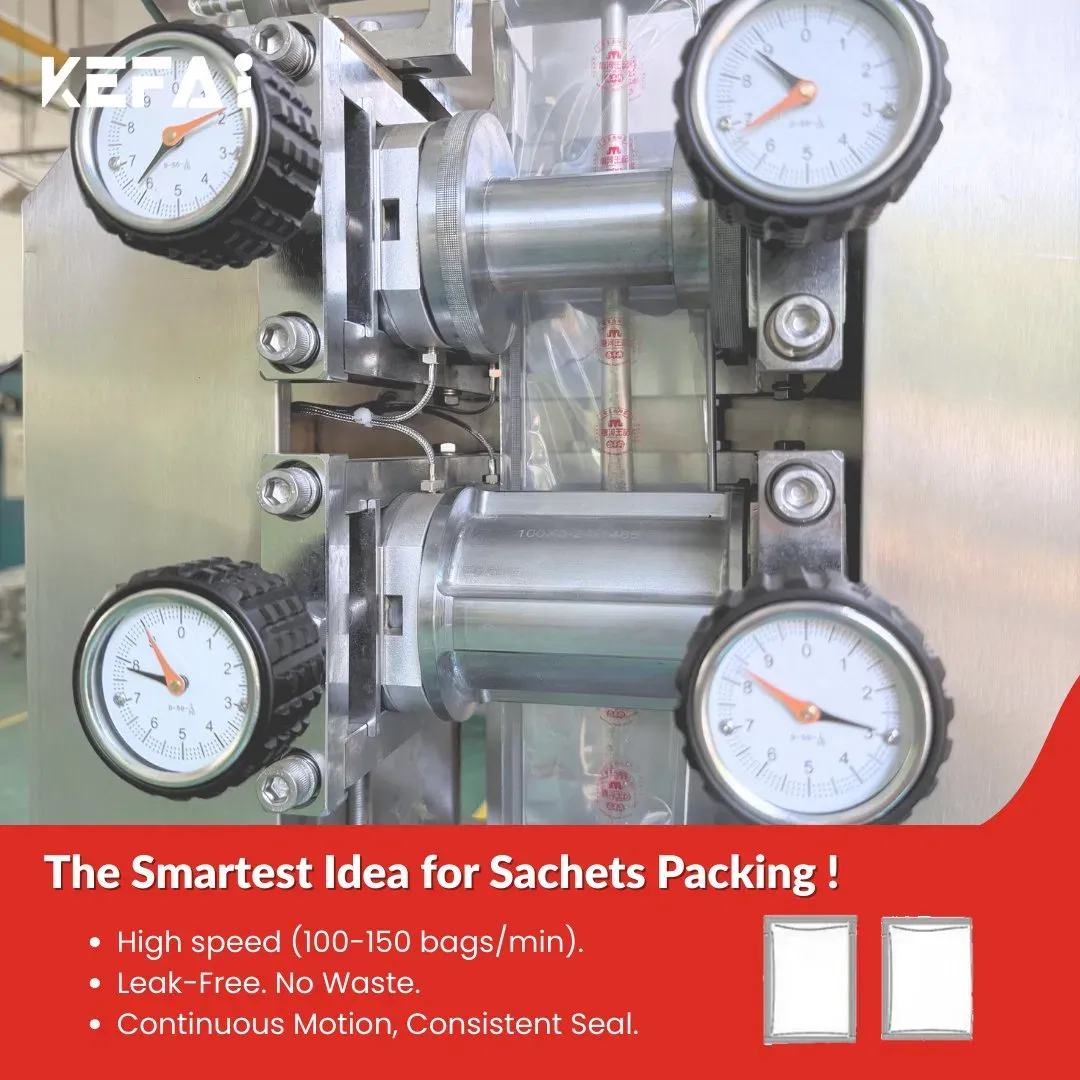

Includes longitudinal, transverse, and transverse strengthening roller sealing units. Longitudinal seals use a continuous checkerboard pattern with leak-proof lines; horizontal seals use either checkerboard or flat patterns with leak-proof lines.
Main processes: bag forming, longitudinal sealing, filling, transverse sealing, strengthening sealing, tear-notch creation, and cutting.
Feeding device is selected based on the material’s physical properties.

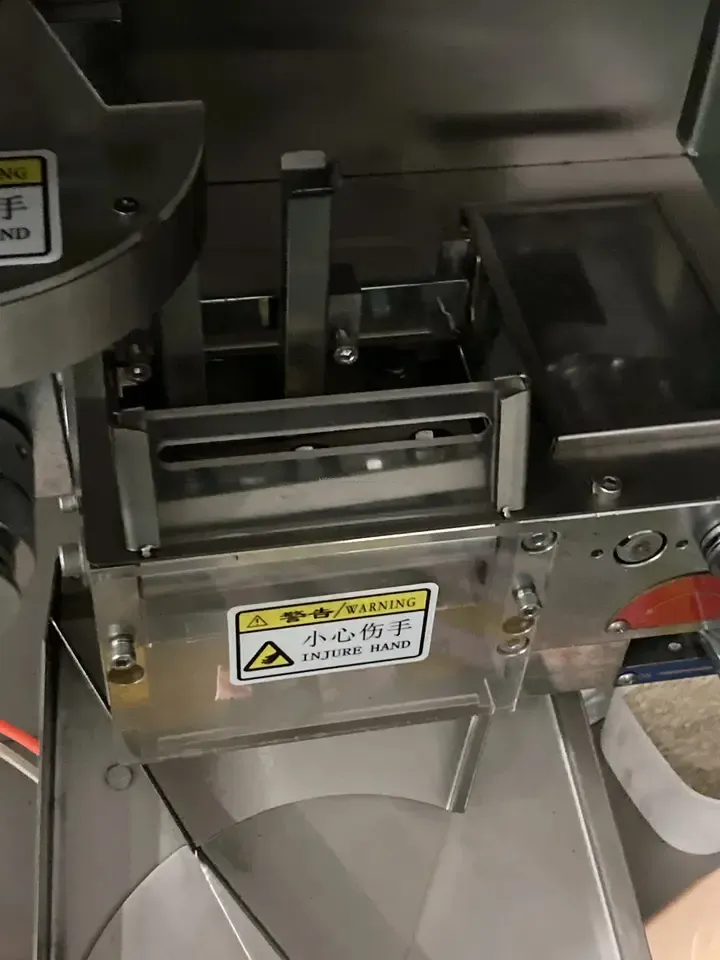

Cutting knife options: flat, serrated, or dotted line.
PLC centralized control, touch screen operation, servo-driven adjustable bag length, and intelligent photoelectric positioning.
Safety door ensures operator safety and convenience.
Specification
|
Item |
Parametric |
Item |
Parametric |
|
Model |
KF-D312 |
Bag Lenth Range |
45-180mm |
|
Power |
2.5KW / AC380V 3P |
Bag Width Range |
3 side sealed: 30-95mm |
|
Power |
450 KG |
Packing Speed |
30-120 bags/min |
|
Size |
1200*1000*1800mm |
Roll film material |
All kinds of composite packing films Outer Diameter:≤400mm |
|
Option Device |
Hot stamping device, Coding machine, Rigid exhaust device Stirring device, piston pump suction device, High and low material level detection device, Double-layer barrel |
Filling method |
Liquid: Magnetic pump metering device Homogeneous viscous body: Haiba pump metering device, Rotari pump metering device Paste with granule: piston pump |
