Product Description
Product Description

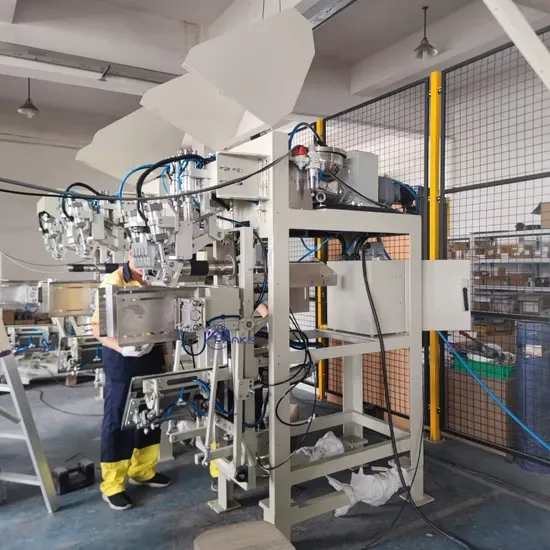

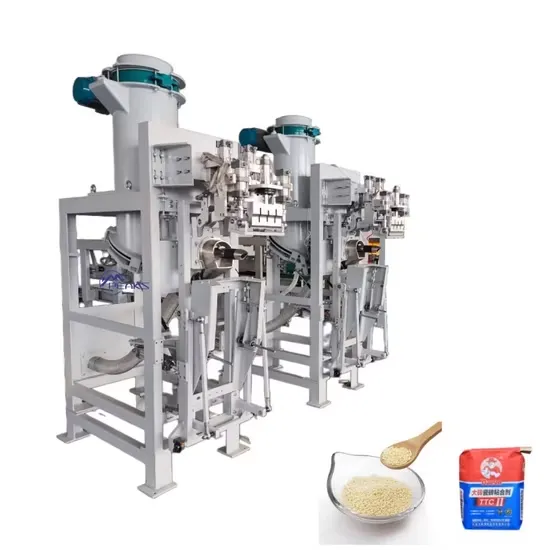

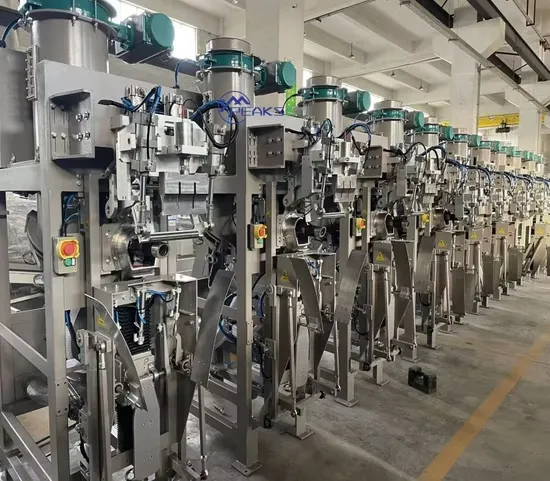

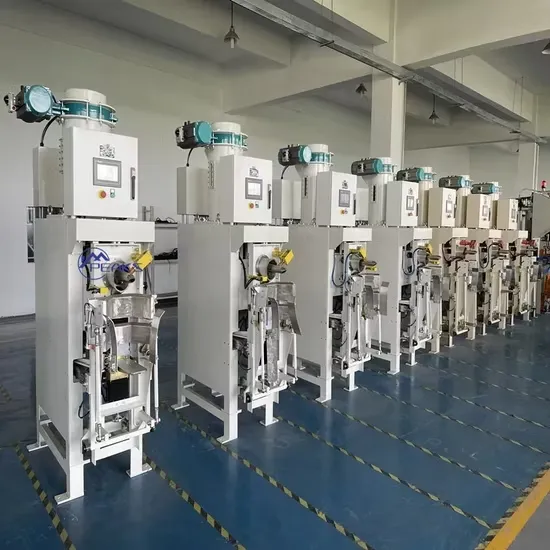

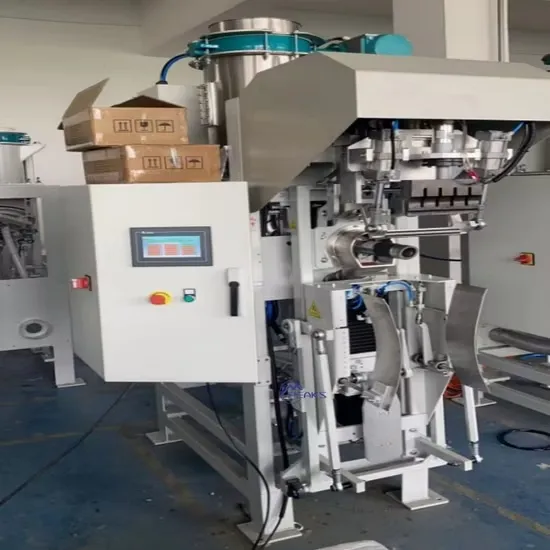

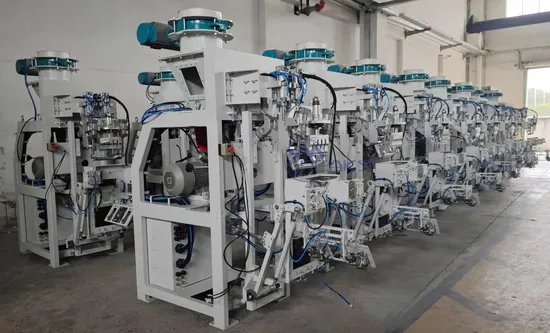

This is our valve bag filling and packing machine, it finish weighing and filling or even sealing automatically. The machine suitable for packing powder product, small granular product or flakes products into valve bags.
We have both semi automatic valve bag packing machine and fully automatic valve bag packer, the speed 3-8bags/min/set, max speed up to 480bags/set/hour.
Features:
1. World Top Brands Electric Configuration
2. Thick and Solid Materials, Well Treated Surface
3. Best Programing
4. Multi Driving Optional: pneumatic driving, impeller driving, or screw auger driving valve bag packer
5. PLC Control with English Color Touch Screen
6. High Precision Weighing
7. Well Protect for Operators
8. Many Other Equipments Optional
9. Machine Color can be Customized
10. Long Warranty
11. Professional Service Team
12. Strong Customized Ability

| No. | Item | Data |
| 1 | Power | 5KW |
| 2 | Production capacity | 3-8bags/min/set |
| 3 | Measuring accuracy | ±150g, depends on filling weight |
| 4 | Bag size | L: 400mm-560mm, W: 350mm-500mm (other size can be customized) |
| 5 | Nozzle diameter | can be customized |
| 6 | Bag type | inner valve bag, heat sealable valve bag, or ultrasonic sealable bag |
| 7 | Air consumption | approx 40m3/h/set (6 bar, dry, clean) |
| 8 | Machine size and G.W. | 1850*1200*2450mm, 900kgs |
