Gold Mining Drillingmulti-Function Solar Pile Driver Machine
Gold Mining Drillingmulti-Function Solar Pile Driver Machine Original price was: $41,000.00.Current price is: $40,000.00.
Back to products
Solar Energy Pile Driver Machine for Photovoltaic Foundation Construction
Solar Energy Pile Driver Machine for Photovoltaic Foundation Construction Original price was: $33,741.00.Current price is: $32,741.00.
-4%

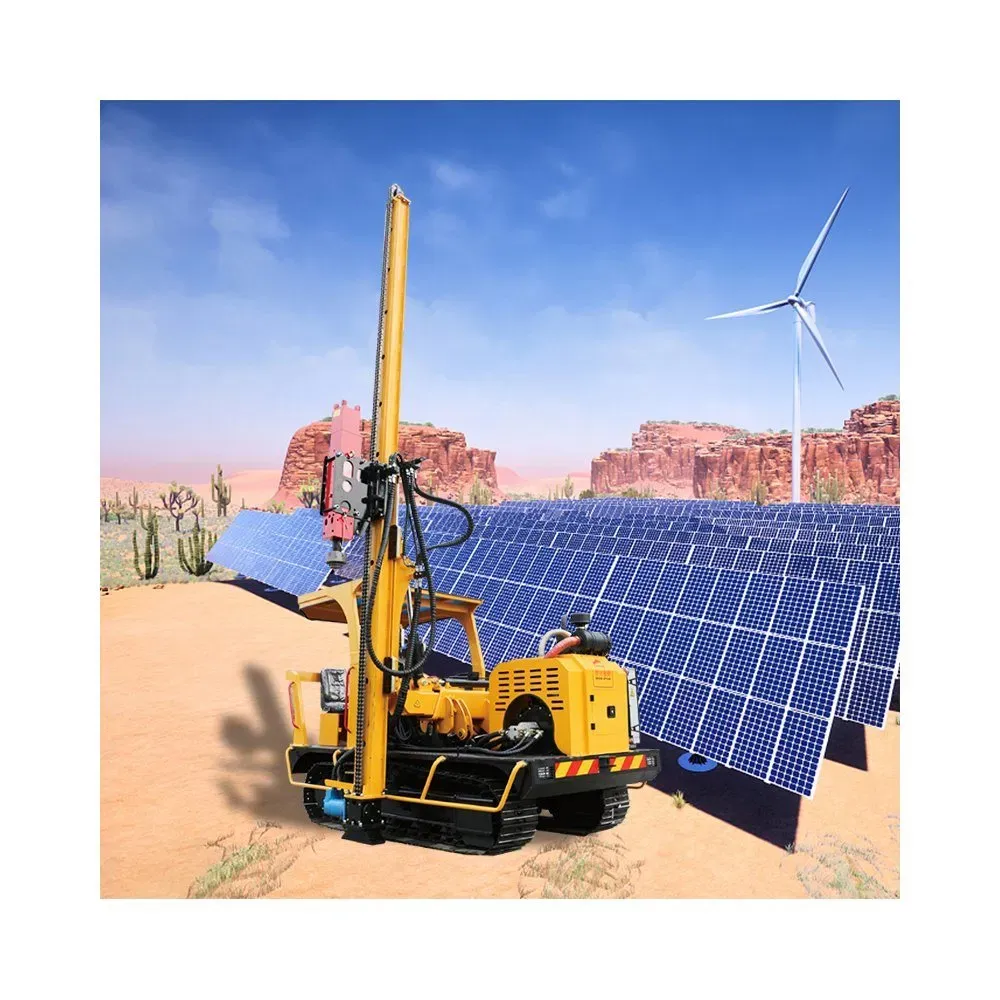

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 1

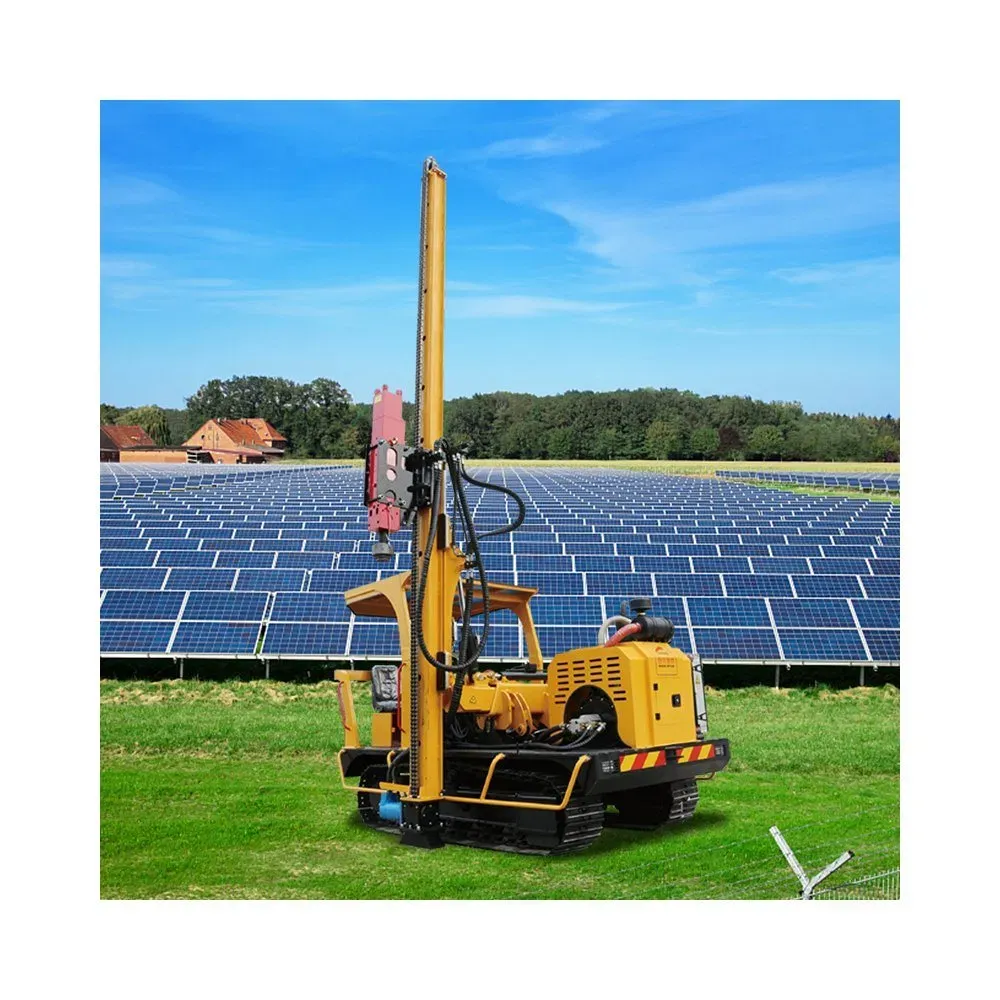

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 2

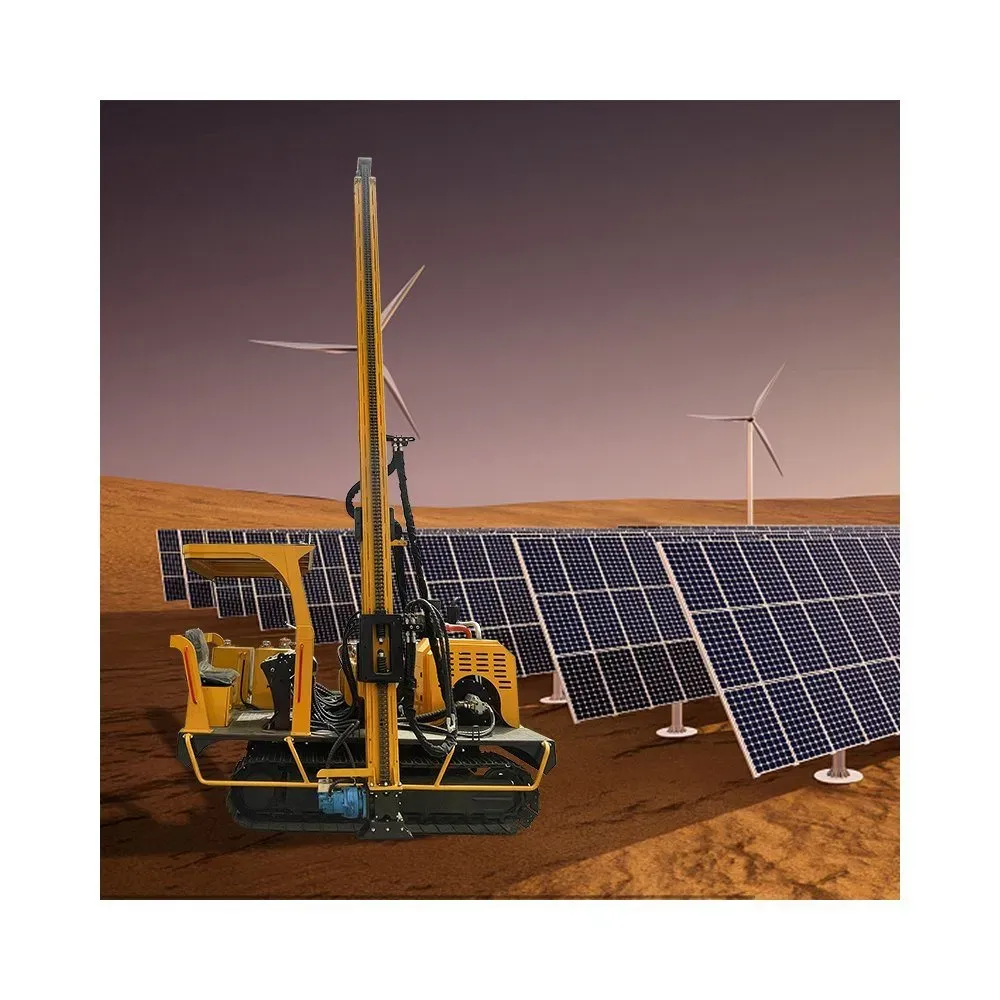

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 3

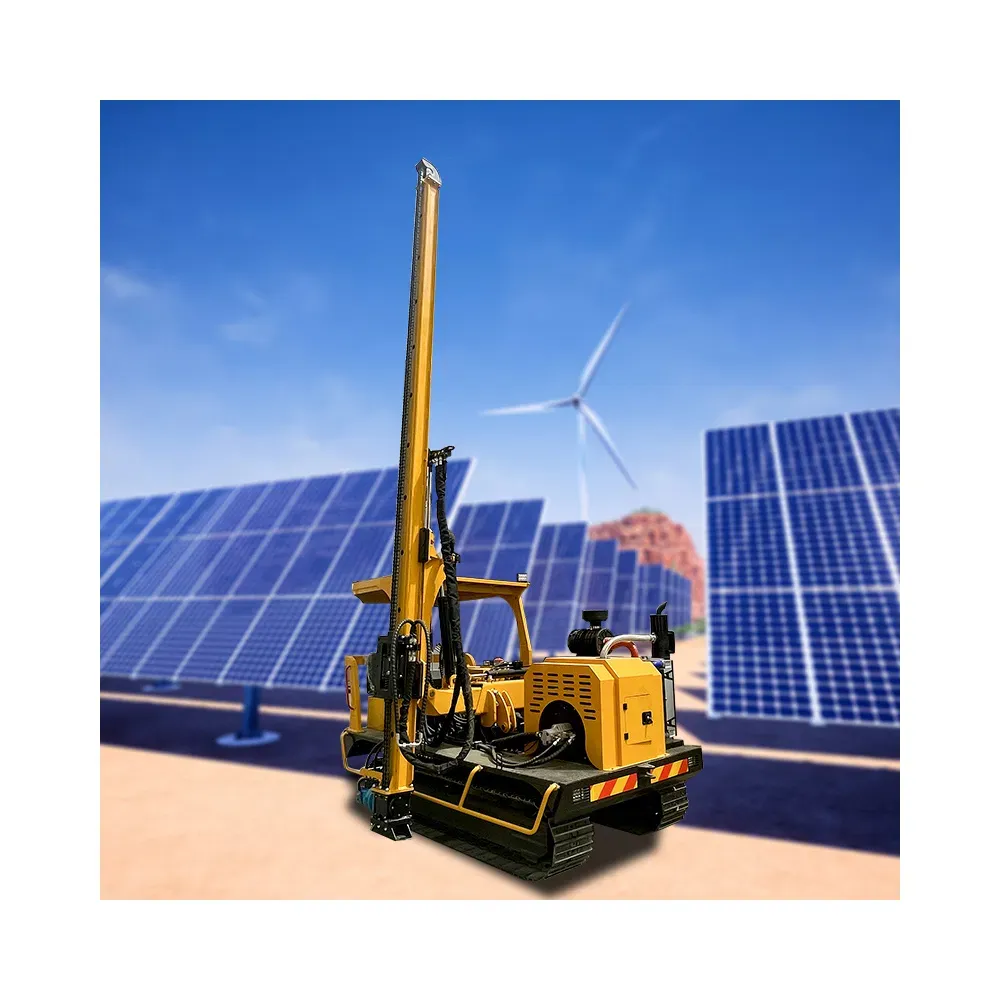

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 4
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 5
Click to enlarge
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 2
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 3
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 4
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale - Image 5

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale

Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Vehicle Weight 5,300 kg (5.3 Tons)
Working Dimensions 3,500 × 2,200 × 7,500 mm
Hydraulic System Flow 113.4 L/min
System Pressure 20 MPa
Piling Height Up to 5.5 Meters
Climbing Ability 30° (57.7% Gradeability)
Max Walking Speed 3.8 km/h

Original price was: $24,400.00.Current price is: $23,400.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Hydraulic PV Post Pile Driver / Pile driving machine wholesale

HXR5 series widely used for solar post installation. The machine has undertaken about 15 years testing in domestic market and foreign market with continuous orders from old customers . It has been ungraded to the 6th version for the best. It has multiple functions: ramming, DTH impact drilling, Screw pile, as well as extraction. With these functions, the machine can meet the requirement for most projects.

The machines have been exported to more than 40 countries. Such as European countries includes Latvia, Bulgaria, Serbia, Spain, Greece, Macedonia, Poland and so on. and even more Asian countries and South American countries.

No
Item
Data
1
Working Dimension (mm)
3500*2200*7500
2
Transportation Dimension (mm)
6500*2200*2700
3
Chassis Dimension
 2550*1700*5300
4
Vehicle Weight (Ton)
4.5-5.2
5
Engine Power (KW)
96kN
6
113.4Flow Rate of Hydraulic System (L/min)
60kN
7
Hydraulic System Pressure (Mpa)
20
8
Piling Height (m)
5.5
9
Impact Power (J)
1400, 1960
10
Hydraulic Hammer Type
Imported from South Korea
11
Drilling Depth (m)
4 m
12
Drilling Diameter (mm)
50-300
13
Max. Climbing Ability (°/%)
30°/57.7%
14
Max. Walking Speed (km/h)
3.8
15
Left and Right Sliding Stroke (mm)
≤500
16
Max. Adjustment Angle of Sliding Guide Frame
left 30 / right 8
17
Front and Rear Adjustment Angle of Sliding Guide Frame
Front 75 / Back 15
18
Hydraulic Tank Capacity (L)
80
19
Diesel Tank Capacity (L)
80
1. HIGH EFFICIENCY

2. COMPACT DIMENSIONS

3. EXTENDING UNDERCARRIAGE
4. SAFETY FRAME
5. SIMPLE CONTROL
6. EASY MAINTENANCE
7.VERSATILITY
8. AFTER-SALE SERVICE GUARANTEED
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale

FEATURES AT A GLANCE

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale

OUR SOLAR PILE DRIVER PILING MACHINES DETAILS:
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine WholesaleHydraulic PV Post Pile Driver / Pile driving machine wholesale
Product Show

Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
Hydraulic PV Post Pile Driver / Pile Driving Machine Wholesale
