Product Description
At present, the company has 56 patents, including 15 invention patents and 41 utility model patents,also gets the well-run technology and quality guarantee management system with ISO9001 and CE certificate .XJCM main products include RT series rough terrain crane, QY series truck crane, JFYT series self erecting tower crane ,DGY series multifunctional pipelayer .It also can supply big machinery structural parts according to customer’s requirements,such as dump truck boxes.wheel loader bucket.excavator chassis.excavator bucket.
crane booms and so on.The main products have exported to more than 40 countries and regions.

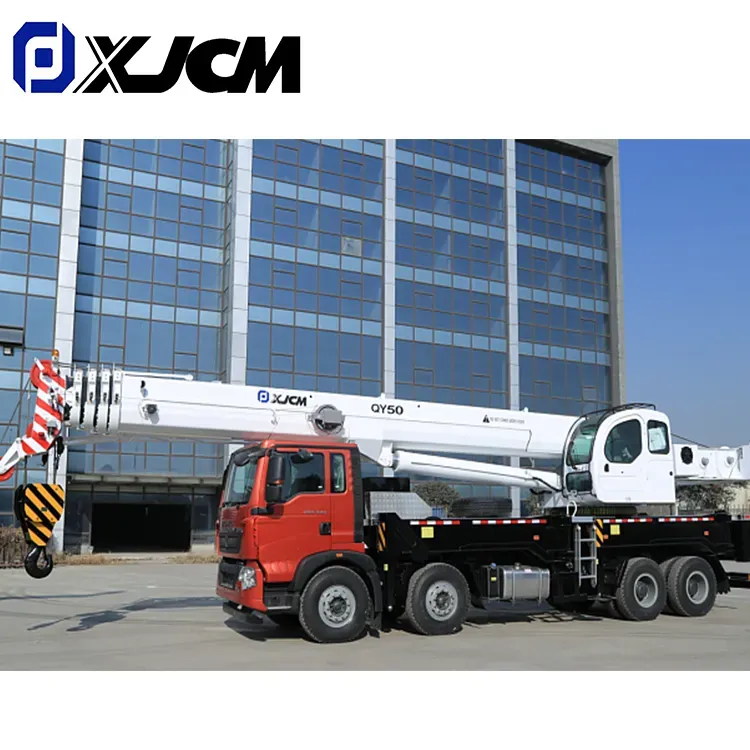

Introducing the Construction Machine Qy50: a 50-Ton Hydraulic Mobile Truck Mounted Crane, engineered to elevate your construction projects to new heights.
| Item | Unit | QY10 | QY12 | QY25 | QY25 | QY30 | QY30 |
| Boom arm section | / | 4 | 4 | 4 | 5 | 4 | 5 |
| Max.toal rated lifting load | t | 10 | 12 | 25 | 25 | 30 | 30 |
| Min.working radius | m | 3 | 3 | 3 | 3 | 3 | 3 |
| Engine power | Kw | 118 | 118 | 206 | 206 | 206 | 206 |
| speed | Km/h | 90 | 90 | 90 | 90 | 90 | 90 |
| Base boom length | m | 7.9-24.6 | 9.9-31.2 | 10.0-31 | 10.5-40 | 10.0-31 | 10.5-40 |
| Jib length | m | 5.4 | 5.4 | 7.3 | 7.3 | 7.3 | 7.3 |
| Max.lifting height | m | 30.5 | 36 | 38.3 | 48.2 | 38.3 | 48.2 |
| Alex | / | 2 | 2 | 3 | 3 | 3 | 3 |
| Item | Unit | QY35 | QY50 | QY50 | QY60 | QY70 | QY75 |
| Boom arm section | / | 5 | 4 | 5 | 5 | 5 | 5 |
| Max.toal rated lifting load | t | 35 | 50 | 50 | 60 | 70 | 75 |
| Min.working radius | m | 3 | 3 | 3 | 3 | 3 | 3 |
| Engine power | Kw | 206 | 248 | 248 | 248 | 248 | 248 |
| speed | Km/h | 90 | 110 | 110 | 110 | 110 | 110 |
| Base boom length | m | 10.5-40 | 10.25-32 | 11.3-42.5 | 11.6-43.6 | 11.6-43.6 | 11.6-43.6 |
| Jib length | m | 7.3 | 15 | 18.5 | 18.5 | 18.5 | 18.5 |
| Max.lifting height | m | 48..2 | 47.5 | 62 | 62 | 62 | 62 |
| Alex | / | 4 | 4 | 4 | 4 | 4 | 4 |
Discover the versatility of XJCM’s truck crane models, ranging from QY10 to QY100, including QY12, QY16, QY25, QY30, QY35, QY50, QY60, QY75, QY80, and QY100.
Please send us your inquiry today to uncover more detailed insights and specifications about our product offerings.
Product Description:1. XJCM’s truck crane boasts a renowned brand chassis, featuring a design that separates the driver cab and operator cab for enhanced ergonomics.
The crane stands out with its excellent mobility, exceptional reliability, and the convenience of top-tier after-sales service.
2. The entire crane design surpasses other models, optimizing raw material use while meeting stringent performance demands.
and satisfying performance requirements.

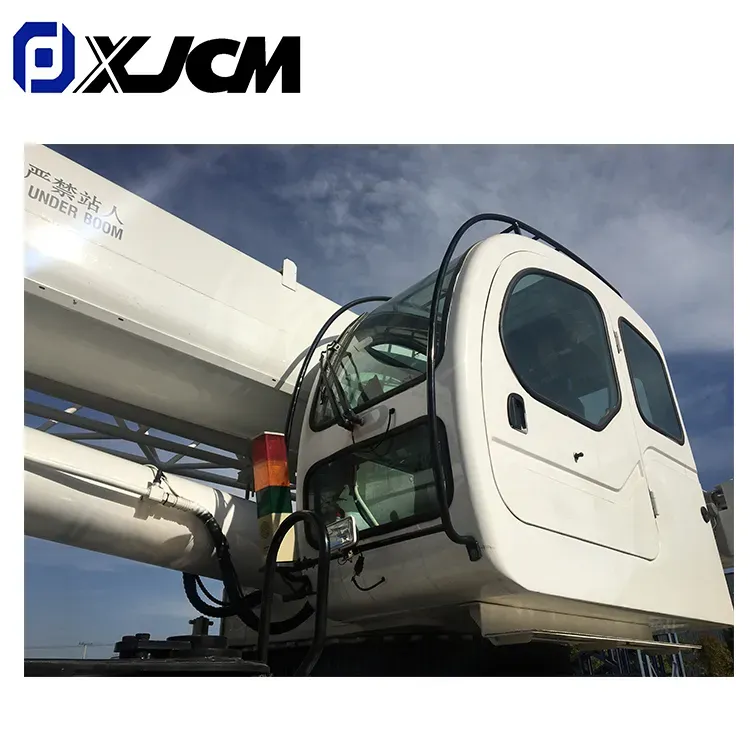

3. Equipped with a new-style cab, the crane features an adjustable suspension seat, air motive shed, and electron-hydraulic proportional
controls. Enjoy effortless operation with a push-button control, large color display, modern dashboard, and electric control H.
The electric control outrigger, engine, hydraulic torque converter gearbox, and brake steering drive axle ensure ease of use,
providing a safe and reliable operating experience.
