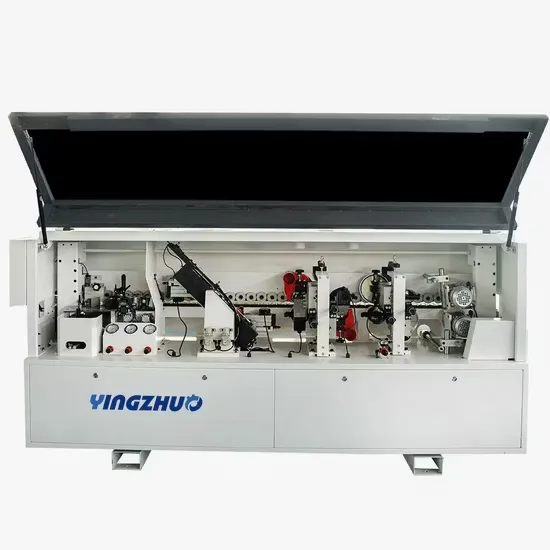

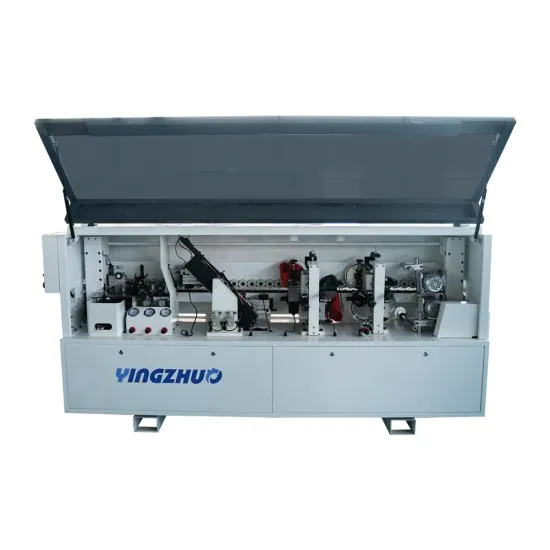

High-Speed 5 Functions Single Sided Wood Edgebander Automatic MDF Woodworking PVC Edge Banding Machine for Interiors Industry
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $5,290.00.$4,290.00Current price is: $4,290.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Panel Feeding Speed | 16 m/min |
| Edge Banding Thickness | 0.4 – 3 mm |
| Panel Thickness | 10 – 60 mm |
| Min. Panel Dimensions | Length: 120 mm / Width: $\ge$ 50 mm |
| Working Pressure | 0.6 – 0.8 MPa |
| Voltage | 220V / 380V / 415V |
| Customization | Available |
Product Description
The company’s motto is ”Customer first. Good will is the best policy” Accordingly. it pures high quality goods and customer service and has won the titles ”High Standard”,”Fine Quality”, ”Famous Brand” and ”Excellent Service” from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers.
| Model | YZ-S1 | YZ-S2 | YZ-S3 | YZ-S4 | YZ-SF |
| Feeding speed | 18-23m/min | 18-23m/min | 18-23m/min | 18-23m/min | 18-23m/min |
| Panel length | ≥80mm | ≥80mm | ≥80mm | ≥80mm | ≥80mm |
| Panel width | ≥50mm | ≥50mm | ≥50mm | ≥50mm | ≥50mm |
| Band width | 12-60mm | 12-60mm | 12-60mm | 12-60mm | 12-60mm |
| Band thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm |
| Weight | 650kg | 800kg | 1100kg | 1200kg | 1350kg |
| Total power | 7.5kw | 7.5kw | 14.5kw | 13.4kw | 17.5kw |
| Pneumatic pressure | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa | 0.6Mpa-0.8Mpa |
| Machine size | 2300*700*1250mm | 2800*750*1250mm | 3900*750*1250mm | 4300*750*1250mm | 5200*900*1500mm |
1. Solid welded body frame to ensure the stability of the machine.
2. Adopts double rails end-cutting unit, to achieve the rapid motion of the machine.
3. End-cutting and corner rounding units adopt SMC brand pneumatic components, to ensure the working performance.
4. PLC and touch screen as Delta brand from Taiwan.
High-Speed 5 Functions Single Sided Wood Edgebander Automatic MDF Woodworking PVC Edge Banding Machine for Interiors Industry

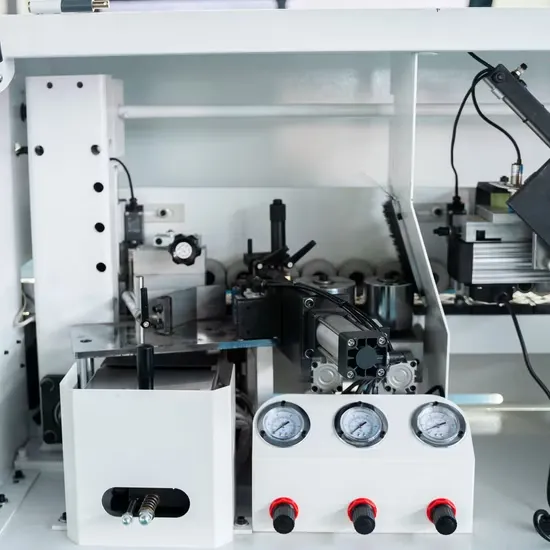

High efficiency EVA hot melt glue pot with fast heating design, ready for operation in 15 minutes. Spiral glue feeding system and adjustable glue roller ensure uniform glue coating, strong bonding and smooth edge banding. Tool-free quick change glue pot allows easy cleaning and fast glue or color change. Made of high hardness, wear-resistant materials with imported ball bearings, providing stable glue output, precise glue control and long service life.

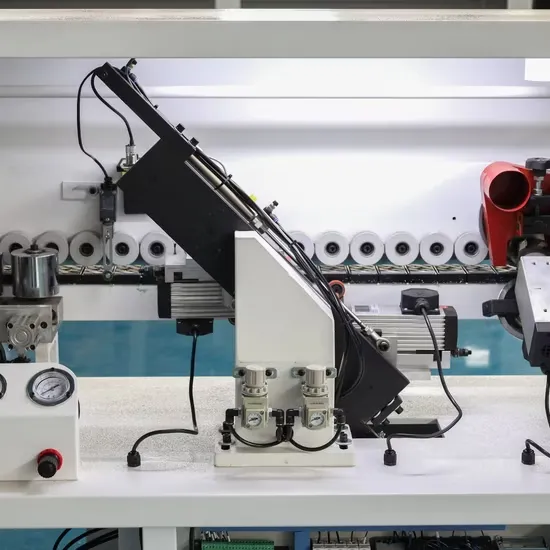

The end trimming system is designed to cut off the front and rear excess edge banding, making the edge banding flush with the workpiece panel. The unit runs on high-precision linear guides and features automatic profiling combined with a high-speed motor cutting structure, ensuring fast trimming, flat cutting surfaces and smooth finishing for edge banding applications.

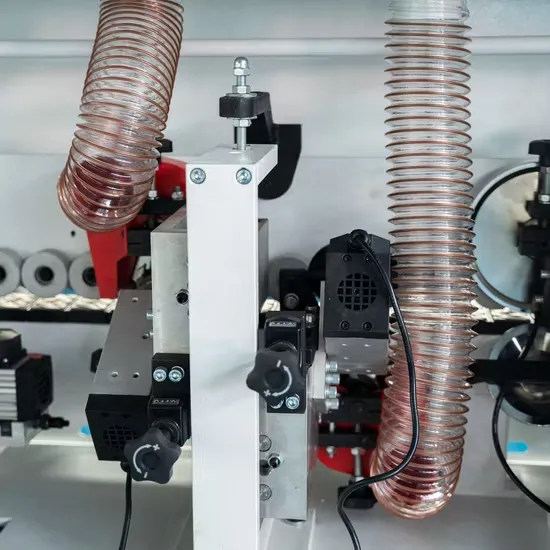

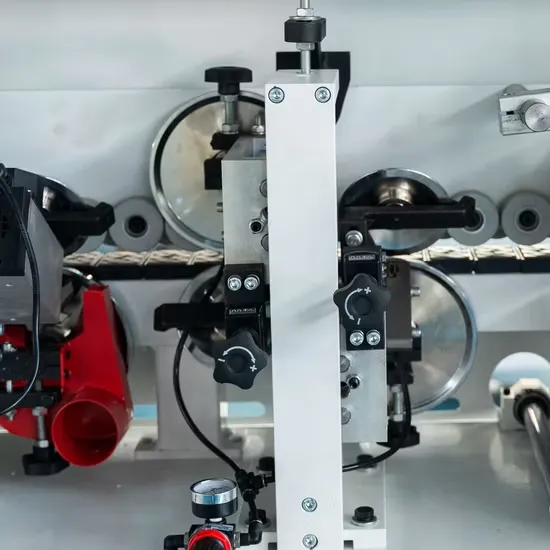

The fine trimming system is used to precisely trim excess edge banding on the upper and lower sides of the panel. It features automatic profiling combined with high-speed, high-frequency motors to ensure smooth and accurate trimming. Equipped with arc trimming knives, the unit delivers a clean, rounded finish on both the top and bottom edges, improving overall edge banding quality.
The scraping unit is designed for the edge banding machine to remove glue residue and fine marks left after trimming on the top and bottom edges. Widely used on automatic edgebander and edge bander machines, this unit effectively improves edge surface quality. With precise profiling structure, the scraper ensures smooth, clean edges and a perfect finishing result, enhancing the overall edge banding performance.

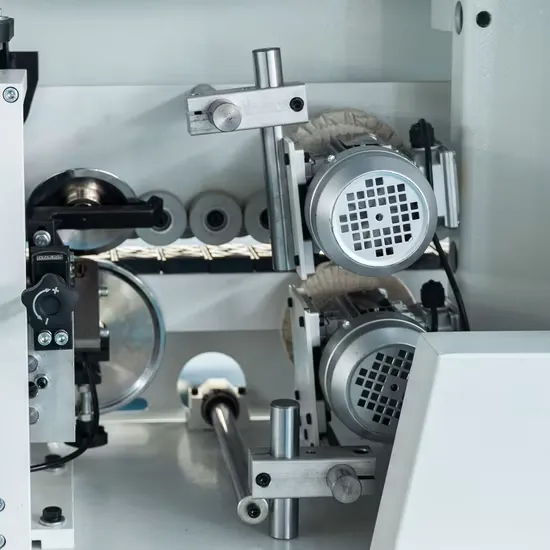

The buffing unit is designed for edge banding machines and edgebanders to polish the edge surface and remove residual glue after edge banding. It uses high-quality cotton buffing wheels to clean and polish the processed panel, making the edge banding end surface smoother and brighter. The upper polishing unit is stably fixed to the workpiece, ensuring consistent polishing results and high-quality edge finishing.
