High-End 1325 CNC Wood Router for Furniture, CNC Router Machine for Wood Acrylic Metal for Sale in Spain
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $15,950.00.$14,950.00Current price is: $14,950.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| X/Y/Z Working Area | 1,300 × 2,500 × 200 mm |
| Spindle Power | 9kW HQD Air-Cooled (Top Chinese Brand) |
| Spindle Speed | 0 – 18,000 RPM |
| Inverter | 11kW Fuling Inverter |
| X/Y Transmission | Taiwan J&T Helical Rack and Gear Box |
| Z Transmission | Taiwan PMI #25 Linear Bearing & TBI Ball Screw |
| Drive System | 850W Leadshine Servo Motor / 1kW Driver |
Product Description

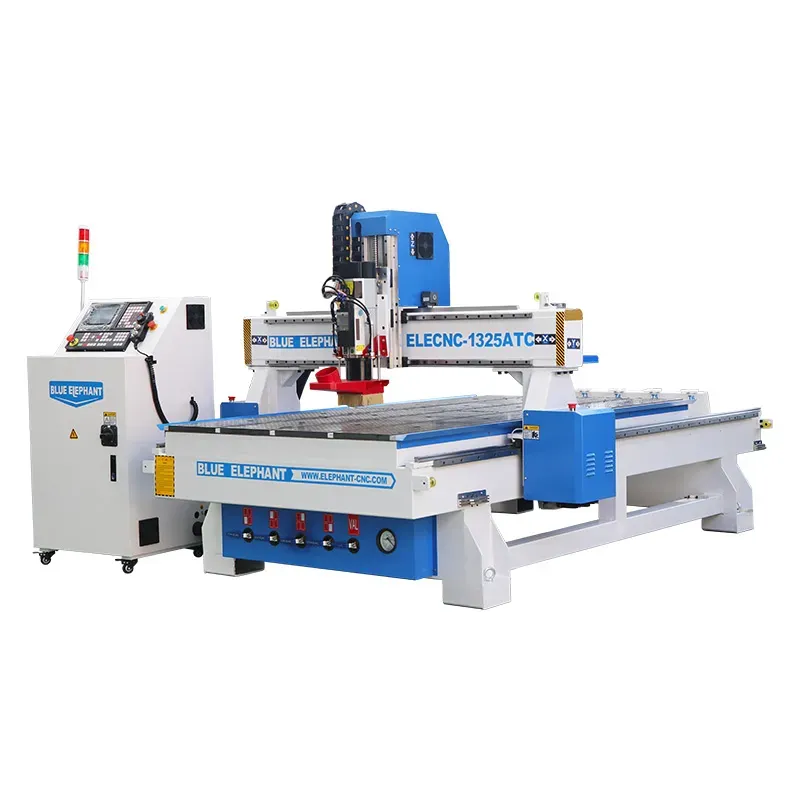

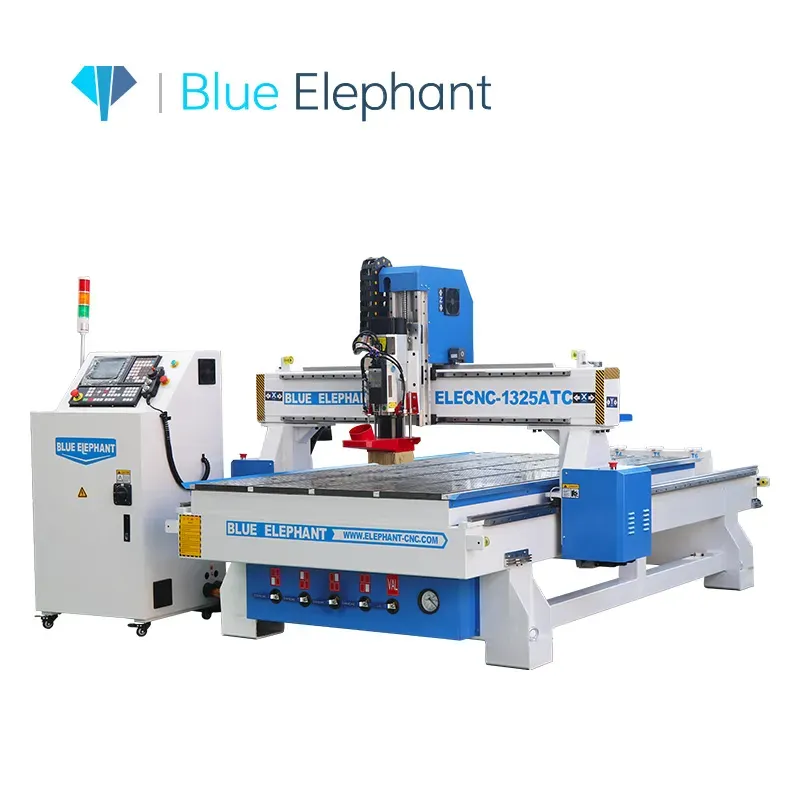

1325 CNC Wood Router for Furniture, CNC Router Machine for Wood Acrylic Metal
Features
With linear tool change, more economic. Best HQD air cooling spindle, high processing efficiency. Servo motor, high accuracy and processing speed. Suitable for cabinets, doors and other products with complicated processing technology, can also process artificial stone.
Technical parameters
| Description | Parameter |
| Lubrication system | 1.5L Auto oil lubrication system |
| X,Y,Z Working Area | 1300x2500x200mm |
| Structure | Industrial class square tube strong structure |
| Working voltage | 380V 3phase 60HZ |
| Table Surface | Aluminum T-slot &vacuum table |
| Spindle | Chinese top brand 9KW ATC HQD air-cooled spindle |
| Spindle speed | 0-18000rpm |
| X, Y Structure | Taiwan J &T Helical rack and gear box |
| Z Structure | Taiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505 |
| Motor and driver | 850W Leadshine servo motor and 1KW Servo driver |
| Inverter | 11KW Fuling inverter |
| Dust Collector | Complete 1.5KW new type dust collector |
| Control System | Taiwan LNC with MPG handle wheel |
| Vacuum pump | 7.5KW vacuum pump, two stage ,air-cooled , two impeller |
| Software Compatibility | Artcam Software |
| Tool sensor | 6pcs linear tool storage |
