High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging - Image 2
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging - Image 3
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging - Image 4
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging - Image 5
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging - Image 6

High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Model Single-Layer Film Blowing Machine
Film Width (Ranges) $300\text{–}800\text{ mm}$ to $1500\text{–}1800\text{ mm}$
Max Folding Width $2000\text{ mm}$
Film Thickness $0.01\text{ mm}$ – $0.1\text{ mm}$
Screw Diameter $120\text{ mm}$ (Standard)
Screw L/D Ratio $32:1$
Main Motor Power $18.5\text{ kW}$, $30\text{ kW}$, $45\text{ kW}$, $55\text{ kW}$
Output Capacity $30\text{ kg/H}$ – $170\text{ kg/H}$
Die Diameter $\phi 120\text{ mm}$ to $\phi 450\text{ mm}$
Total Weight $4\text{ t}$, $6.5\text{ t}$, $8\text{ t}$, $14\text{ t}$
Compliance CE, ISO9001:2008

Original price was: $57,000.00.Current price is: $56,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

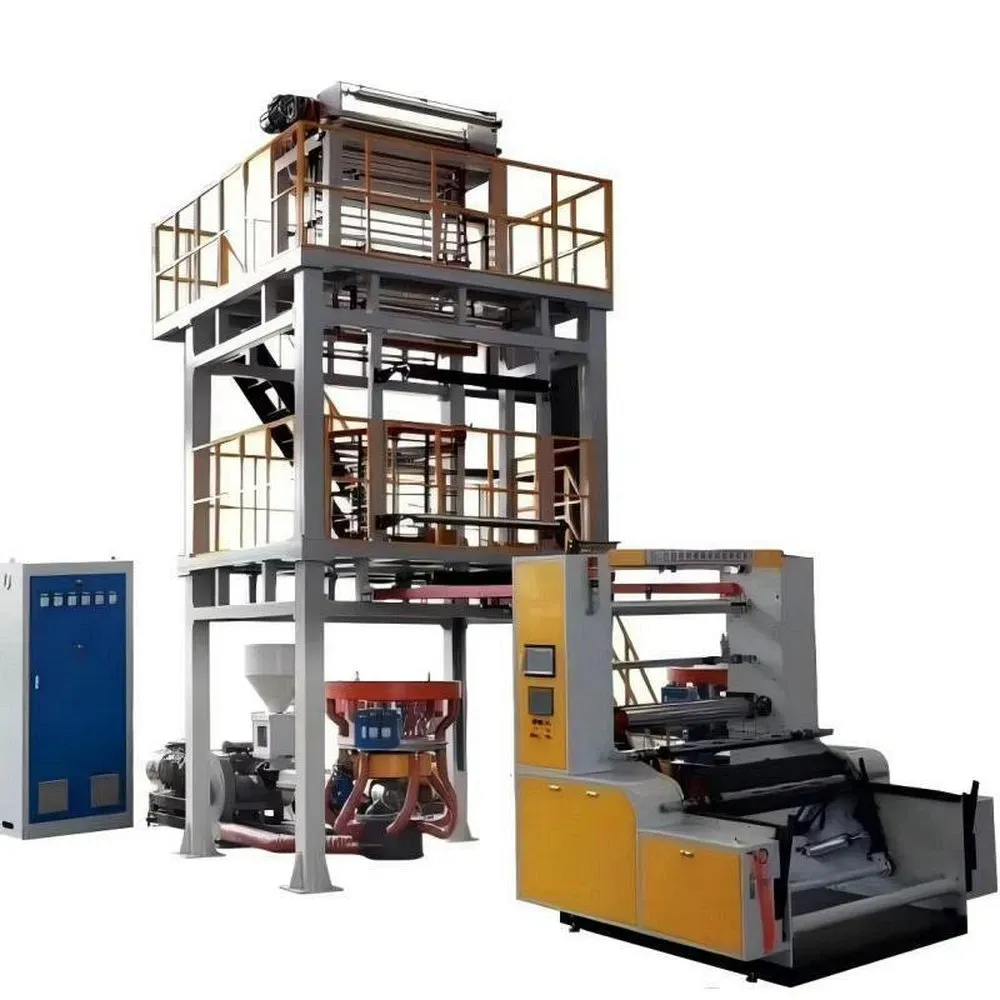

High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
This single layer blown film machine is widely adopted for basic PE film production with stable quality requirements.
Machine Overview
Overview & Applications
The single screw blown film machine is designed focus on high stability, easy operation, and excellent cost-effectiveness, making it an ideal choice for producing a wide range of films. It handles PE, LDPE, HDPE, LLDPE, and bio-based biodegradable materials with ease, and is widely applied in packaging, agricultural, and industrial film production.
Machine Features & Performance
Equipped with a proven single screw extrusion system, the machine offers a compact structure, stable operation, and easy maintenance for outstanding cost-effectiveness. Some models feature a twin-head design, allowing simultaneous production of two film types, increasing output while optimizing energy consumption and reducing production costs.
Market Position & Benefits
With low maintenance requirements, simple operation, and quick return on investment, the single screw blown film machine is an ideal solution for start-up projects and capacity expansion of small to medium-sized film manufacturers.
Brand
Longyao
Winder
Manual, Auto, Single Winder, Back To Back Winder, Up And Down Winder
Certification
CE, ISO. Our Machines Also Produce FDA Compliant Film.
When FDA Or EU Food Contact Compliant Raw Materials Are Used, The Machine Is Fully Capable Of Producing Films That Meet Food Contact Requirements.
Origin
Dalian, China
Delivery Time
From 20 Days To 4 Months. The Exact Delivery Time Depends On The Specific Equipment Model You Choose, As Different Models Have Different Lead Times.
However, We Will Make Every Effort To Ensure The Fastest Possible Delivery While Carefully Completing Every Detail, So That You Can Put The Equipment Into Operation As Soon As Possible.
Payment Terms
T/T, L/C, D/P, Etc
Key Components & Details
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging

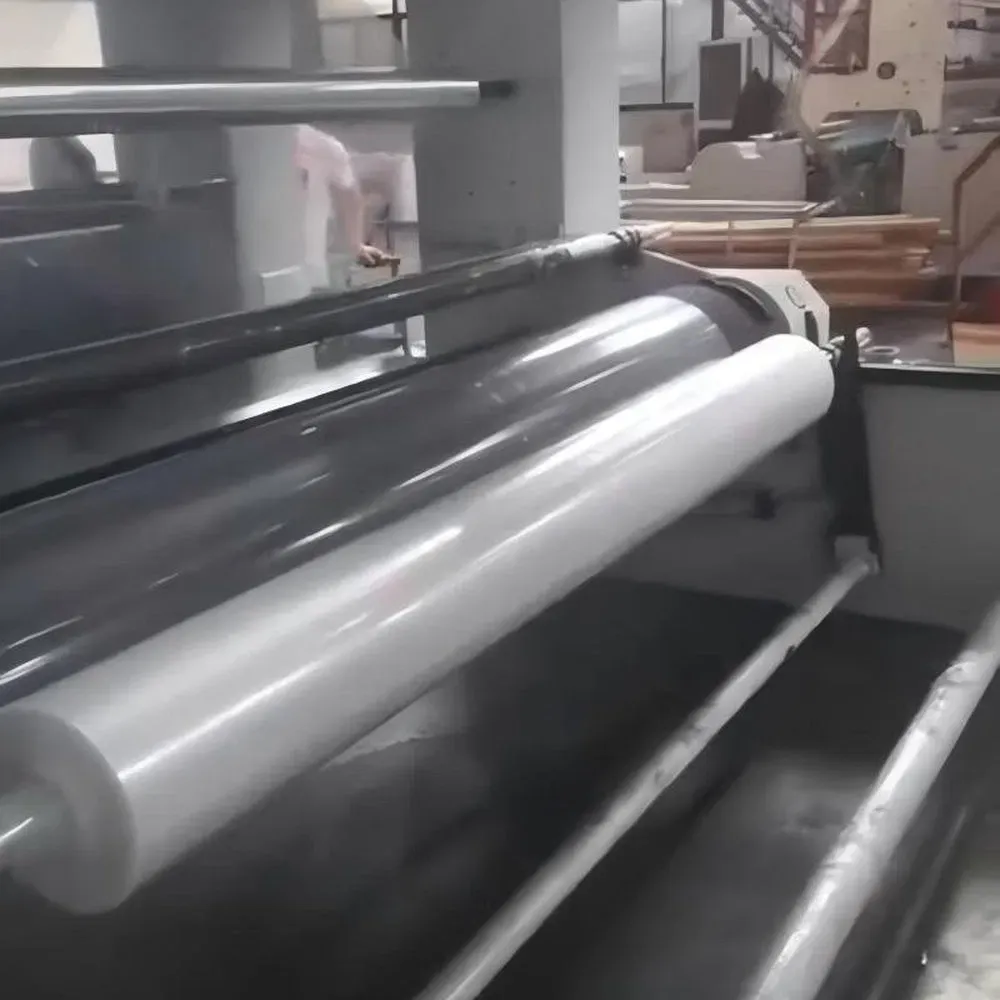

Both automatic and manual winders ensure neat and well-aligned rolls. This flexibility allows operators to choose the most suitable winding method, maintaining roll integrity and quality for diverse applications.
Extruder: Equipped with a robust and efficient extruder, capable of processing various thermoplastic resins to produce high-quality single-layer films with consistent melt flow.
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
Optimized Flow Channels: Smooth Melt Flow, No Dead Spots, Uniform Thickness.
Durable Die Material: Forged & Heat-Treated 40Cr Steel For Long-Term Stability.
Enhanced Surface: Mirror-Polished And Hard-Chrome Plated For Wear And Corrosion Resistance.
High Film Quality: Stable Melt Flow Ensures Smooth, Clear Film.
Gravimetric Is The Core Parameter For Balancing Film Quality And Cost. It Controls Thickness Uniformity And Physical Performance, Strictly Manages Raw Material Consumption To Reduce Costs, And Ensures Consistent Product Specifications
Specification
Specifications can be customized according to your production requirements.
Parameters For LDPE
Model
Φ45-850mm
Φ55-1300mm
Φ65-1600mm
Φ75-2000mm
Raw Material
LDPE, LLDPE,MLDPE, Filler, Recycled materials, EVA, EVOH, PLA, PBAT, etc
Film Width
300-800mm
700-1200mm
1000-1500mm
1500-1800mm
Film Thickness
0.01-0.1mm for LDPE
Screw Diameter
Φ45
Φ55
Φ65
Φ75
Screw L/D Ratio
32:1
32:1
32:1
32:1
Die Diameter
Φ120mm-Φ160mm
Φ200mm, Φ250mm
Φ350mm
Φ450mm
Main Motor
18.5kw
30kw
45kw
55kw
Gear Box
146#
180#
225#
250#
Output
30-50kg
70-100kg
100-120kg
120-170kg
Overall Dimensions
5.5x3x5-6m
8.5×3.8×6-7m
9.5×4.5x7m
12×5.5×10.5m
Weight
4T
6.5T
8T
14T
Parameters for HDPE
Model
Φ50-700mm
Φ55-1100mm
Φ65-1600mm
Raw Material
HDPE, Filler, Recycled materials, EVA, EVOH, PLA, PBAT, etc
Film Width
300-600mm
700-1000mm
1000-1500mm
Film Thickness
0.01-0.1mm for LDPE
Screw Diameter
Φ50
Φ55
Φ65
Screw L/D Ratio
32:1
32:1
32:1
Die Diameter
Φ50mm, Φ70mm
Φ70mm, Φ100mm
Φ100mm, Φ140mm
Main Motor
22kw
30kw
45kw
Gear Box
173#
180#
225#
Output
30-50kg
50-80kg
80-100kg
Overall Dimensions
5.5×2.8x5m
6.5×3.2x6m
7.5×4.5x7m
Weight
4T
5.5T
8T
Single Screw vs.ABC Blown Film Machine
Application Comparison
Comparison Dimension
Single Screw Blown Film Machine
Three-Layer Co-Extrusion Blown Film Machine
Market Orientation
Cost-driven, mass production
Performance-driven, premium products(Functional / High-end film production)
Machine Structure
Single-layer extrusion
A/B/C multi-layer co-extrusion
Main Strengths(Key Advantages)
Easy operation, reliable, fast ROI
(Stable operation, simple structure, cost-effective)
Tailored functions, superior film performance(Layer design flexibility, enhanced and combined performance)
Best for
Standard films with consistent demand
(Large-volume, long-term stable production)
Multi-functional, high value-added film production
Cost Focus
Lower equipment investment and operating cost
Higher initial investment with higher value per product
Single screw blown film machines focus on stability and cost efficiency, while three-layer co-extrusion machines are designed for functional flexibility and high value-added film production.
Optional
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
Manual Winder
Auto Winder
Two Rolls Wound Simultaneously On The Same Side
(For Saving Place)
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
High Capacity Single-Layer Film Blowing Extrusion Machine for Tea Packaging
