Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould
Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould - Image 2
Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould - Image 3
Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould - Image 4

Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Working Area 400 × 500 × 200 mm
Feeding Height 200 mm
Spindle Power 4.5 kW Water-Cooling Spindle
Spindle Speed 0 – 24,000 RPM
Inverter Fuling / Delta Inverter
Limit Switch Omron (High-Reliability)
Accuracy Tier High-Precision Industrial Milling

Original price was: $13,000.00.Current price is: $12,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description



                                         Remax 4050 cnc milling machine
We are manufacturer and can design the cnc router machine according to your requirements .
We will provide you with high-quality technical support and good after-sales service.

Product Description

Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for MouldHeavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould

Features:
1.Iron T-slot and  moving table, ideal for machining metal or wooden molds
2. Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 4.5kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the NK280B operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day’s workrements

Description Parameter
Model Remax-4050 CNC Milling Machine
X,Y,Z Working Area 400*500*200mm
X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
X,Y,Z Repositioning Accuracy ±0.01mm
Table Surface Iron T-slot and table moving
Frame cast by iron
X, Y,Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Z Structure HIWIN Rail Linear Guide and TBI Ball Screw
Max. Power Consumption (Without Spindle)  4.5Kw
Max. Rapid Travel Rate 20000mm/min
Max. Working Speed 10000mm/min
Spindle Power 4.5 kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors YASKAWA 750W servo driver and motor
Working Voltage AC220/380V, 50/60Hz
Command Language G Code
Operating System NK280B
Computer Interface USB
Flash Memory 128M(U Disk)
X,Y Resolution <0.01mm
Software Compatibility Type3/Ucancame V9 Software, (Option: Artcam Software)
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%
Inverter Fuling
Limit switch OMRON
Driver YASKAWA
Warranty 2 year, expect consumable parts
ER clamp holder ER 20



Detailed Photos

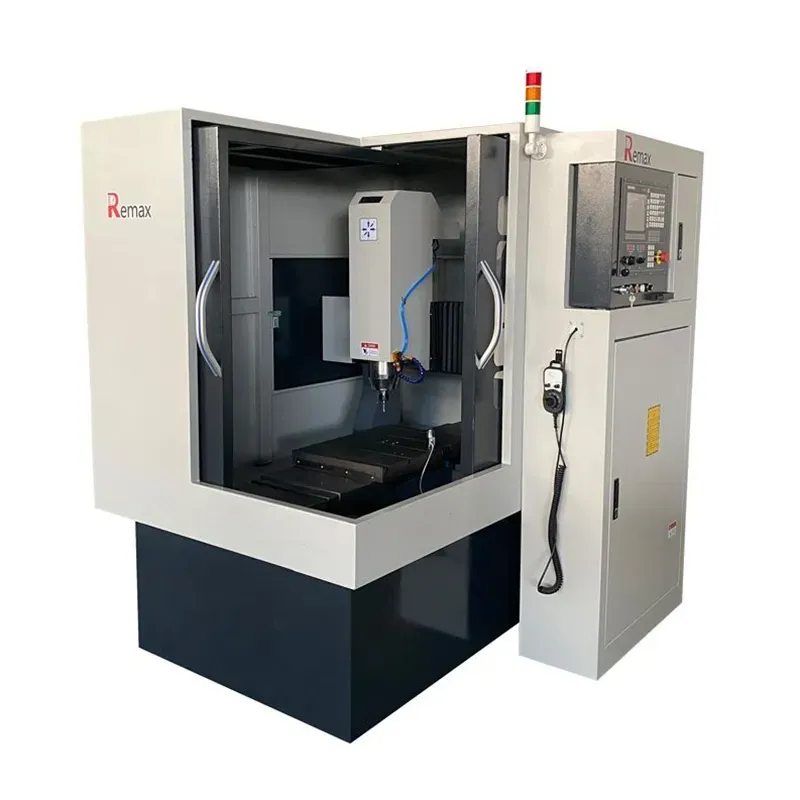

Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould

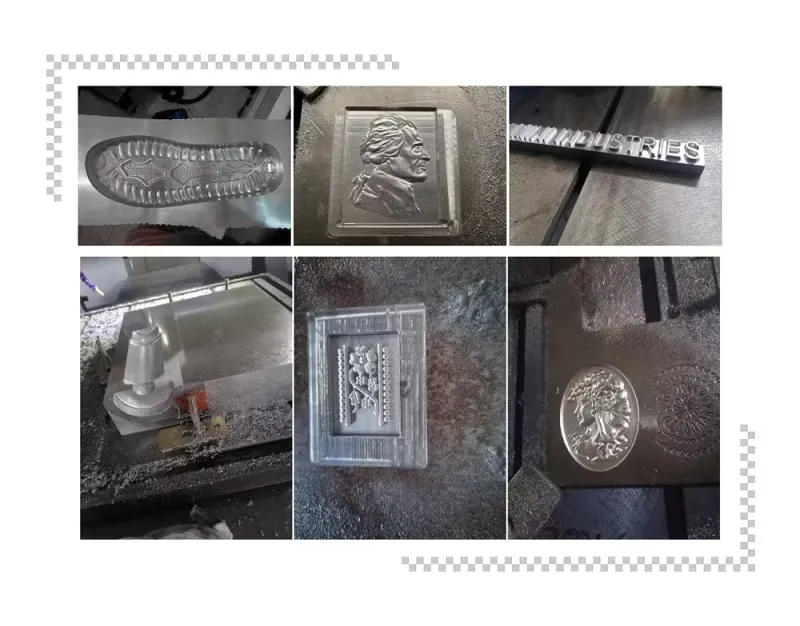

Sample



Application:

Mold industry: can carve copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheet, PVC pipe, wood and other non-metallic mold.

Heavy Structure 4050 CNC Milling Machine Metal Engraving Machine for MouldHeavy Structure 4050 CNC Milling Machine Metal Engraving Machine for Mould
