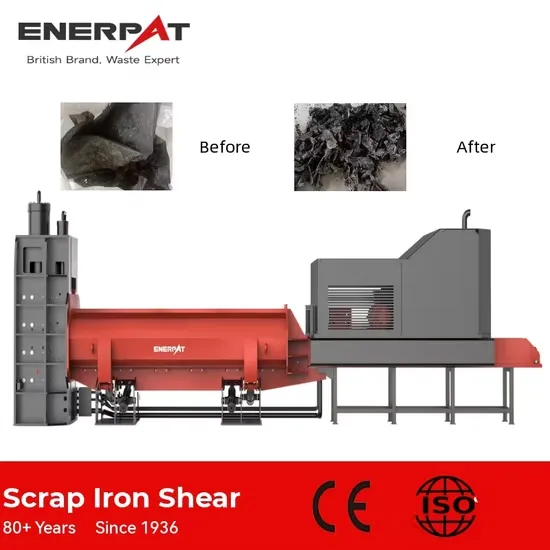

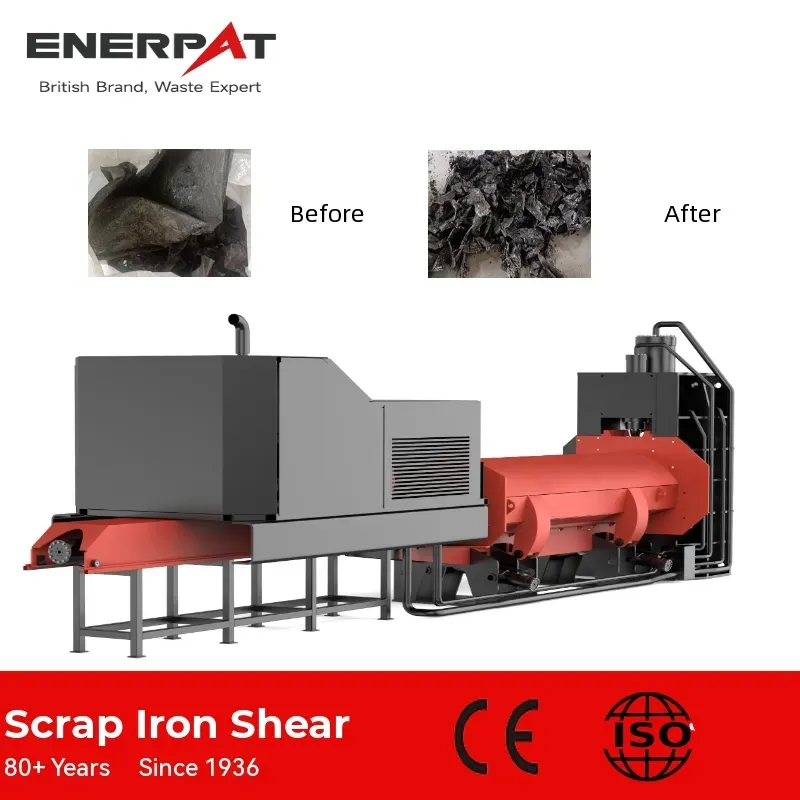

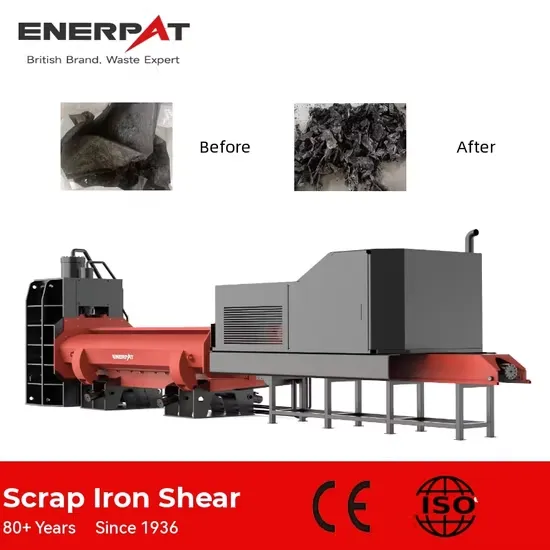

Heavy Duty CNC Hydraulic Scrap Metal Shear for Stainless Steel

Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

ENERPAT Easy Mobility and Installation iron Scrap Metal Baler Shear automatic metal shear

ENERPAT EMS-BS series iron scrap shear cutting automatic metal shear is an efficient metal processing machine that combines baling and cutting functions. It is primarily designed for handling scrap metals such as steel. Through steps like pre-compression, secondary compression, and cutting, it effectively compresses and packages scrap metal to meet various recycling and reuse requirements.

Easy Mobility & Installation automatic iron scrap shear: Compact, portable design with simplified setup for flexible deployment in scrap yards or recycling facilities.

Heavy Duty CNC Hydraulic Scrap Metal Shear for Stainless Steel Enerpat EMS-BS Series automatic iron scrap shear: Integrated Metal Shear & Baling Solution for Scrap Metal Processing

The Enerpat EMS-BS Series automatic iron scrap shear Machine metal cutting machine combines metal shear and baling functions into one robust system, designed for efficiently processing scrap steel, non-ferrous metals, and other recyclable materials.

How It Works:

Loading & Pre-Compression: iron Scrap metal is loaded into the chamber, and the door is sealed for initial compression.

Side Compression: Side hydraulic cylinders drive compression plates to compact the metal into dense bales.

Bale Ejection & Metal Shear Action: The pushing cylinder ejects the compressed bale, while the heavy-duty metal shear blade (powered by shear cylinders) cleanly cuts the bale to desired lengths.

Cyclic Operation: The shear blade retracts, the pusher advances further, and the metal shear process repeats until all material is processed.

Composition and Structure of automatic metal shear

Product Features:

High-Strength Stable Operation: Engineered for uninterrupted metal shear performance under heavy loads, ensuring durability and minimal vibration.

Space Saving: Effectively compresses and packages scrap metal, conserving storage space for easier transportation.

* Increased Recycling Rates: Achieves precise cutting to enhance the recycling rate of scrap metal, minimizing waste.

* Operational Safety: The design of the Enerpat scrap metal baler shear prioritizes ease of use, ensuring operator safety.

* Eco-Friendly and Energy Efficient: Incorporates advanced energy-saving technology to reduce energy consumption and comply with environmental standards.

Operating Principle

Pre-Compression Stage

After scrap metals like steel are placed in the feed box, the door is closed to initiate pre-compression.

Secondary Compression Stage

The side pressure cylinder advances the piston to push the sliding block for secondary compression, shaping the scrap metal.

Cutting Stage

The cutting cylinder activates the blade to move downward, cutting the compressed scrap metal into the desired length.

PRODUCT FEATURES

Box Design

*Integrated Compact Design: The machine features a compact, unified design.

*High-Strength Manganese Steel Housing: Welded manganese steel provides a sturdy and durable structure.

*Smooth and High-Strength Operation: Ensures stable operation with robust performance.

*Easy Mobility and Installation: Convenient to move and quick to install.

Blade Structure

*High-Strength Wear-Resistant Blades: Made of alloy steel, these blades offer exceptional abrasion resistance. *Symmetrical Reversible Design: Each blade has four interchangeable edges, extending its lifespan. *Superior Strength and Toughness: Blades feature high strength and excellent toughness. *Adjustable Blade Angle: The blade angle can be adjusted for flexible applications.

Hydraulic Cylinder Design

* Integrated Hydraulic Cylinder: Molded as a single unit, providing high strength for high-pressure operations. * Enhanced Compression Performance: Increased compression force with exceptional performance. * Baosteel Hollow Round Design: Uniform wall thickness ensures strong integrity and prevents oil leaks. * Premium Hydraulic Components: Features components from reputable brands like Rexroth and Parker, ensuring long life and high efficiency.

.

PLC Electrical System

* Siemens/ PLC System: Provides smart control with a one-touch activation. * One-Touch Operation Interface: Simple and labor-saving with a touch screen and buttons. *Flexible Operating Modes: Easily switch between manual and automatic operation. * Intelligent Programming Optimization: Reduces idle strokes, enhancing work efficiency.

Hydraulic System

* Cartridge Valve Group: High flow rate with significant speed enhancement. * H-Type Interface: Tapered connection for leak prevention and stability. * Hallite Seals: High-quality British seals, ensuring safety and durability.

Technical Data Sheet

MODEL	Shear Force (t)	System Pressure (MPa)	Feed Opening Size (mm)	Shear Blade Length (mm)
EMS-BS6360-9	630	32	6000×2500	900
MODEL	Cutting Speed (min)	Total Power (kW)	Equipment Dimensions (mm)	Equipment Weight (t)
EMS-BS6360-9	3-4 times	2×90	14800×2500 ×5100	85
