HD260L Injection Molding Machine Office Supply Organizers
HD260L Injection Molding Machine Office Supply Organizers - Image 2
HD260L Injection Molding Machine Office Supply Organizers - Image 3
HD260L Injection Molding Machine Office Supply Organizers - Image 4
HD260L Injection Molding Machine Office Supply Organizers - Image 5

HD260L Injection Molding Machine Office Supply Organizers

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Original price was: $769,200.00.Current price is: $768,200.00.


Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature Details
Model HD 260L
Structure Horizontal (Tube Head Injection)
Plasticizing Method Screw Type
Clamping Method Hydraulic & Mechanical
Clamping Force $3300\text{ T}$
Processed Materials PP, PC, ABS, PET, PVC, HDPE, PPR, MLLDPE
Automation Grade Fully Automatic & Computerized
Certifications CE, ISO9001:2008, GMP, QS
Core Components High-Quality Bearing, Motor, Pressure Vessel
HS Code 8477101090
Origin Ningbo, China

Product Description

pet preform making machine plastic mold making machine
HDL Servo Energy-Saving Series:

>>>Elbow Oil Bushing design, and equipped with a centralized automatic lubrication system to make the joint parts better lubrication effect, improve the joint service life, a new frame structure, making the fuselage more reasonable force, the rigidity of the wall is effectively strengthened by increasing the strength of the large column.



Equipped with world-class brand hydraulic components, hydraulic system smooth and reliable, greatly improve efficiency at the same time will heat control smaller.

_____________________________________________________________________________________________________________________

Basic Information:

HD260L Injection Molding Machine Office Supply Organizers
Number Item
HD3300L
Category
HDLSeries
OEM
Available
Warranty
1 Year
Factory
Yes
Model NO HD3300L Computerized Computerized
Certification CE, ISO9001:2008 Plastic Processed PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLD
Style Horizontal Packaging Details wooden pallet
Plastic Type Thermoplastic Machine Type Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition New Energy Saving Servo Energy Saving
Brand Name Haida Production Capacity 100 Set/Sets per Month
After-sales Service Provided Engineers available to service machinery overseas Warranty of core components 1 year
Place of Origin Zhejiang,Ningbo,China Local Service Location Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos

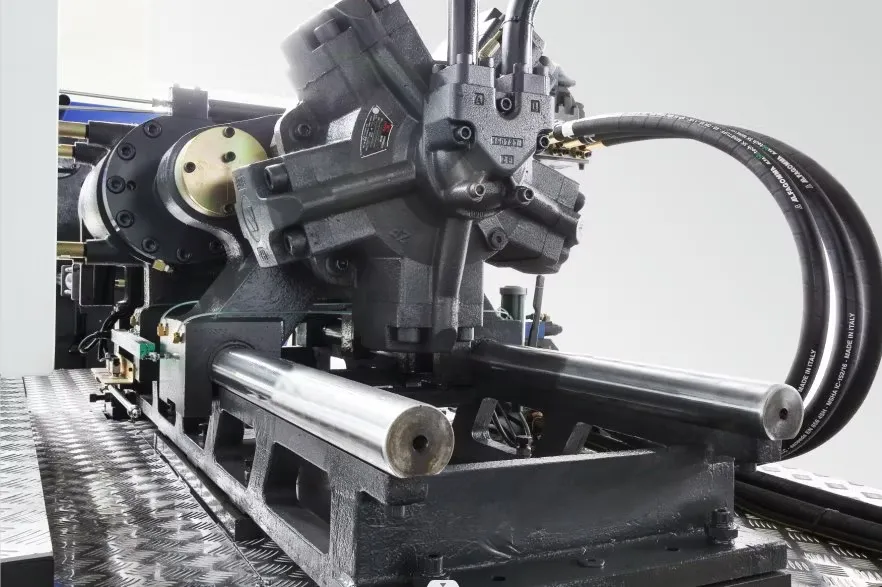

INJECTION SYSTEM&PLC SYSTEM:

The injection unit optimally designed for injection molding provides higher accuracy and ensures greater stability. The screw length-diameter ratio is more reasonable, the plasticizing ability is stronger, and may match the Special Engineering Plastic Screw, guarantees the product quality optimization. The Integral Guide Rod Seat is novel and beautiful, strong and reliable, and the injection is faster, more stable and more compact. Modular design, fully meet the requirements of personalized processing technology, to provide customers with more choices.
HD260L Injection Molding Machine Office Supply Organizers
HD260L Injection Molding Machine Office Supply Organizers
HD260L Injection Molding Machine Office Supply Organizers
HD260L Injection Molding Machine Office Supply Organizers

__________________________________________________________________________________________________________________

CLAMPING SYSTEM:

Adopting the international advanced concept, changing the mechanical properties of the clamping mechanism, significantly reducing the deformation of the template, and effectively improving the precision of the products. The distance between the pull rods is larger, and the mould shifting stroke is longer. Large ejection space, standard thimble forced reset mechanism, to meet the requirements of special mold forced reset. The platform shortens the forming cycle, improves the production efficiency, various hydraulic ejection modes, special processing of the pull rod, and the strength is reliable.
HD260L Injection Molding Machine Office Supply Organizers

—————————————————————————
HYDRAULIC SYSTEM:

HD260L Injection Molding Machine Office Supply Organizers

1, The standard equipped with servo energy-saving pump system, using high-performance servo motor and famous oil pump, with high-quality and reliable driver, perfect to achieve high energy-saving, high precision, high response, low noise, low oil temperature and other excellent characteristics, the utility model has the advantages of compact structure, good self-priming property of the oil pump and little influence by the work

2, Equipped with world-class brand hydraulic components, reasonable oil arrangements, smooth and reliable operation, significantly improve the efficiency of the heat will be smaller control;

3, Equipped with self-sealing oil filter, machine maintenance easy;

4, Eccording to customer demand, flexible matching and installation of a variety of special functions.

____________________________________________________________________________________________________________________

CONTROL SYSTEM:

Water-proof and dust-proof sealed electric box is safe and reliable; the software functions are more powerful and can meet the needs of various mould forming processes; the Internet management system is reserved to realize the remote real-time monitoring and maintenance diagnosis of each injection molding machine, reasonable arrangement of production and other advanced management
HD260L Injection Molding Machine Office Supply Organizers



Product Parameters

ITEM UNIT DATA
Injection Unit Screw Diameter mm 220
Screw L/D Ratio L/D 20
Injection Volume cm3 44095
Shot Weight g 40126
Injection Pressure Mpa 137
Clamping Unit Clamping Force KN 33000
Opening Stroke mm 2150
Mould Thickness(Min-Max) mm 800-1950
Space Between Tie-Bars mm 2160×1950
Hydraulic Ejection KN 814
Ejector Stroke mm 500
General Motor Power KW 55×4
Heater KW 150
System Pressure Mpa  16
Machine Dimension m 22.0×4.20×3.90
Machine Weight T 230
Mould Orientation Ring Diameter mm  Φ315
Nozzle Radius mm  SR30

Application

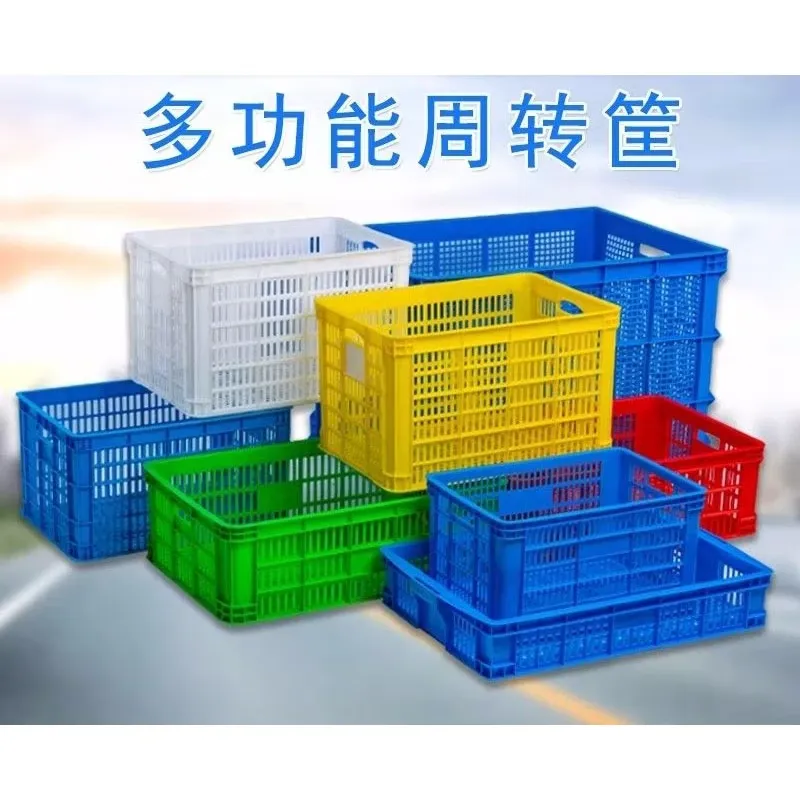

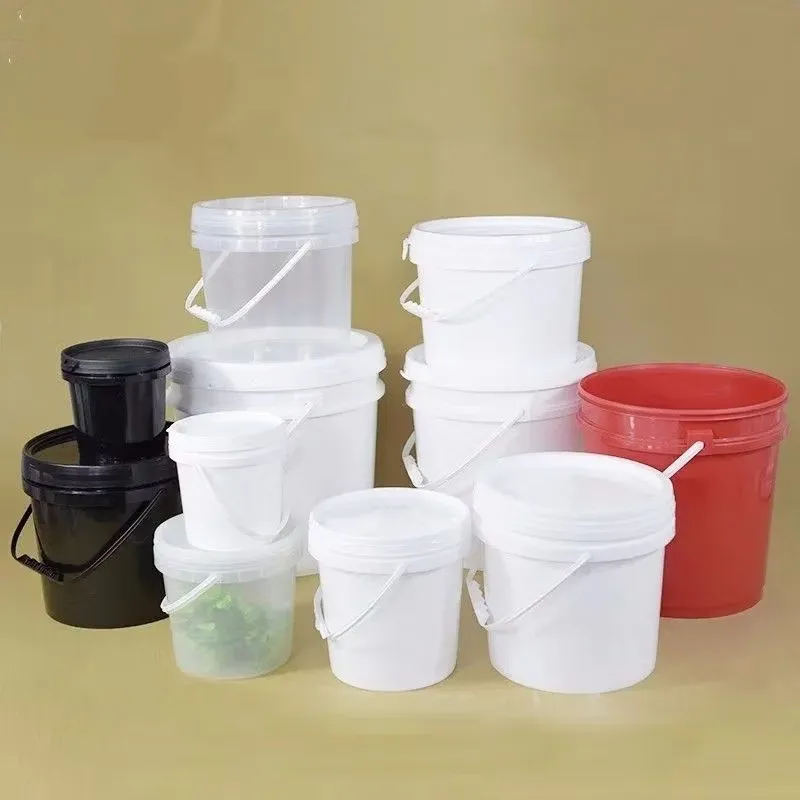

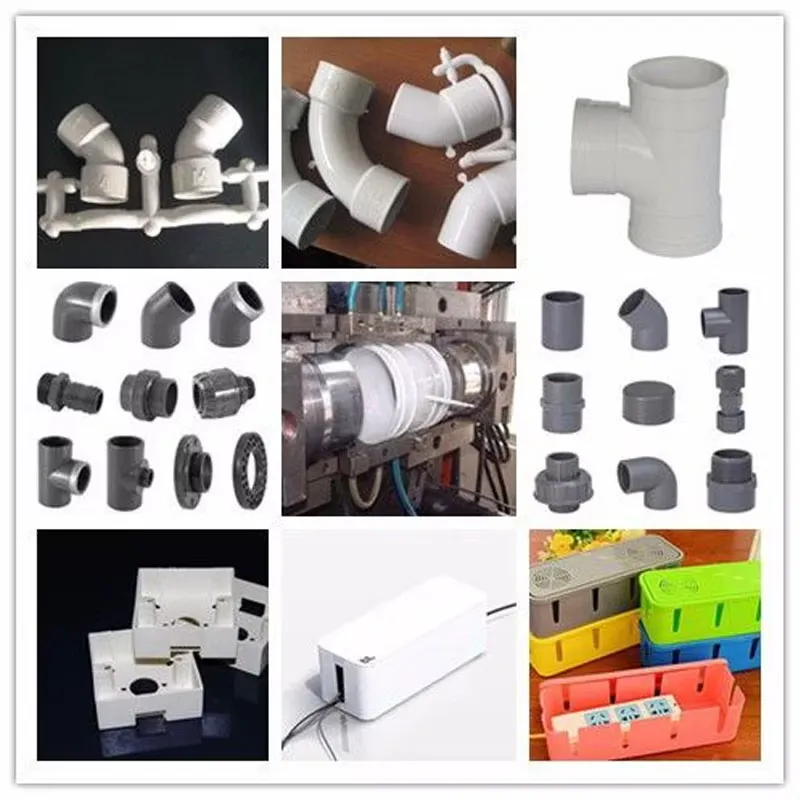

APPLICATION FIELD:

HD260L Injection Molding Machine Office Supply Organizers
HD260L Injection Molding Machine Office Supply Organizers

HD260L Injection Molding Machine Office Supply OrganizersHD260L Injection Molding Machine Office Supply OrganizersHD260L Injection Molding Machine Office Supply Organizers
