Fully Automatic Hydraulic Pressure Plastic Pellet PP Roll Extruder Machine for Thermoforming
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $106,000.00.$105,000.00Current price is: $105,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model | TJ-750C |
| Screw Type | Single-Screw (Full Intermeshing) |
| Screw Diameter | $125\text{ mm}$ |
| Screw L/D Ratio | $35:1$ |
| Output Capacity | $400\text{ kg/Hour}$ |
| Max Sheet Width | $750\text{ mm}$ |
| Thickness Range | $0.3\text{–}2\text{ mm}$ |
| Screw Material | 38CrMoAl (Nitrided Steel) |
| Mandrel Material | 40CrNiMo |

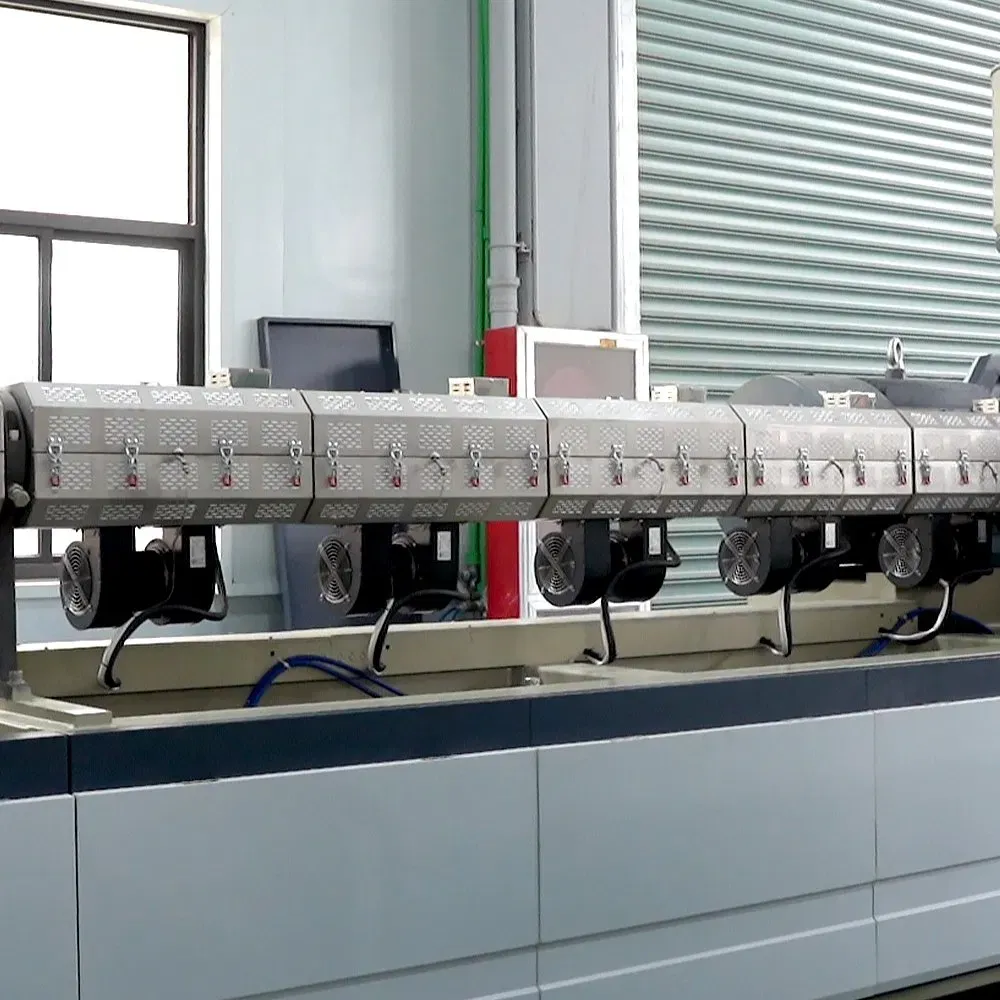

| Heating Method | Mesh Ceramic Air-Cooled Heating |
| Dimensions (LWH) | $15.4 \times 3.6 \times 2.9 \text{ Meters}$ |
| HS Code | 8477409000 |
Product Description
|
Technical Parameters
|
||
|
Model
|
TJ-750C
|
TJ-750D
|
|
Suitable Sheet
|
PP,PS
|
|
|
Sheet Width (Max.)
|
750mm
|
770mm
|
|
Sheet Thickness
|
0.3-2.0mm
|
|
|
Screw Rod Dia
|
125mm
|
110mm
|
|
Screw L/D Ratio
|
35:1
|
32:1
|
|
Max. Output
|
400kg/hour
|
240kg/hour
|
|
Main Motor Power
|
132kw
|
75kw
|
|
Power Supply
|
AC 380V,50Hz, Three-phase, Four-wire
|
|
|
Dimension
|
L15388*W3615*H2900mm
|
L14000*W2600*H1800mm
|
|
Weight
|
About 12T
|
About 8T
|
APPLICATION AREA

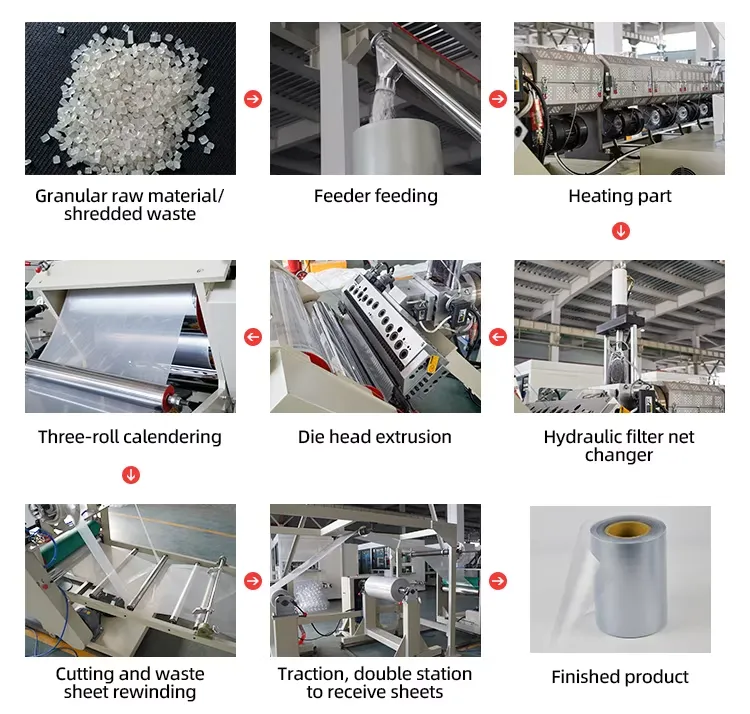

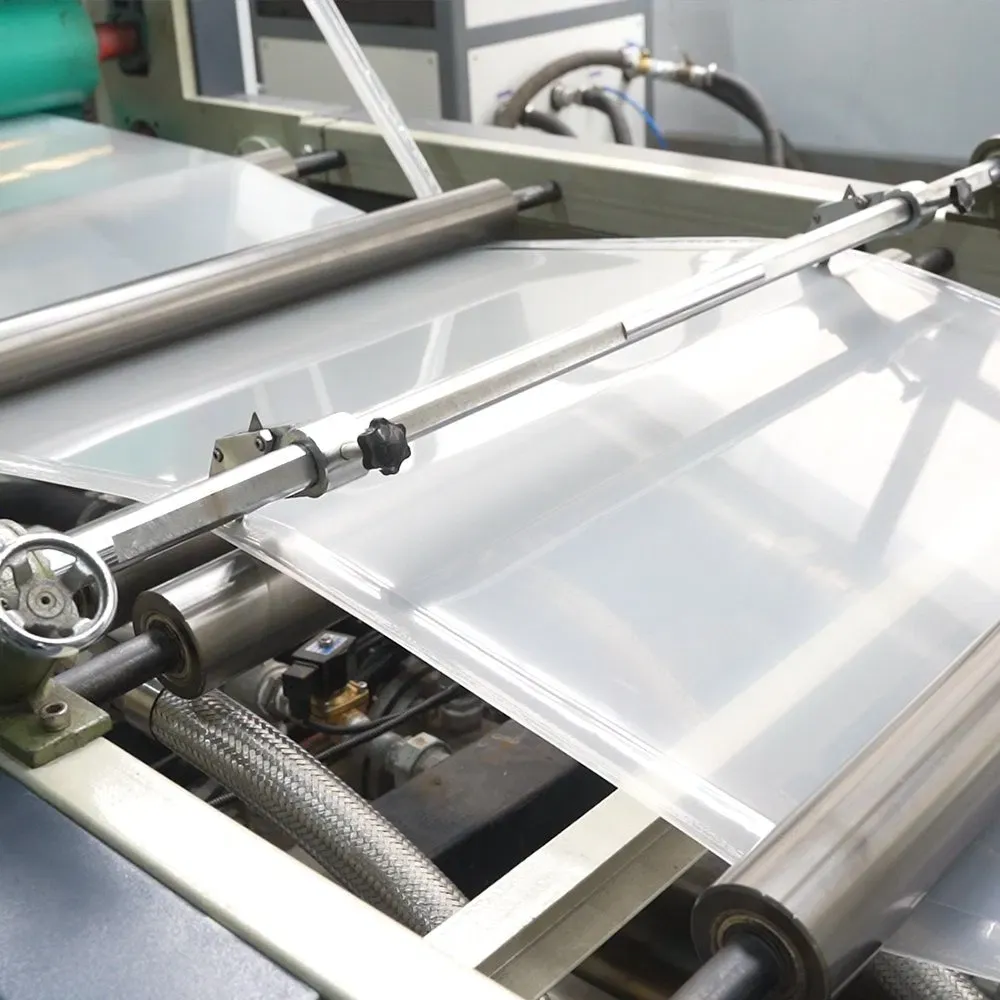

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality specially-treated. Low resistanceforce in die head extruding channel makes sheet thickness evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to change and install net changer with the hydraulic pressure unit, no need to stop machine. The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for producing plastic products by plastic thermoforming machines, like cups, food container, trays, dishes, bowls, lids, etc.
SUMMARY OF MACHINE
