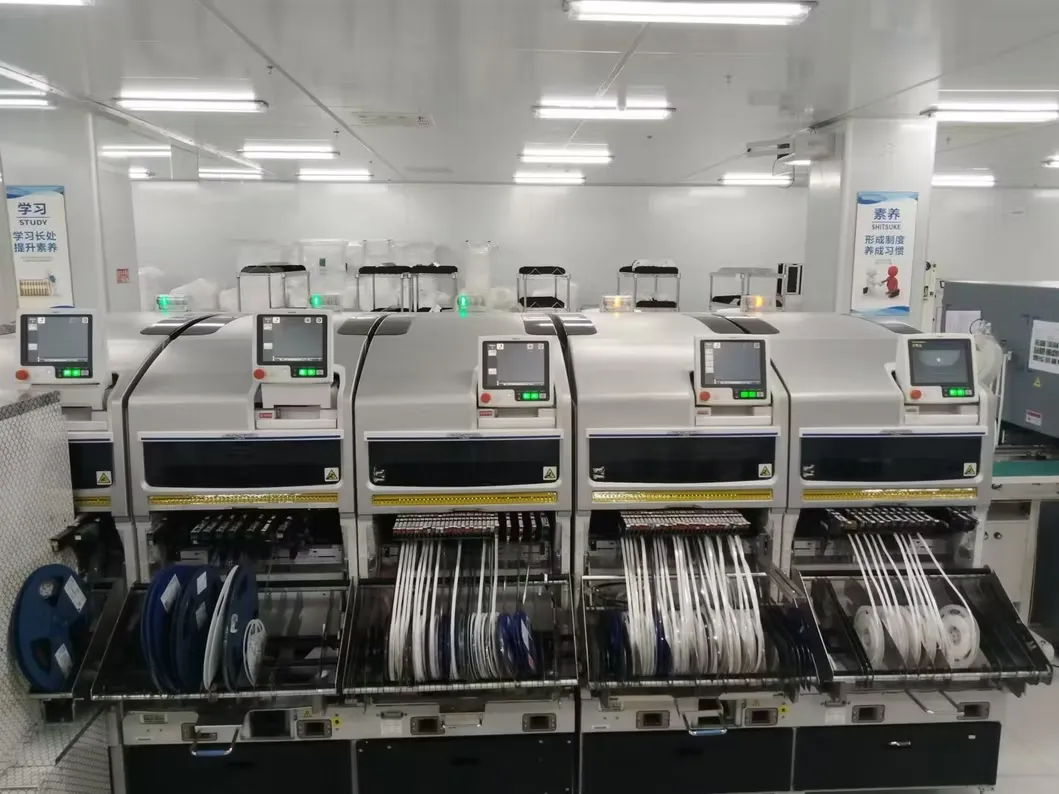

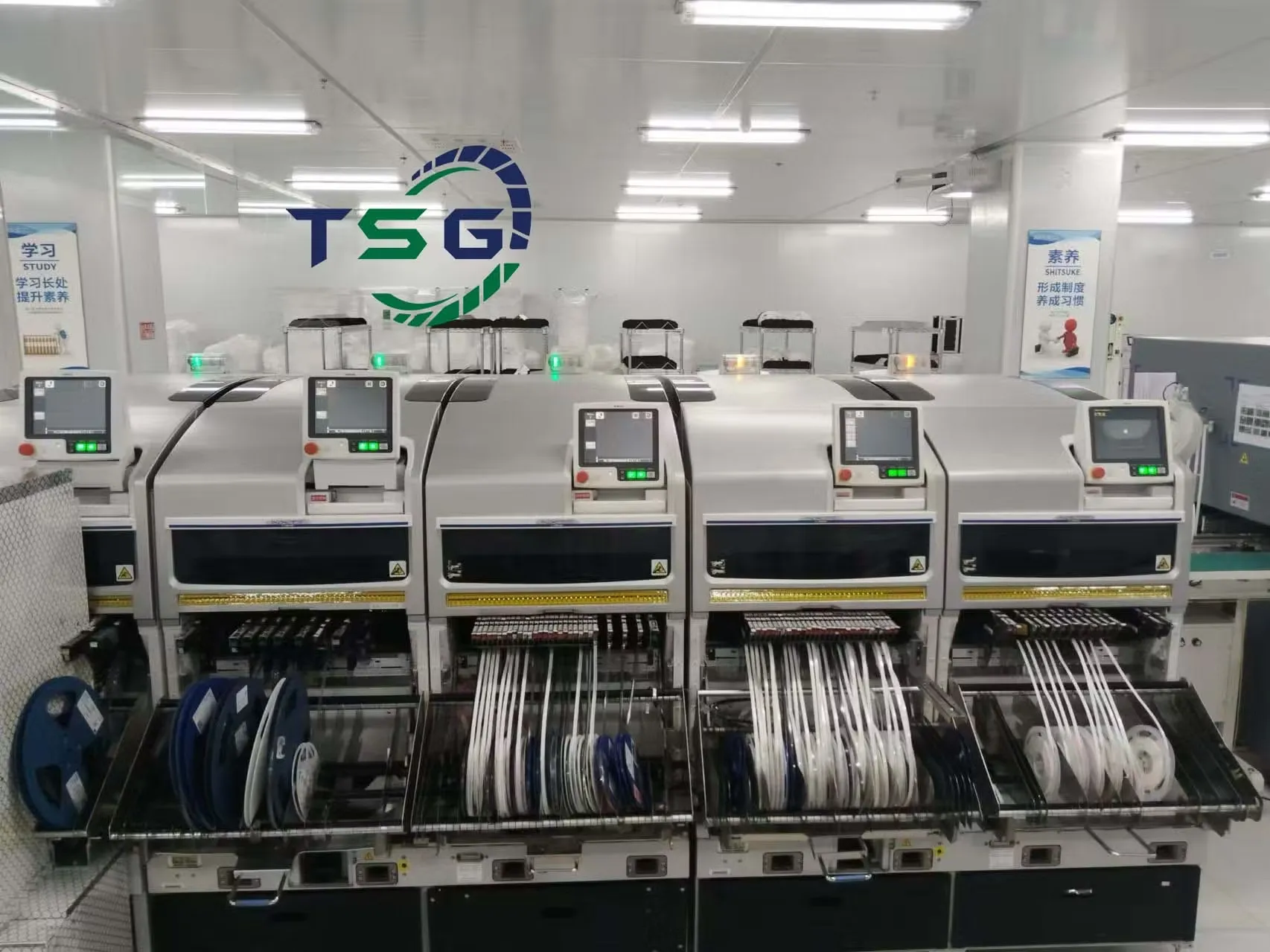

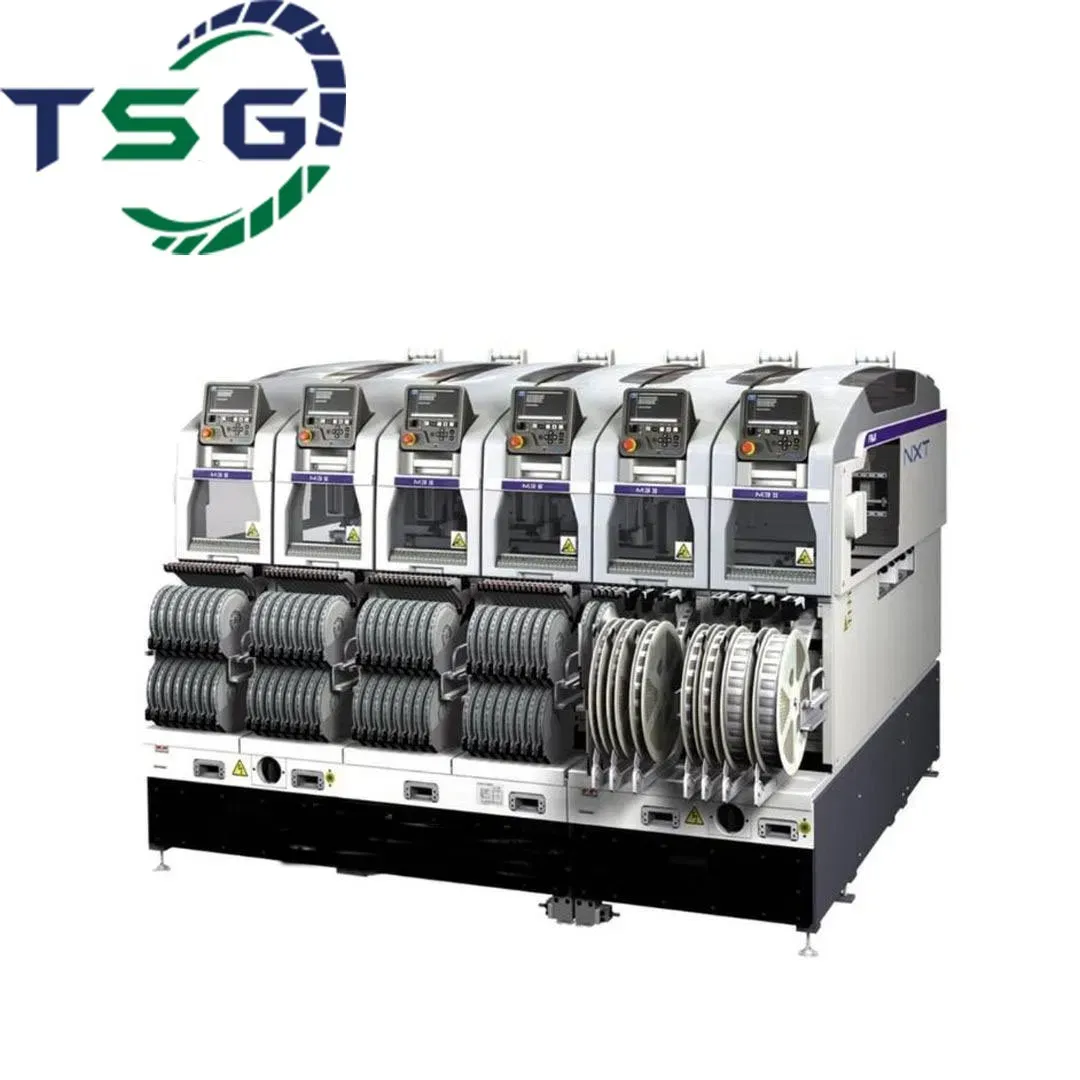

FUJI Nxt III M3 SMT Pick and Place Machine High-Speed LED PCB Chip Mounter for Precision Electronics Assembly in SMT Production Lines
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $56,000.00.$55,000.00Current price is: $55,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model | NXT III M3 (Module Type) |
| Placement Speed | Up to 96,000 CPH |
| Placement Accuracy | $\pm 0.05 \text{ mm}$ |
| Component Size Range | $0201 \text{ (0.25} \times \text{0.125mm)} \text{ to } 100 \times 100 \text{ mm}$ |
| Max Component Height | $30 \text{ mm}$ |
| Max PCB Size | $510 \times 460 \text{ mm}$ |
| Feeder Capacity | $120+$ Feeders (per base) |
| Power Consumption | $4.5 \text{ kW}$ (Operation Mode) |
| Certifications | CCC, PSE, RoHS, ISO |
| Origin | Japan |
Product Description
The FUJI NXT III M3 is a state-of-the-art SMT pick-and-place machine, designed to deliver exceptional performance, high-speed placement, and precision accuracy for the LED PCB chip mounting process in Surface-Mount Technology (SMT) production lines. Ideal for manufacturers of LED lighting, consumer electronics, and automotive components, this machine supports an extensive range of components, from small chips to large devices, and ensures superior placement accuracy and flexibility in high-volume production environments.
Engineered with advanced vision systems, quick-change feeders, and intelligent software, the FUJI NXT III M3 optimizes productivity by reducing downtime and ensuring seamless integration with other SMT production equipment. Whether you’re working with high-density boards, complex PCB layouts, or small components like resistors and capacitors, this machine delivers outstanding throughput and placement precision.
This model integrates perfectly within the SMT production line, offering speed, flexibility, and reliability for manufacturers who require consistent quality and high-volume output.
Key attributes
| Machine Mode | NXT III M3 |
| Feeder Capacity | Up to 100+ feeders |
| Machinery Test Report | Provided |
| Core Components | Motor |
| Place of Origin | Japan |
| Brand Name | FUJI |
Product Parameters:
- Model: FUJI NXT III M3
- Placement Speed: Up to 60,000 CPH (components per hour)
- Placement Accuracy: ±0.05mm
- Component Size Range: From 0201 to 74mm x 74mm
- Maximum PCB Size: 510mm x 460mm
- Maximum Component Height: 30mm
- Feeder Capacity: 100+ feeders
- Nozzle Types: Multiple nozzles suitable for fine-pitch, large components, and small components
- Power Supply: 220V AC / 380V AC, 50/60 Hz
- Power Consumption: 4.2 kW (during operation)
- Machine Interface: Touchscreen control with advanced UI for easy monitoring and operation
- Software: FUJI’s advanced placement software, featuring real-time diagnostics, performance tracking, and error detection
- Placement Technology: High-speed and high-precision with multi-head placement functionality for increased throughput
- Weight: 3200 kg
Dimensions and Weight:
- Machine Dimensions:
- Length: 3100mm
- Width: 1900mm
- Height: 1650mm
- Net Weight: 3200 kg
