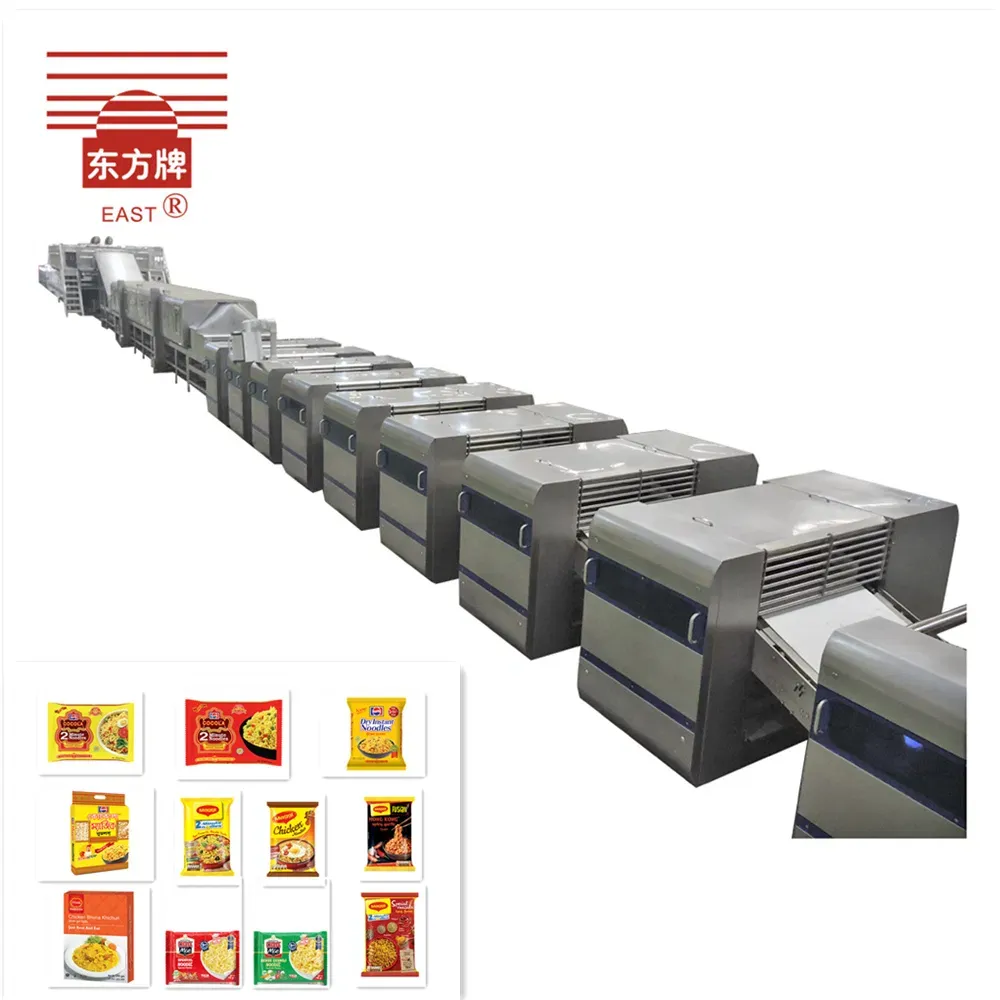

Type 600 Fried Instant Noodles Making machine Production Line
The fried instant noodle making machine production line is a square noodle production line researched and developed by our company in 1990. After more than 30 years of continuous updating, replacement and improvement, it has become a series of products that are very popular among domestic and foreign customers. The size and gram weight of the noodle block can be adjusted. Each instant noodle production line can be equipped with two sets of noodle boxes, producing two various sizes of noodle blocks help customers increase the variety of noodle blocks. The degree of automation is higher, and the production from flour to finished products can be fully mechanized, with only 2 operators. The capacity can reach from 60000pcs to 400,000 pcs/8h, which fully satisfy the needs of large enterprises.
The fried instant noodle making machine production line can produce many kinds of products, such as Indomie noodles, Nissin Foods, Maggi, MAMA, Wai Wai, Shin Ramyun, Master Kong, etc. Moreover, the instant noodle production line can also be customized according to the samples provided by the customer. This is an important reason why customers in more than 50 countries have been cooperating with our company for a long time.
.
Technical parameters of instant noodle production line
output: 160000PCS/8H
roller pairs: 8 pairs
steam consumption:≥0.8Mpa;
Total Power:around 110KW not including packaging machine,380V,50Hz ;
Environment and working conditions of instant noodle production line
Industrial electricity, power supply, water and steam are required in the workshop.

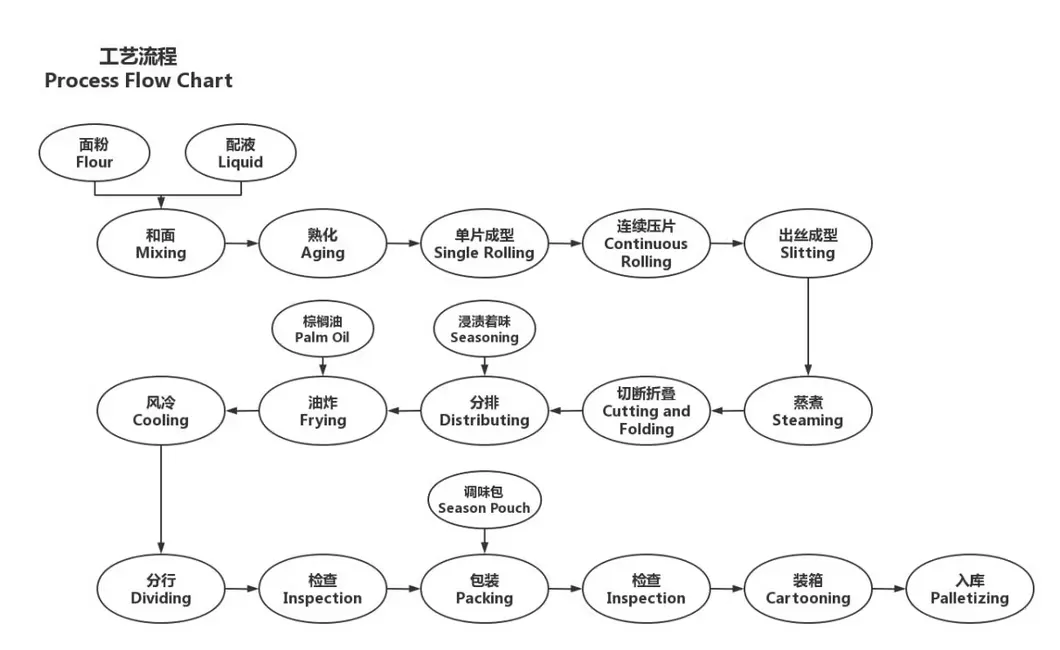

Flow Chart
This is the whole process of instant noodles production. The flour processing into instant noodles requires more than ten units to complete continuously, with a high degree of automation.

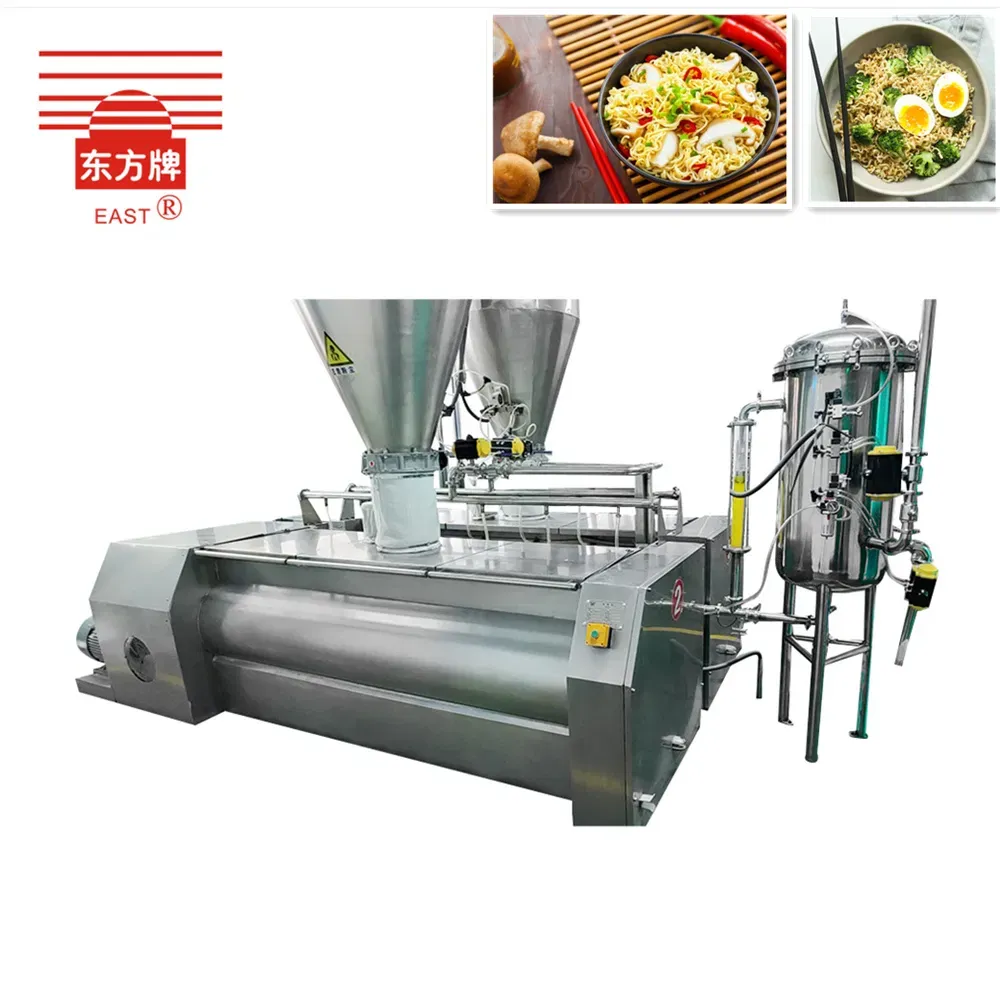

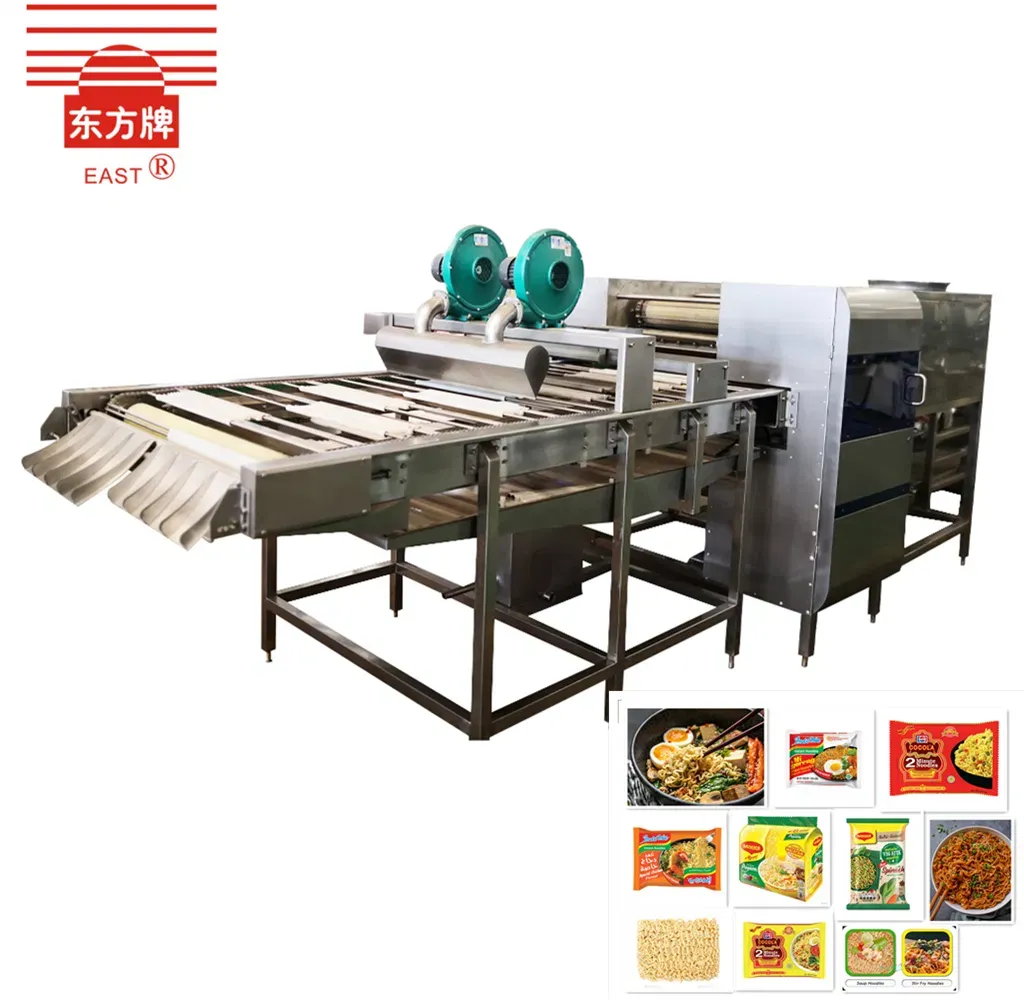

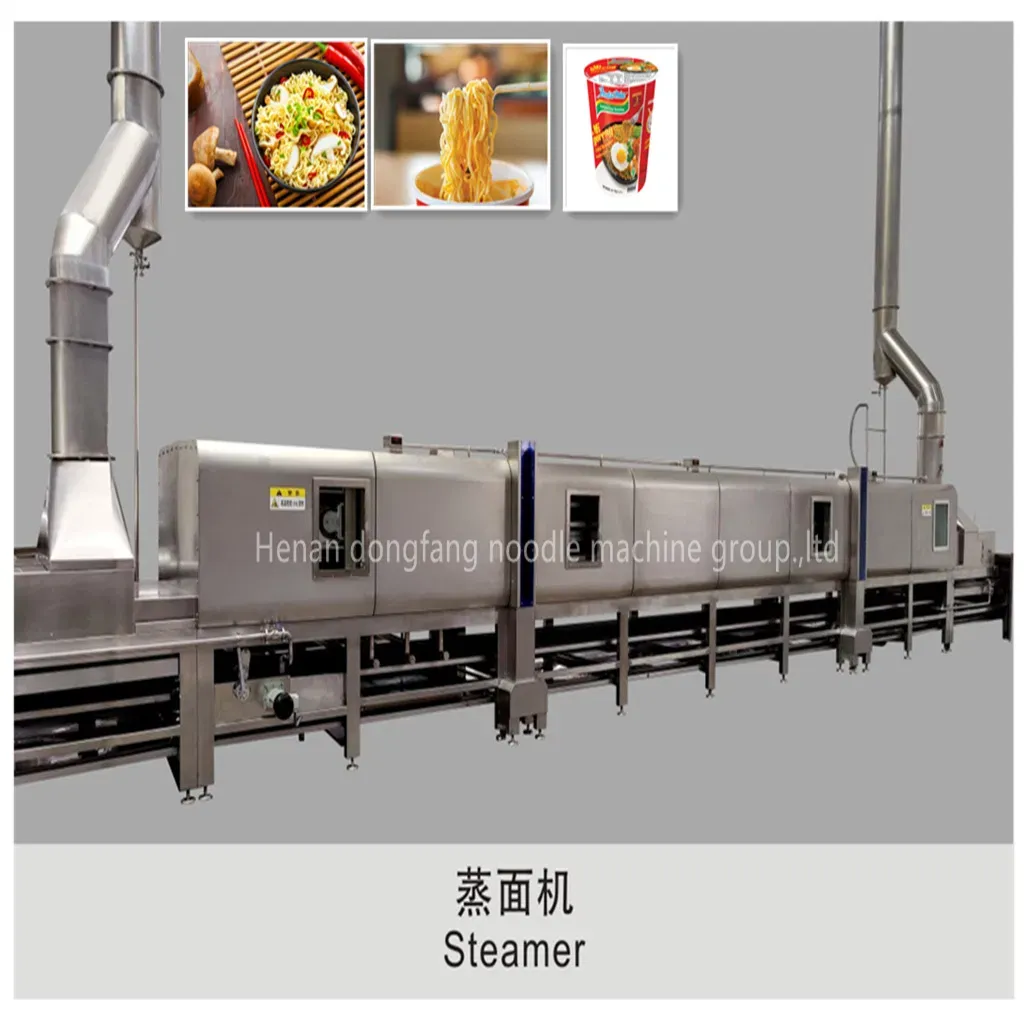

Brine mixer→Brine measuring device→Dual-axis Mixer→Aging machine→Compound roller→Multi-layer steamer→Square noodle cutting and dividing machine→Fryer→Cooling machine → Packing machine
.
Parameter
We choose the instant noodle production line according to the capacity. how many capacity are you interested in?
| model number | capacity | Power | Steam consumption | Workshop for single layer steamer dimension(m) | Workshop for 3 layer steamer dimension(m) | Workers |
| BFP-200 | 40000bags/8H | 45KW | 1200-1300KG/H | 70*5*4 | 50*5*4 | 4 |
| BFP-300 | 60000bags/8H | 56 KW | 1200-1400KG/H | 75*5*4 | 60*5*4 | 4 |
| BFP-400 | 110000bags/8H | 83 KW | 1800-2000KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-500 | 140000bags/8H | 90 KW | 1800-2100KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-600 | 160000bags/8H | 106 KW | 2000-2200KG/H | 100*7*4.5 | 80*7*4.5 | 5 |
| BFP-700 | 200000bags/8H | 114 KW | 2400-2600KG/H | 110*8*4.5 | 80*8*4.5 | 5 |
| BFP-800 | 230000bags/8H | 125 KW | 2600-2800KG/H | 110*8*4.5 | 90*8*4.5 | 5 |
| workers:( not including packaging workers ) | ||||||
Product Unit machine
Here are some important equipment, which are necessary for the production of instant noodles.

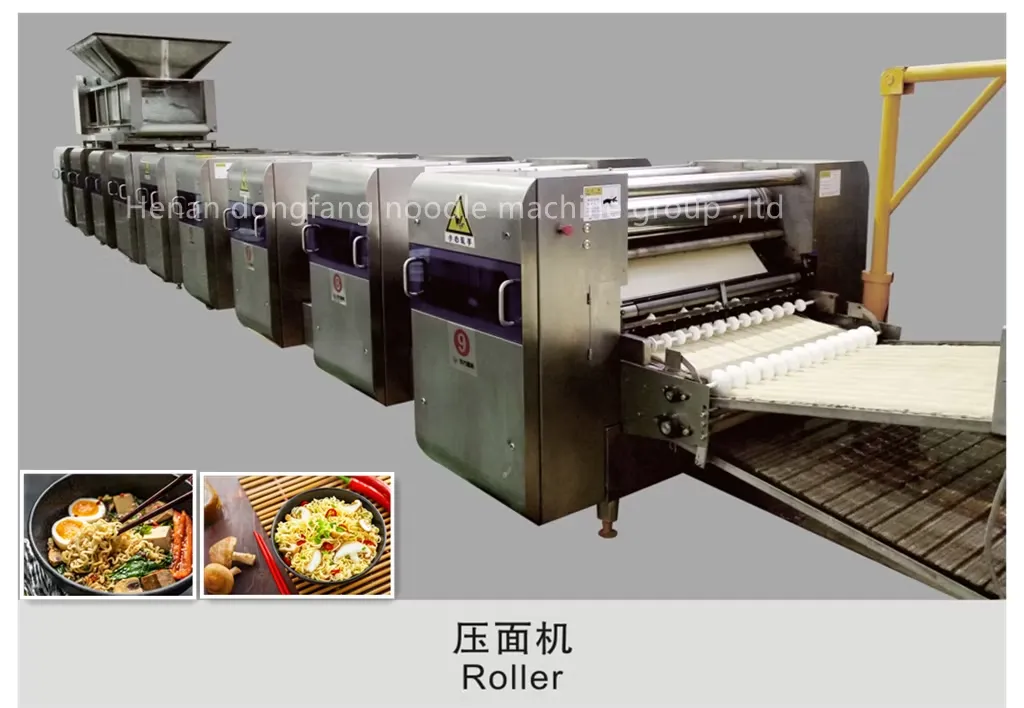

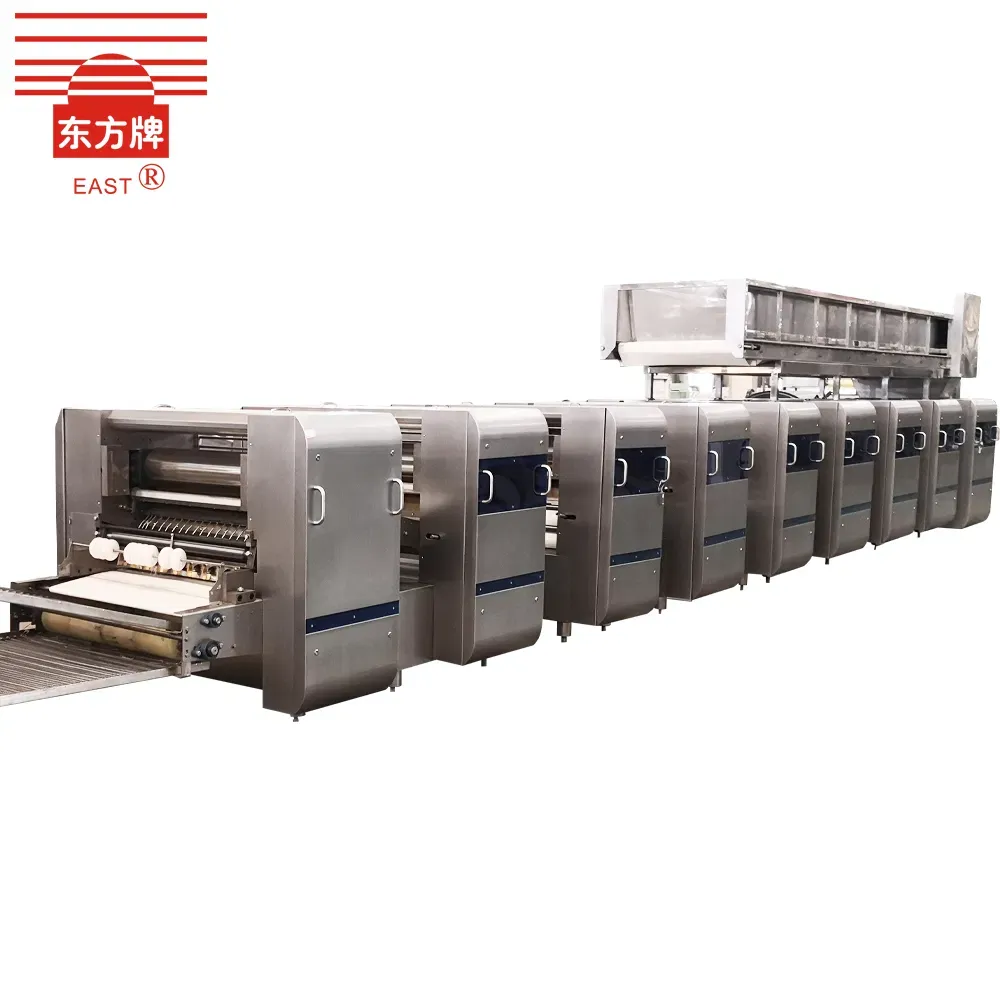

The 600 new type Roller machine adopts a brand-new appearance design, which is beautiful and novel, giving people a completely new feeling. Adopting four-axis feeding, smooth feeding, ensuring the integrity of the noodle sheet, and excellent sheet forming effect; especially the effective combination of photoelectric tracking and autom
