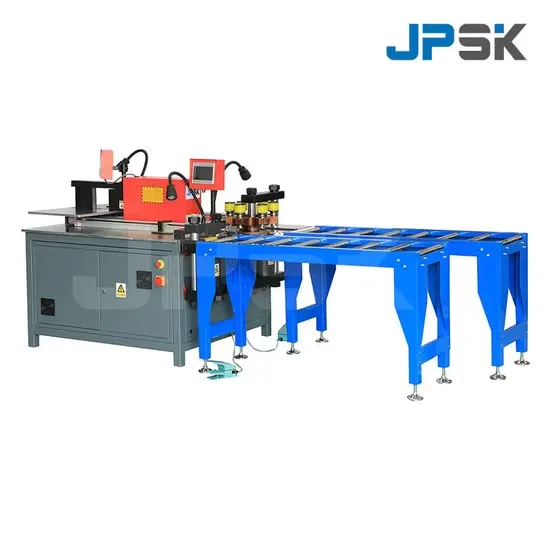

Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 2
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 3
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 4
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 5
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 6
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 7
Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine - Image 8

Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Original price was: $16,500.00.Current price is: $15,500.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Jingpeng machine-Cutting Chamfering No Indentation, Twist-CNC Hydraulic Punching Copper Machine
JPSK-4A-303NC

Product Description

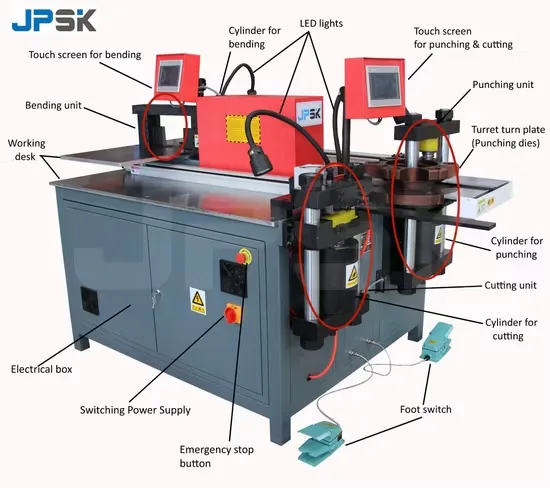

This series of CNC busbar processing machine has three processing units: punching, shearing/cutting and bending.
The three units can be used simultaneously or sequentially, which shortens the processing time and improves production efficiency.  The bending unit adopts Siemens PLC of Germany.
The main function is processing copper and aluminum busbar in different specifications.  By relative operation unit, it can do all kinds of processing to copper and aluminum busbar quickly and easily, such as shearing/cutting, punching (circular hole and oblong hole), flat/horizontal bending, vertical bending, U-bending, embossing, flat pressing, twisting, cable connector processing etc.
Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303ncJingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc

Product Parameters
       Item Unit JPSK-4A-303NC

Punching Section

 Max. Punching force(KN) 300
Diameter Range (MM) ф4.3~ф25
Max. Thickness (MM) 12
Max. Width (MM) 160
    Cutting Section Max. Shearing Thickness (MM) 12
Max. Shearing Width (MM) 160
Bending Section Max. Bending Force(KN) 300
Max. Width (MM) 160
Max. Thickness (MM) 12
Outside Dimension MM 1850×1650×1400
Power KW 3×4KW
 Machine Weight KG 1500KG
Number of Servo Axes Set 4
Punching Y-axis  Stroke MM 150mm
Punching X-axis  Stroke MM 500mm
Shearing X axis  Stroke MM 1000mm
Bending Gauge  Stroke MM 500mm
Detailed Photos

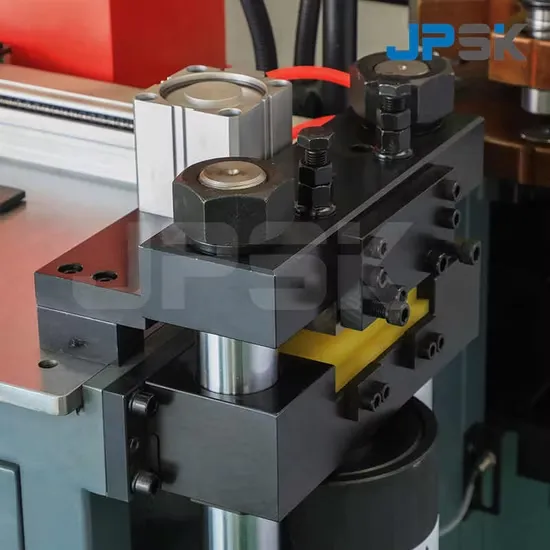

Bending unitJingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Optional Bending Accessories for Versatile Bending Techniques.

Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc

Punching UnitJingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Free punching mode
Several punching processes can be done without regular holes with different coordinates and different hole diameters.

Template punching mode
1 hole, 2 holes, 4 holes, 6 holes, 8 holes, 12 holes, etc.
It is simple and efficient to directly apply the template.

Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc

Cutting UnitJingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc

Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
USE SHARP SHEAR

FLAT INCISION INTERFACE

NO DROOPS

NO BURRS

NO WASTE

Electrical Enclosure

Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303ncHydraulic System

Jingpeng Efficient Busbar Machine-Cutting Bending Punching Switchgear Machine-CNC Hydraulic Copper Machine Jpsk-4A-303nc
