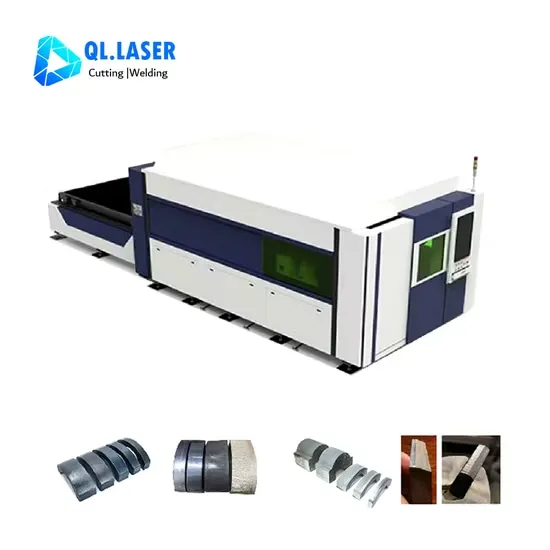

Double Table Sheet Metal Fiber Laser Cutting Machine Price 6kw 12kw 15kw 20kw 30kw 40kw 60kw 80kw 100kw 120kw

Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Original price was: $100,999.00.Current price is: $99,999.00.

Country Of Destination *

First / Company *

Email Address *

Phone Number *

Your Message0 / 180

Compare

Add to wishlist

Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature	Details
Applicable Materials	Carbon Steel, Stainless Steel, Aluminum, etc.
Nesting Software	CypNest
Cooling System	Water Cooling
Power Stabilizer	Huadong
Machine Body	Qiaolian Industrial Grade
Production Capacity	2,000 Sets / Year

Product Description

Double Table Metal Fiber Laser Cutting Machine Price 6kw 12kw 15kw 20kw 30kw 40kw 60kw 80kw for sale

I.Fiber laser cutting machine Features

1.Double Table ,Save time for loading and unloading materials.

2.The cutting area is protected by a cover to prevent splashes and be safe

3.With a camera, the cutting situation is clear at a glance.

II. Advantages

1.Steel Plate Welding Bed

1.Our fiber laser cutting machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.

Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;

3.Three exchange table modes: parallel exchange (standard), mechanical lift exchange, hydraulic exchange, to meet the different preferences and needs of global users, to meet the personalized customization.

2. Cast Aluminum Beam

Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;

3. High-end Intelligent EtherCAT Bus System

FSCUT8000 is EtherCAT bus system designed for ultra high power fiber laser above 8KW, featured by out of box service, easy to install and adjust, full solution functions. It supports customization, automation and informatization solutions, is the leading edge EtherCAT laser cutting control system on the market.

Double Table Sheet Metal Fiber Laser Cutting Machine Price 6kw 12kw 15kw 20kw 30kw 40kw 60kw 80kw 100kw 120kw for Sale

4.Intelligent bus control cutting head, Active Collision Prevention

It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently;
Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

5. Quality Control System

Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company’s factory quality standards;

III. Parameters of Fiber Laser Cutting Machine

Model	JLMD3015	JLMD4020	JLMD6020	JLMD6023	JLMD8025	JLMD10025	JLMD12025	JLMD12030
Power	12KW-80KW
Working Area (L*W)	3000*1500mm	4000*2000mm	6000*2000mm	6000*2300mm	8000*2500mm	10000*2500mm	12000*2500mm	12000*3000mm
X/Y-axis Positioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
X/Y-axis Repositioning Accuracy	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Positioning speed	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min	150m/min
Max. Acceleration	2G	2G	2G	2G	2G	2G	2G	2G

*The above data are for reference only, subject to the actual product!

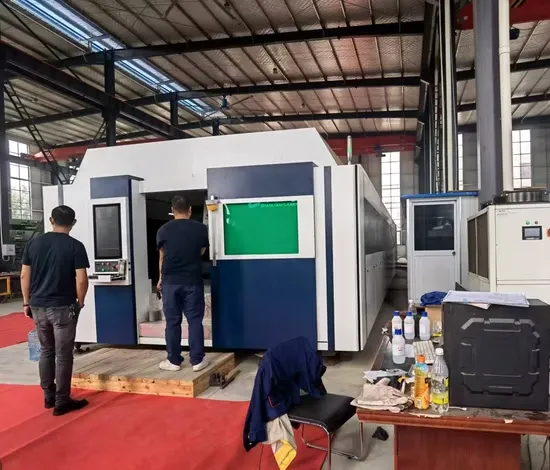

IV. Customers

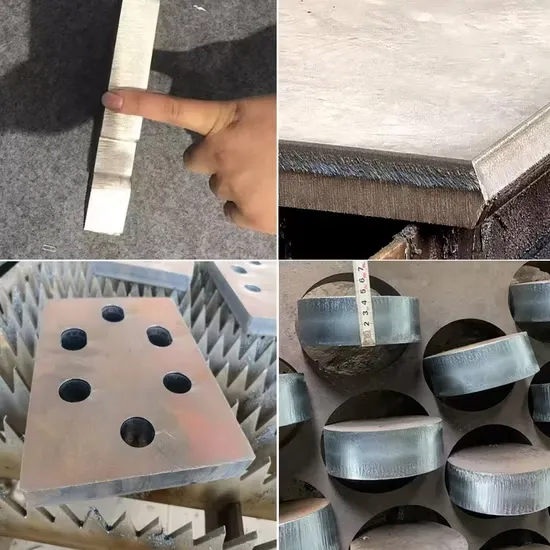

V. Fiber Laser Cutting Machine Cutting samples
