Product Description
Product Description
Machine Advantages:

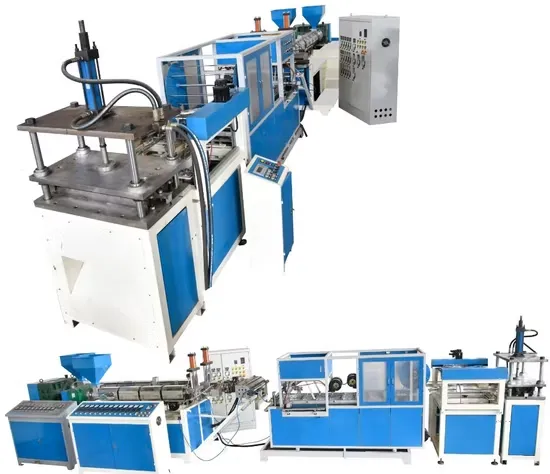

1.Low Machinery Investment: Each line comes with all associate equipment that clients need to produce products: sheet extruding machine, forming machine, fully automatic hydraulic punching machine, mixer, smash machine, one set of customized mold and punching knife.
2.Low Energy Consumption: The sheet extruding machine produces sheet directly to product forming and punching.No secondary heating requires.
3.Adapt Multi Material: PP with calcium, rice husk, bamboo, talcium, starch, straw, PS, bamboo and other plant fiber.
4.Adapt Plastic Free Material such as PLA, PBAT or 100% biodegradable material.

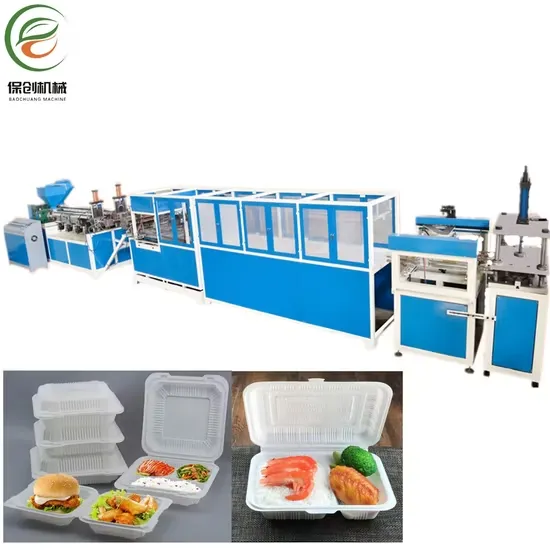

5.Multi Application: By changing mold, the machine line is able to produce lunch box, food container, clamshell box, market tray, food tray, food bowl, food plate, meal tray etc. All mold can be customized according to clients demands.
6.High Automation and Easy Operation: Two workers are able to operate the full line each shift. One worker for packing and one for side material re-usage.
7.No material wastage: Side material can be smashed and re-mixed to be used again. There is no material wastage, no gas pollution and no water pollution during production process.
8.Durable and Reliable: The machine line is able to be running 24/7 without problem. Only Require basic maintenance.
Machine Specification
|
90B Sheet Extruder
|
105-65AB-A Sheet Extruder
|
90-80-65ABCA Sheet Extruder
|
|||
|
Screw 1
|
Alloy 90
|
Screw 1
|
Alloy 105
|
Screw 1
|
Alloy 90
|
|
Screw Ratio
|
1:33
|
Screw 2
|
Alloy 65
|
Screw 2
|
Alloy 80
|
|
Motor 1(kw)
|
37
|
Screw Ratio
|
1:33
|
Screw 3
|
Alloy 65
|
|
Sheet Extrusion Method
|
One Layer
|
Motor 1(kw)
|
55
|
Screw Ratio
|
1:33
|
|
Sheet Head Size(mm)
|
L=1000
|
Motor 2(kw)
|
18.5
|
Motor 1(kw)
|
37
|
|
Max Shaping Area(mm)
|
(750-800)×350
|
Sheet Extrusion Method
|
Three Layer
|
Motor 2(kw)
|
22
|
|
Extrusion Output
|
130-150 kg/hour
|
Sheet Head Size(mm)
|
L=1300
|
Motor 3(kw)
|
18.5
|
|
Power Consumption
|
30-35 kw/h
|
Max Shaping Area(mm)
|
(950-1000)×350
|
Sheet Extrusion Method
|
Four Layer
|
|
Extrusion Output
|
270-300 kg/hour
|
Sheet Head Size(mm)
|
L=1300
|
||
|
Power Consumption
|
55-60 kw/h
|
Max Shaping Area(mm)
|
(950-1000)×350
|
||
|
Extrusion Output
|
290-320kg/hour
|
||||
|
Power Consumption
|
60-65 kw/h
|
||||
|
Servo Type Forming Machine
|
Automatic Hydraulic Punching Machine
|
||
|
Product Thickness Range
|
0.2-2.2mm
|
Punching Speed
|
≤50 Times/min
|
|
Max shaping depth
|
80mm
|
Controller
|
10inch PLC touch Screen
|
|
Traction Wheel Servo Motor
|
0.6kw
|
Jacking Servo Motor
|
0.75kw
|
|
Towing Chain Servo Motor
|
1.5kw
|
Forwarding Servo Motor
|
0.4kw
|
|
Horizontal Axis Servo Motor
|
0.4kw
|
Stacking Servo Motor
|
0.75kw
|
|
Vertical Axis Servo Motor
|
0.4kw
|
Side Material Conveyor
|
370W+Turbine Reducer
|
|
PLC
|
XDH-30A16L-E
|
Product Conveyor
|
370W+Turbine Reducer
|
|
Touch Screen
|
TGA63S-ET
|
Total Power
|
7.5-9.5kw
|
|
Pumping Speed
|
80m3/h
|
Motor Load Ratio
|
70%
|
|
Pressure Of Air Source
|
0.5~0.7Mpa
|
Motor
|
11kw
|
|
Cooling Method
|
Fan Cooling
|
Speed
|
1440r/min
|
|
Vacuum Pump
|
100L
|
Maximum Punching Area
|
1000mm*350mm
|
Customized Mold
PLC Control

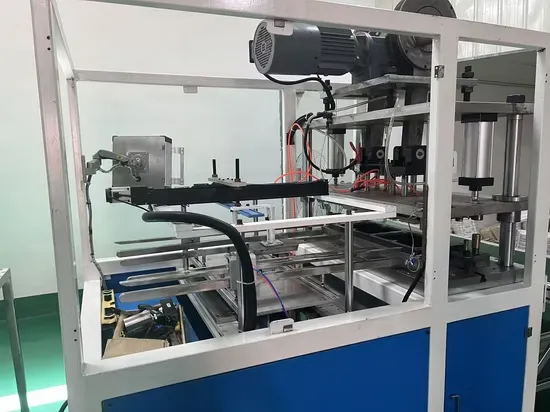

Servo Type Forming Machine
All mold are customized according to clients sample and requirement
Sheet extruder, forming machine and punching machine controlled by PLC touch screen.
Forming machine and punching Machine runs by servo motors for easily parameter adjustment.

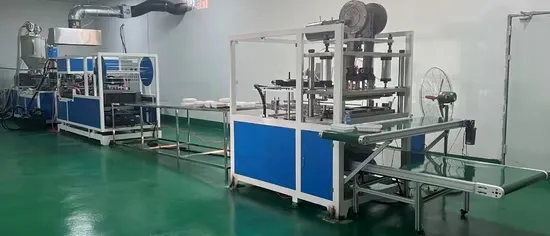

Finished Product and Side Material Conveyor
ABCA Four Layers Sheet Distributor
Advantages of Our Sheet Extrusion Machine
Client can choose to upgrade auto counting and stacking system to save labor usage
With triple screws ABCA sheet Extruder, the machine is able to produce twin colors products with product surfaces film coating.
1.Maximum Forming Area:1000mm*350mm
2.Maximum Material Extrusion Amount: Over 300kg/Hour.
3.33:1 Screw Ratio:Better Plasticizing.
4.Alloy Screw: Longer screw service time.

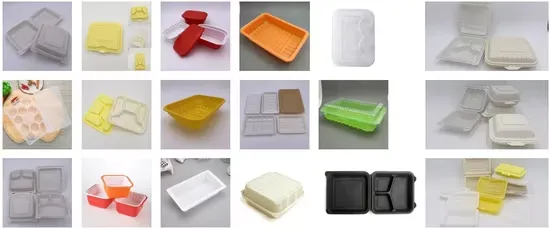

Finished Products
