Cost-Effective Adjustable Parameters Sand Making Machine Crusher

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Machine Weight 6,000 kg (6 Tons)
Dimensions (L×W×H) 3,300 × 1,660 × 2,080 mm
Theory High-Speed Impact Grinding
Certification ISO Certified
Quality Grade Advanced Technology
Color White (Customizable)

Original price was: $19,000.00.Current price is: $18,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Cost-Effective Adjustable Parameters Sand Making Machine Crusher
Cost-Effective Adjustable Parameters Sand Making Machine Crusher
Sand Making Machine
Product Introduction:
The new-type sand making machine differs from traditional sand making equipment. For example, its frame is made of high-manganese steel (a highly wear-resistant material), making it durable. In addition, its internal components are alloy-reinforced, which are more wear-resistant than those of traditional sand making machines—greatly extending the equipment’s service life. All components can be maintained via the upper part of the frame, offering advantages of labor-saving and convenience.
Product Structure:

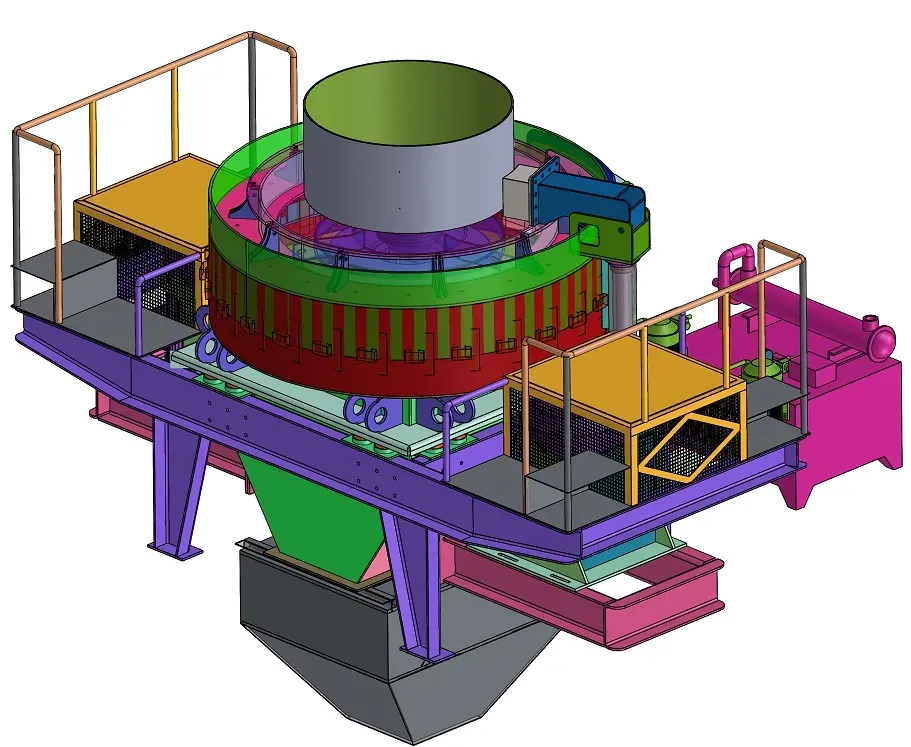

A sand making machine generally consists of a feed hopper, classifier, crushing chamber, impeller, spindle assembly, support frame, base, transmission device, motor, and lubrication system.
Main Features
1.Superior Particle Shape: During the crushing process, materials impact and crush each other without direct contact with metal components. This reduces material contamination, extends the machine’s service life, minimizes over-crushing of materials, and ensures the superiority of the product’s particle shape.
2.Environmental Protection Performance: The impact sand making machine adopts a vortex crushing chamber. During operation, the clever internal airflow circulation within the vortex chamber eliminates dust pollution, meeting environmental protection standards.
3.Adjustable Discharge Granularity: The sand making machine is equipped with frequency converter control, so the discharge size can be set by adjusting equipment parameters, allowing flexible control of the discharge granularity.
4.High Efficiency & Energy Saving: The sand making machine uses diamond-shaped combined impact blocks, resulting in high crushing efficiency, low unit energy consumption, and a long service life.
Model/Parameter
HPZ400
HPZ500
HPZ550
Processing Capacity (t)
<2
<3
<4
Maximum Feed Particle Size (mm)
30
40
50
Impeller Speed (r/min)
2000-2800
2000-2800
2000-2500
Motor Power (kw)
15
22
30
Overall Dimension (mm)
1100*1100*900
1800*1430*1200
1900*1530*1200
Overall Weight (kg)
625
1125
1350
