CNC Wire Cut EDM Wedm Machine - Image 1
CNC Wire Cut EDM Wedm Machine - Image 2
CNC Wire Cut EDM Wedm Machine - Image 3
CNC Wire Cut EDM Wedm Machine - Image 4
CNC Wire Cut EDM Wedm Machine - Image 5
CNC Wire Cut EDM Wedm Machine - Image 6
Click to enlarge

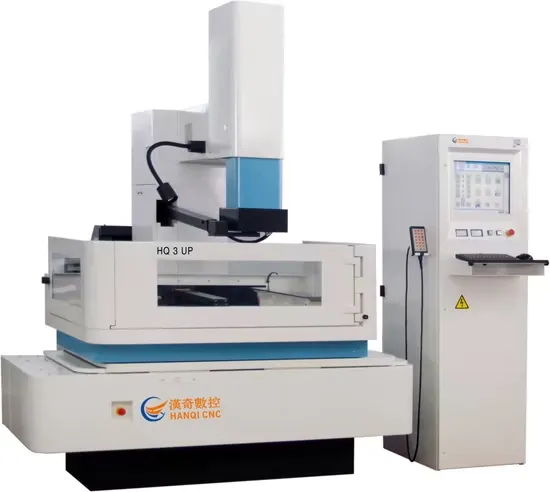

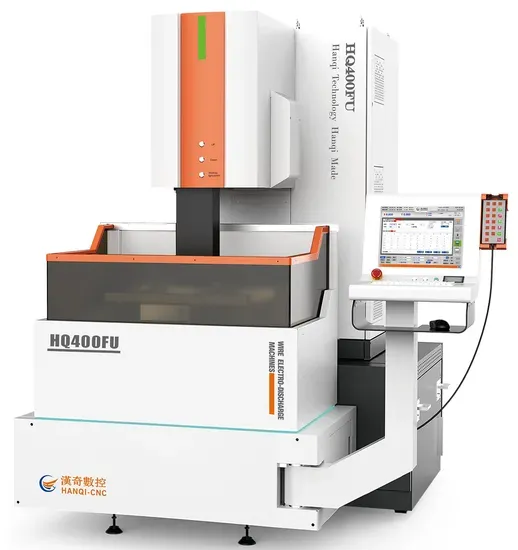

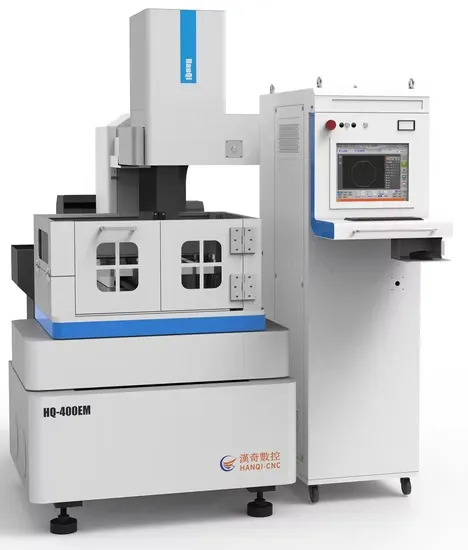

CNC Wire Cut EDM Wedm Machine
CNC Wire Cut EDM Wedm Machine - Image 2
CNC Wire Cut EDM Wedm Machine - Image 3
CNC Wire Cut EDM Wedm Machine - Image 4
CNC Wire Cut EDM Wedm Machine - Image 5
CNC Wire Cut EDM Wedm Machine - Image 6

CNC Wire Cut EDM Wedm Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Production Capacity 500 Units / Year
Machining Process Wire-cut / Sinker EDM Technology
Automation Grade CNC Integrated
Condition New

Original price was: $26,000.00.Current price is: $25,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Specification
Model FW1U FW2U FW3U
Machine
X,Y,Z travel mm 350×320×150 500×400×250 630×500×350
U,V travel mm ±18 ±18 ±22
Cutting degree °/mm ±10/80° ±10/180 ±10/250
Wire diameter mm 0.12-0.20 0.12-0.20 0.12-0.20
Machine size mm 1625×1225×1730 1790×1715×2050 2310×1940×2408
Controller size mm 935×685×1865 935×685×1865 935×685×1865
Machine weight kg 1810 2680 3500
Working tank
Workpiece size mm 630×400×200 800×500×300 930×650×400
Loading kg 300 600 800
Worktable size mm 650×420 800×500 930×650
Working tank size mm 960×640×120 1200×740×150 1360×930×150
Working fluid tank
Filter fineness μm 10
Volume  L 50
Pulse power
Max cutting speed mm2/min 180
Best roughness μm ≤1.0
Control system
Hardware Industrial PC
Communication interface USB,LAN,RS232
Axis control 4 axis simultaneous
ISO code G and M code
Language Chinese-English- Spanish- Portuguese-Russia

Chinese CNC Wire Cut EDM Wedm MachineChinese CNC Wire Cut EDM Wedm MachineChinese CNC Wire Cut EDM Wedm MachineChinese CNC Wire Cut EDM Wedm MachineChinese CNC Wire Cut EDM Wedm Machine
