China Top Brand Hydraulic Road Grader Gr215 Construction Machinery New 215HP Mini Motor Grader with Attachment
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $60,000.00.$59,000.00Current price is: $59,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Transmission Type | Power Shift Transmission |
| Maximum Gradeability | 30% |
| Ground Clearance (Front) | 430 mm |
| Tread Width | 1,900 mm |
| Tire Specification | 17.5-25 |
| Walking Mode | Wheeled (6×4 or 4×4 configuration) |
Product Description

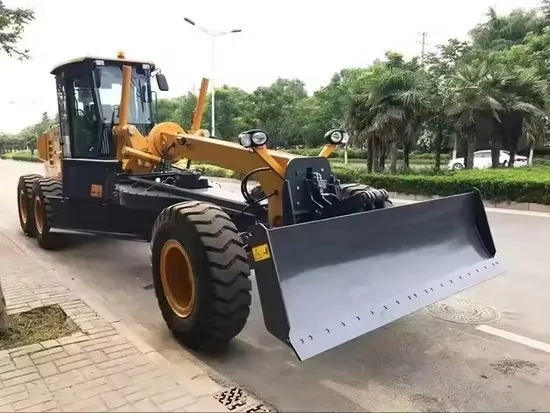

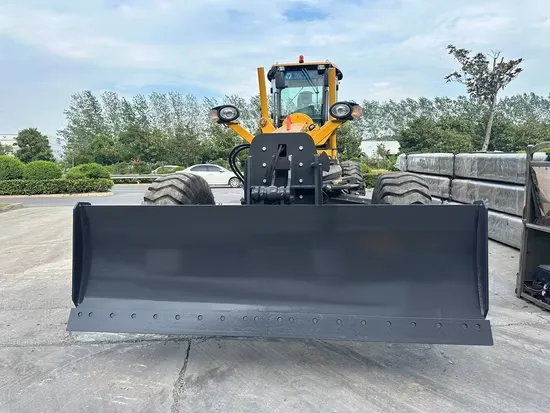

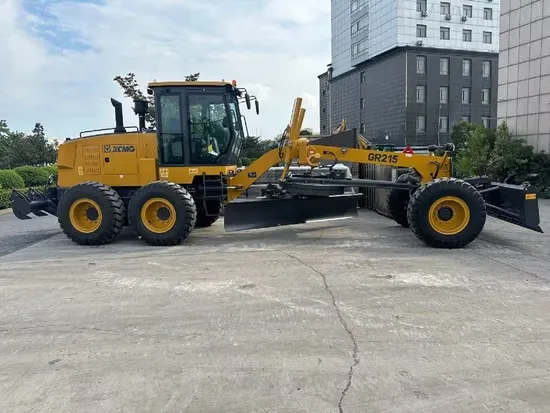

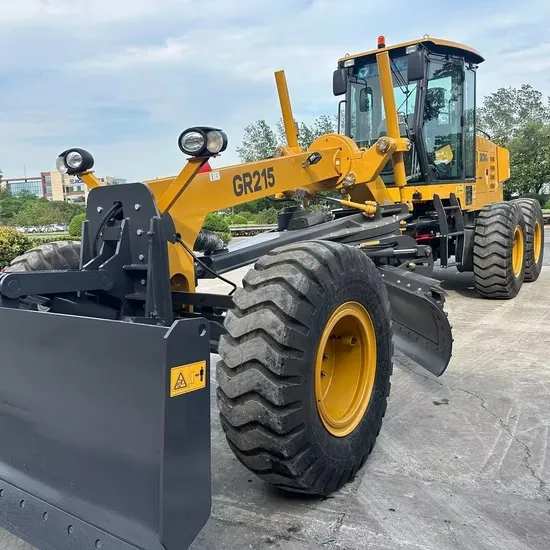

Cheap Price 215HP GR215 Motor Grader with Front Dozer and Rear Ripper
GR215 is mainly used for large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, snow removing and other work in highway, airport and farmland. The grader is necessary engineering machinery for national defense construction, mine construction, urban and rural road construction, water conservancy construction and farmland improvement, etc.

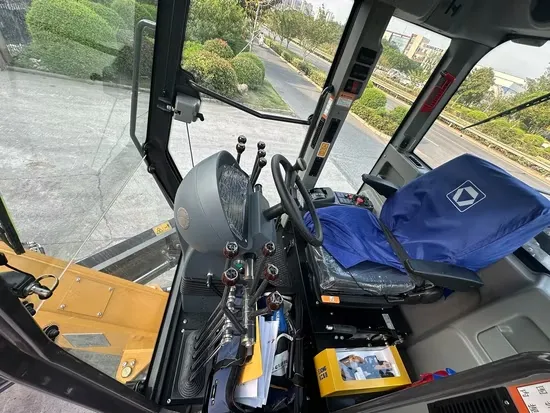

2. Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.
3. The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.
5. The special enhanced working device is applied.
6. The blade body adopts adjustable large slide slot and double slideway mechanism and the blade plates are made of wear-resistant high strength materials.
7. The multiple optional parts expand the performance and working scope of machine.
|
Item
|
GR215
|
||
|
Basic parameters
|
Engine model
|
6CTA8.3-C215
|
|
|
Rated power/speed
|
160kW/2200rpm
|
||
|
Overall dimension (standard)
|
8970x2625x3420
|
||
|
Total weight (standard)
|
16500 kg
|
||
|
Tire specification
|
17.5-25
|
||
|
Ground clearance (front axle)
|
430mm
|
||
|
Space of front and rear axles
|
6219 mm
|
||
|
Space of middle and rear wheels
|
1538 mm
|
||
|
Performance
parameters |
Forward velocity
|
5,8,11,19,23,38km/h
|
|
|
Reverse speed
|
5,11,23km/h
|
||
|
Tractive effort f=0.75
|
87 kN
|
||
|
Maximum gradeability
|
20%
|
||
|
Tire inflation pressure
|
260kPa
|
||
|
Working system pressure
|
16MPa
|
||
|
Transmission pressure
|
1.3-1.8Mpa
|
||
|
Working parameters
|
Maximum steering angle of front wheel
|
±50°
|
|
|
Maximum slant angle of front wheel
|
±17°
|
||
|
Maximum oscillating angle of front axle
|
±15°
|
||
|
Maximum oscillating angle of equilibrium box
|
forwards15°, Reverse15°
|
||
|
Maximum steering angle of frame
|
±27°
|
||
|
Minimum turning radius
|
7.3m
|
||
|
Scrape knife
|
Maximum lift height
|
450mm
|
|
|
Maximum cutting depth
|
500mm
|
||
|
Maximum tilt angle
|
90°
|
||
|
Cutting angle
|
28°-70°
|
||
|
Angle of revolution
|
360°
|
||
|
Length & chord height
|
4270x610mm
|
||
|
Oil filling amount
|
Coolant
|
50L
|
|
|
Fuel tank
|
280L
|
||
|
Engine
|
24L
|
||
|
Transmission
|
38L
|
||
|
Equilibrium box
|
46L
|
||
|
Coolant
|
28L
|
||
|
Hydraulic oil
|
110L
|
||
