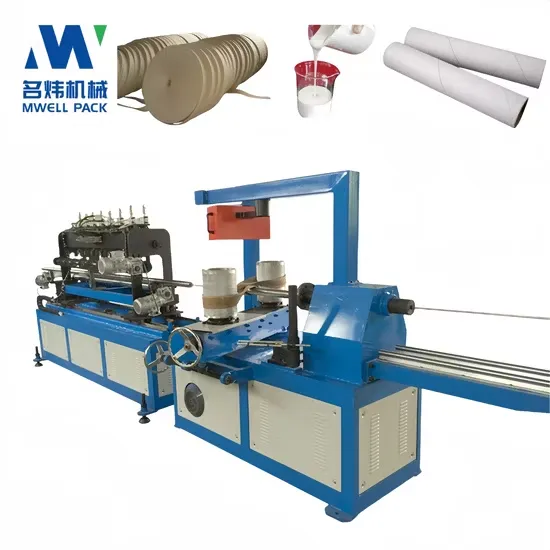

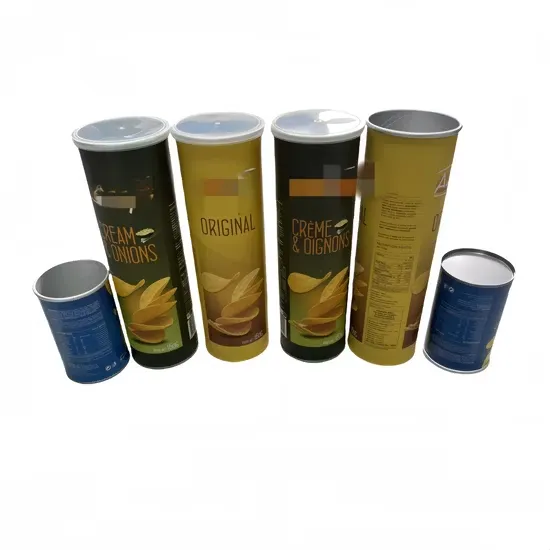

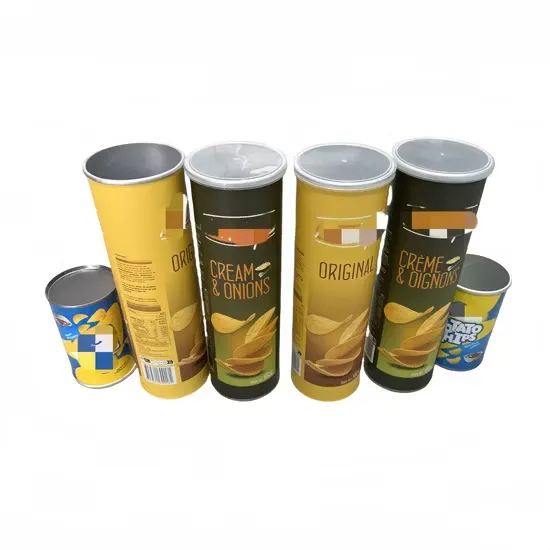

Automatic Paper Tube Machine for Composite Aluminum Foil Paper Cans of Potato Chips, Tube Cutting, Drying, Hot Melt Adhesive Labeling
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $290,000.00.$280,000.00Current price is: $280,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Roll Paper Layers | 2 – 8 Layers |
| Wall Thickness | 1 mm – 5 mm |
| Applications | Paintings Packaging, Industrial Tubes |
| Production Capacity | 200 Pieces / Year |
| HS Code | 8422303090 |
Product Description
Feature :
- Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting;
- Adopt human-machine operation interface, more convenient for operation;
- Paper reeling stand , Slitting rolls are easily place into reel stand by electric lifting device;
- Choose Single or double glue coating unit

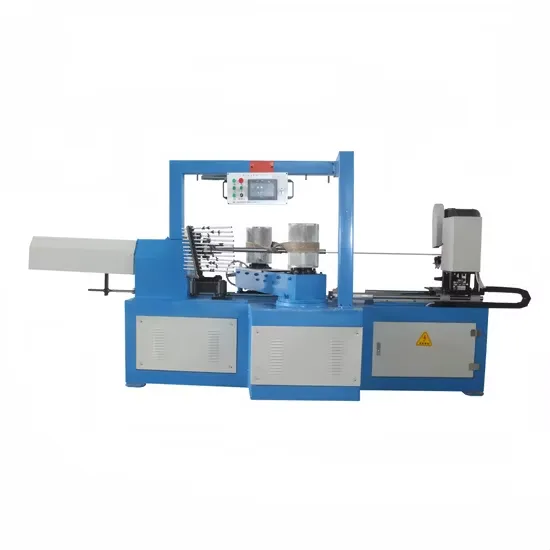

- Spiral winding part , Hanging-type operation panel specialized operation system , Belt tension device(hand-wheel driven)
- Multi-knife System in-line cutting unit controlled by encoder .,cutting final paper tube directly
| Inner Tube Diameter | 18-100mm |
| Paper Reel | 3-10 Plies |
| Thickness | 1-5mm |
| Spiral Speed | 0-30m/Min |
| Hub Wheel | Two head and single belt |
| Way Of Fixing Mandrel | Flange |
| Cutting System | 6 blade cutting system , numerical control |
| Synchronous Tracking Cutting | Servo motor control |
| Cutting Length | 100mm-1000mm |
| Way Of Gluing | Double Side |
| Cutting Length | Encode control |
| Operator | 2-3 person |
| Speed Control | Inverter control |
| Voltage | 380V, 3Phase, 50HZ |
| Dimension | |
| Main Winding Part | 5600*1600*1750mm |

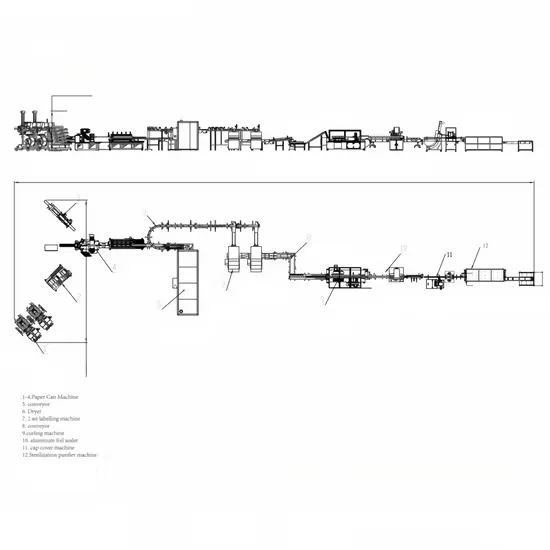

| Machine Layout Size | 11000mm * 8500mm*2900mm |
| Weight | 3200KGS |
| Drive System | |
| Main Motor | CHINA XINLING 5.5KW |
| Rotated Speed | 1400r/Min |
| Rotated Speed Of Hub Wheel | 48r/Min |
| Output Strength | 1000N.M |
| Gear Box | WPDO155 |
| Driving Chain | 16A*2 |
| Control System | |
| PLC | TAIWAN DELTA |
| Touch Screen | CHINA XIANKONG |
| Inverter | CHINA ZHENGXIAN 7.5KW |
| Signal Component | CHINA HUGONG |
| Pneumatic Component: | CHINA XINGCHEN |
| Electrical Equipment: | CHINA CHINT |
| Bearing | CHINA HAERBING |
| Servo Motor | CHINA DONGYUAN 2KW |
| Lead Screw And Sliding Block | TAIWAN ABBA |
| Main Parts | |
| Paper Reel Stand | 8 Plies Integral Paper Reel Stand |
| Gluing Unit | 8 plies Immersion Glue Loading Machine with pneumatic tension control |
| Double Motor Control Paper Bottom Feeding Unit | 1 set |
| Surface Paper Feeding Unit | 1 set |
| Mandrel And Belt | 2 sets (The size according the client requirement) |
| Belt Adjustment | Manual |
| Angle Adjustment For Reel Stand And Glue Tank | Manual (optional : Motor adjustment) |
| Glue System | Independent Glue Box/Polyurethane Scraping Blade , 1.5kw Pump |
| Lubricating Oil | Automatic Giving |
| Spare Parts And Professional Tools | |
| Allen Wrench: | 1 piece |
| Open-End Wrench: | 1 piece |
| Useful Tools: | 1 set |
| Air Gun: | 1 piece |
| Blade: | 5 pieces |
| Three-Way Connection: | 1 piece |
| Air Tube: | 8 meters |
| Limit Switch: | 1 piece |
