Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 2
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 3
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 4
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 5
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 6
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 7
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine - Image 8

Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Original price was: $39,888.00.Current price is: $38,888.00.


Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature Details
Packing Speed Max. 70 PCS / Minute
Primary Application Stick Sachet Boxing (Food, Pharma, Cosmetics)
Material Handling Solid Stick Sachets / Small Format Pouches
Forming Function Integrated Box Feeding, Filling, and Sealing
Packaging Material Paper / Plastic Boxes
Condition New

Product Description

Product Introduce
High-Speed Automatic Cartoning Machine
Dession Automatic Cartoning Machine is automatic horizontal type continuous operation equipment which is developed and designed and manufactured by our company, based on advanced machine type and combined with the actual circumstances of package. It is the integrated high –tech products of electro mechanics, totally corresponding to the GMP demands.
This Automatic Cartoning Machine is designed for versatile industries requiring precision and efficiency in packaging.
Ideal for:
Cosmetics: Lipsticks, skincare tubes, compacts, and luxury gift boxes.
Food & Beverage: Tea bags, bakery, cookies, snack bars, condiment sachets.
Consumer Goods: Small electronics, batteries, and daily essentials.
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Model
DS-100
DS-120
DS-250
Packing Speed
40~70 boxes/min
30~50 boxes/min
30~50 boxes/min
Box Size
L:60~220mm
L:80~250mm
L:150~320mm
W:20~125mm
W:100~160mm
W:100~180mm
H:15~60mm
H:40~90mm
H:90~110mm
Air Consumption
≥0.6 mpa, 20 m³/h
Power Supply
220V/380V, 50HZ
Machine Power
4.5KW
5.5KW
6.5KW
Machine Size
3425*1390*1771mm
3450*1450*1800mm
4200*1650*1850mm
Machine Weight
1200KG
1600KG
2500KG
Machine Details
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
HMI Control System
Carton Magazine
This cartoning machine’s HMI (flexible-arm mounted, touchscreen + buttons) is the operational hub: it controls the machine, sets product parameters, monitors status (with fault alerts), logs metrics, and uses an intuitive touchscreen for quick access to functions/troubleshooting.
The Carton Magazine of this cartoning machine is a dedicated storage and feeding unit (visible here as the angled, multi-rod assembly) that holds stacked flat cartons. It precisely feeds individual cartons into the machine’s processing line one by one, ensuring a continuous, orderly supply to support the cartoning workflow—critical for maintaining consistent production speed.
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine

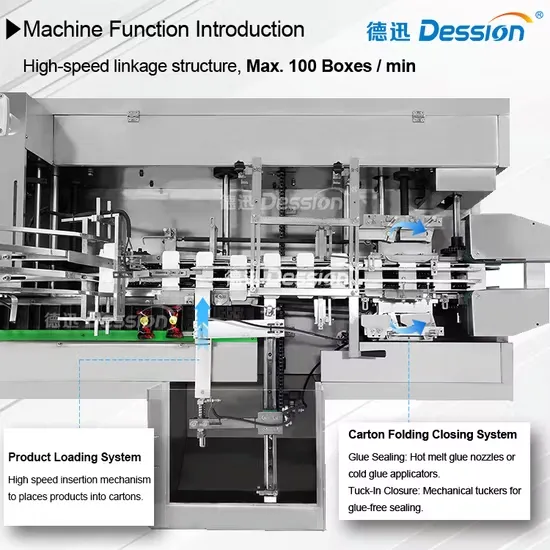

Carton Handling & Product Loading System
A. Carton Erecting Unit: Vacuum suction cup device unfolds flat cartons into 3D shapes.
B. Pusher Plates Insertion Mechanism: For high-speed insertion of standardized products into cartons.
Leaflet/Foam Insertion (Optional): Adds instructions, leaflets, or cushioning materials.
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Carton Folding & Product Closing System
Carton Transport Chain: Moves erected cartons through subsequent stages.
C. Flap Folding Units: Pre-Folding: Partially closes carton flaps.
Final Folding: Secures flaps into final position.
D. Sealing Mechanism: Glue Sealing: Hot melt glue nozzles or cold glue applicators.
Tuck-In Closure: Mechanical tuckers for glue-free sealing.
Automatic Multi Sachet Bags Sorting Secondary Packing Machine for Sachets Box Packing Machine Stick Pouch Carton Packing Machine
Carton Rejection & Output System
E.  Output Conveyor: Transfers finished cartons to downstream equipment.
Defect Rejection Unit: Removes faulty cartons.
     Counter & Batching: Tracks production volume and groups cartons into batches.
Professional Packaging Solutions
As a professional cartoning machine factory, we understand the differences in packaging for different products.
We can provide the most professional solutions based on customers’ different requirements, including different types of packaging such as Food, daily necessities, hardware, etc. We can customize the best packaging solutions according to customers’ product characteristics and market demands.
