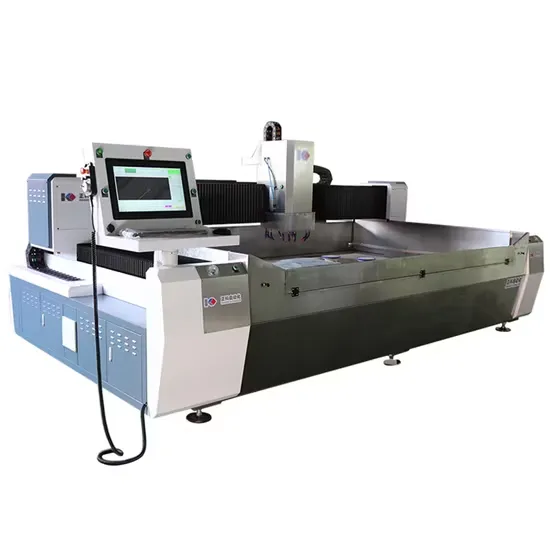

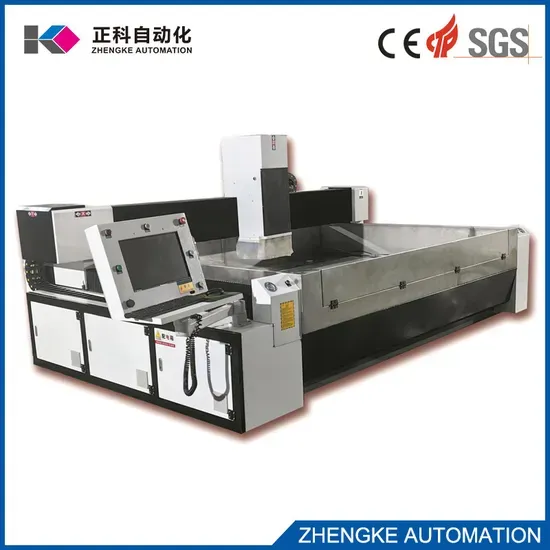

Automatic Glass Grinding Cutting Polishing Milling Processing Drilling Edging Beveling Making Lamination Edge Polish Machine
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $31,000.00.$30,000.00Current price is: $30,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Working Table Area | 2500 mm × 1500 mm |
| Milling Table Area | 2500 mm × 1400 mm |
| X-Axis Travel | 2500 mm |
| Y-Axis Travel | 1500 mm |
| Z-Axis Travel | 350 mm |
| Rotating Mode | Three-Axis Full Screw Drive |
| Max Loading | 300 kg |
Product Description
| Name and model | ZK-CNC-1530 | ZK- CNC-1525 | ZK-CNC-1020 | |
| Spindle travel (Axis) | X Axis | 3000mm | 2500mm | 2000mm |
| Y Axis | 1500mm | 1500mm | 1000mm | |
| Z Axis | 350mm | |||
| From bottom of Z axis to working table | 350mm | |||
| Working Table
(25mm 6061 aluminum) |
Working table area | 3000*1500mm | 2500*1500mm | 2000*1000mm |
| Max loading | 300kgs | |||
| Milling work table | 3000*1500mm | 2500*1500mm | 2000*1000mm | |
| Machine thick-walled square | Welding,heat treatment,vibrating ageing treatment | |||
| stainless steel sheet | 1.2mm | |||
| Spindles (For edging only) | Wheel diameter | 50-160mm | ||
| Rotate speed | 9000-12000 rpm | |||
| Rotating mode | 3-axis full screw transmission | |||
| Lubrication method | 68# lubricating oil | |||

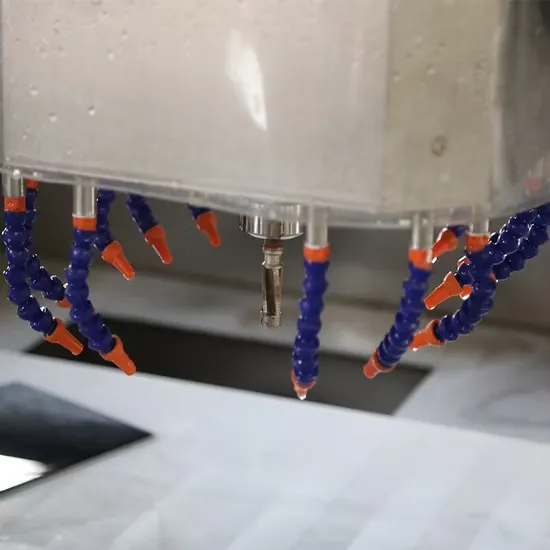

| Cooling system | CW3000 Chiller | |||
| 3 Axis motor horsepower | Delta 1.3kw | |||
| Feed Speed | X,Y axis speed | 20000mm/min | ||
| Z axis speed | 5000mm/min | |||
| Max cut feed speeds | 6000-12000mm/min | |||
| Precision | Positioning precision | ±0.05 | ||
| Repeatability | ±0.03 | |||
| Finished product precision | ±0.2mm | |||
| Processing Size | Max size | 3000*1500mm | 2500*1500mm | 2000*1000mm |
| Min size | 150*150mm | |||
| Thickness | 3-19mm | |||
| Weight and Size | Machine Weight | 5200kg | 3800kgs | 2800kgs |
| Power Consumption | 25kW | |||
| Floor Space(length*wide*height) | 5200*3200*1800mm | 4200*2600*1800mm | 4200*2200*1800kgs | |
Machine body:
Double-layer table design, X-axis and Y-axis are all double-piece and four-piece square tubes, and the reinforcing ribs are more solid.

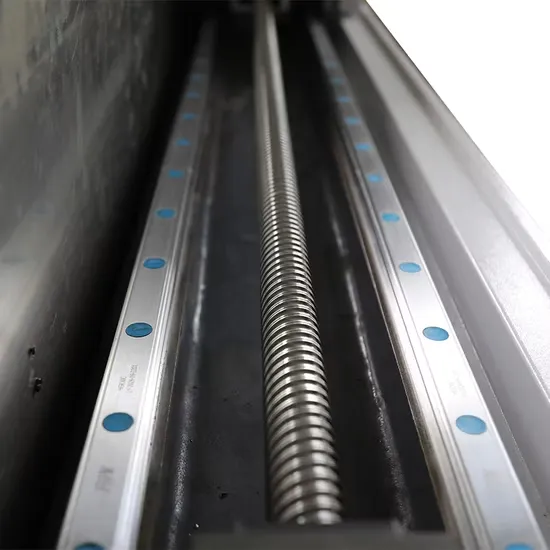

Y-axis double guide rails, the guide rail mounting surface is all thick strip steel that is finely milled by a five-face milling machining center.
The entire bed design conforms to the mechanical structure, high-temperature tempering eliminates
internal stress, and is sprayed with plastic to ensure that the bed will not deform after long-term use.
Technology:
The guide rail surface is milled and the holes for the guide rails are also punched by a five-sided millingmachining center. This allows for higher installation accuracy and is not limited by the installation workers’ assembly experience.

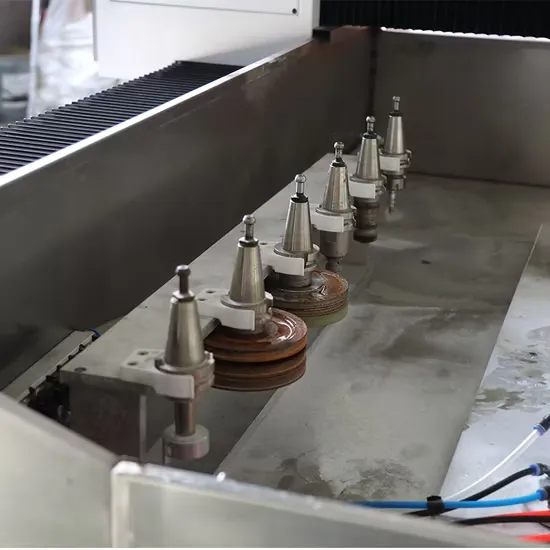

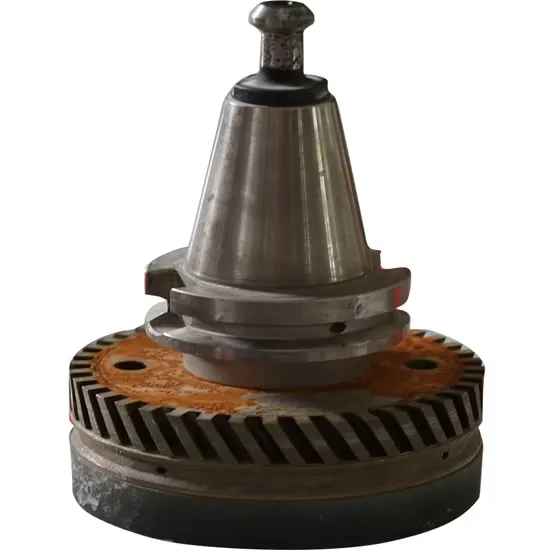

The tools we independently developed can ensure the machine life.
Operating system:
The system has its own internal image library, you can directly select the graphics, enter the size and
start processing.
The system supports the import of external drawings and directly recognizes line drawings.
The system can also be used online with robot loading and unloading.
Transportation advantages:
According to our latest mechanical design, the whole machine can be transported and installed without worries while maintaining the highest processing accuracy.
