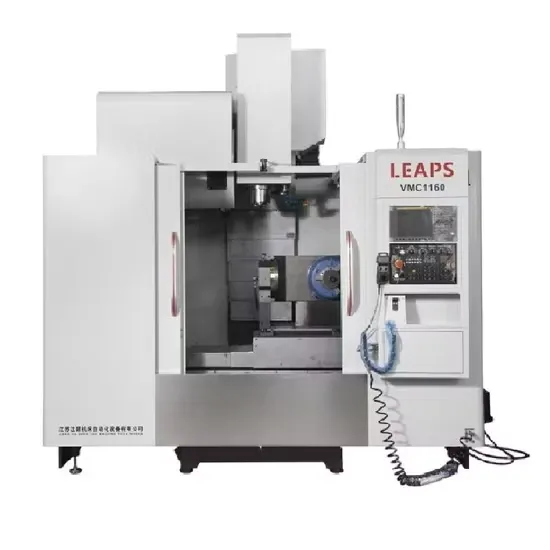

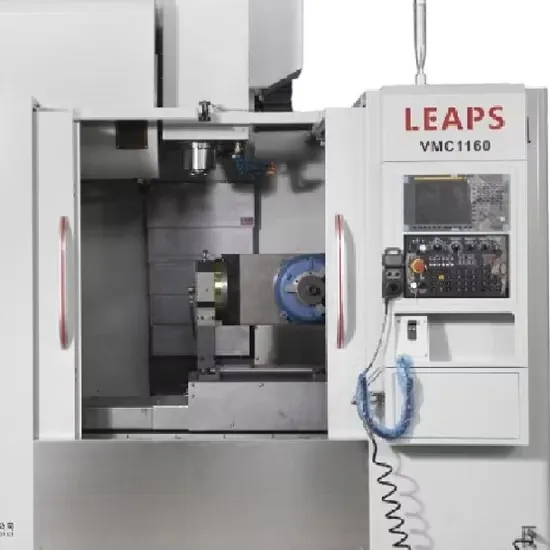

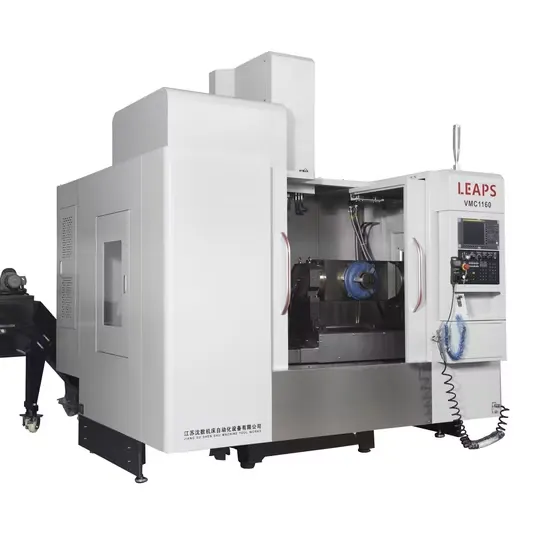

Advanced Vmc1160 Precision Tool with High Performance CNC Features
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 2
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 3
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 4
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 5
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 6
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 7
Advanced Vmc1160 Precision Tool with High Performance CNC Features - Image 8

Advanced Vmc1160 Precision Tool with High Performance CNC Features

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Tool Magazine Capacity 24 Tools (Automatic Tool Changer)
Processing Precision 0.01 mm – 0.02 mm
Positioning Accuracy ± 0.005 mm (High Precision)
Repeatability Accuracy ± 0.004 mm
Application Metal-Cutting and Non-Conventional Machining
Performance Tier Industrial High-End

Original price was: $29,999.00.Current price is: $28,999.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description
The VMC series vertical machining centers from Anhui Weilan Machine Tool Manufacturing Co., Ltd. exemplify the pinnacle of precision and adaptability, with four distinct machine models expertly crafted to enhance your production line. These exceptional machines proficiently perform intricate milling, drilling, and tapping tasks, catering to crucial industries such as automotive, engineering machinery, and general machinery. Our vertical machining centers are ingeniously designed to evolve with your needs, offering an array of customizable configurations, including two-line one hard, four axis, and spindle center water outlet. This ensures a perfect match for the specific machining requirements of your workpieces, making your processes more efficient and tailored to perfection.
Advanced Vmc1160 Precision Tool with High Performance CNC Features
Product Parameters
Item Technical Parameters Unit Detail
working range X Axis Travel mm 1100
Y Axis Travel mm 600
Z Axis Travel mm 600
Distance from spindle nose to worktable mm 120-720
Distance from spindle center to column track surface mm 650
Worktable Worktable size mm 1200*600
Load of worktable kg 800
Spindle Power of main motor KW 11 15
Spindle Speed rpm 8000 6000
Spindle Taper Shank BT-40 BT50
Spindle diameter(standard) mm 150 155
Feed X/Y/Z Rapid feed X/Y/Z m/min 36/36/36
X/Y/Z Cutting feed X/Y/Z mm/min 1~10000
Guide rail width(Slider ratio 6/4/6) mm 45/45/45
Screw diameter mm 40/40/40
Accuracy Positioning accuracy mm ±0.005
Repeatability accuracy mm ±0.004

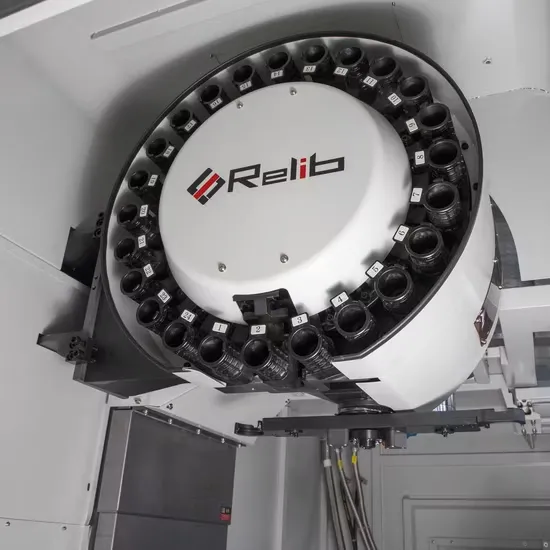

Automatic tool change Tool magazine capacity 24
ATC tool size (full tool) mm 80 125
Maximum tool size for ATC (adjacent tool gap) mm 150 225
Max. tool length mm 350
Max. tool weight kg 7 15
Tool type BT40 BT50
Others Electricity demand kVA 20 35
Machine weight kg 7000
Floor area(L x W x H) mm 3200x2550x2600

Advanced Vmc1160 Precision Tool with High Performance CNC Features
