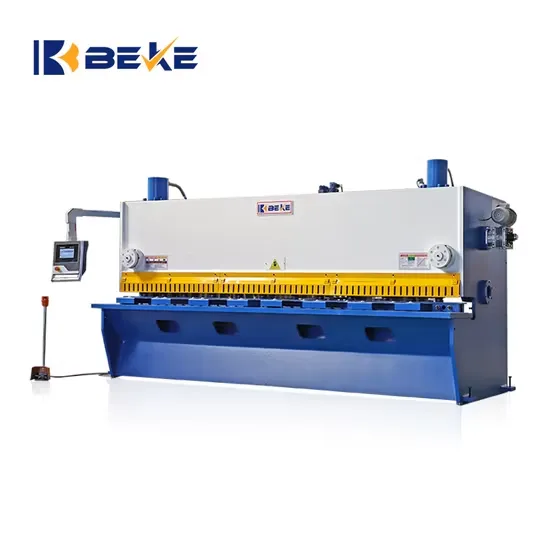

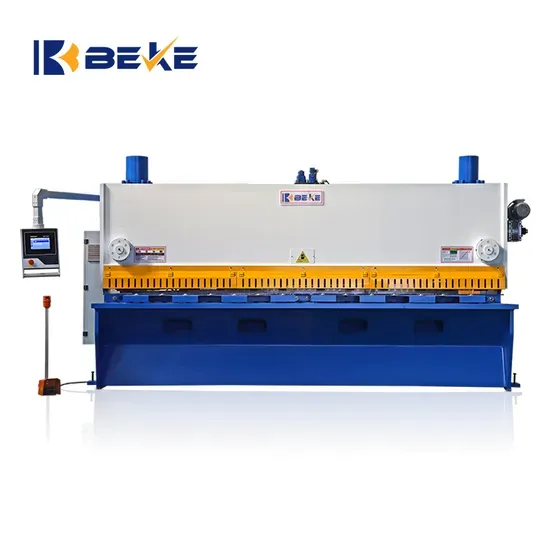

6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 2
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 3
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 4
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 5
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 6
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 7
6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting - Image 8

6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Shearing Capacity 6 mm (Thickness) $\times$ 3200 mm (Width)
Overall Dimensions 3730mm $\times$ 1700mm $\times$ 1620mm
Production Capacity 50 Sets / Month
HS Code 8462490000

Original price was: $14,800.00.Current price is: $13,800.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

Hot Sale 6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet CuttingHot Sale 6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet CuttingHot Sale 6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet CuttingHot Sale 6mm Thickness Shearer Guillotine Shearing Machine Hydraulic Metal Sheet Cutting

Technical Data
Item Uint No.
Cutting Capacity mm 6
Cutting Length 3200
Column distance 3420
Throat depth 150
Blade length 3300
Material tensile strength N/mm² 450
Cutting Angle degree 0.5-1.5
Main motor power kw 7.5
Back Gauge Distance mm 600
Speed mm / sec 100
Sliding Front Arms Quantity pcs. 4
Length mm 800
Weight kg 6300
Overall Dimension Length mm 3730
Width 1700
Height 1620
The rlling guide structure is supported by three points;
The shear Angle of the tool holder can be adjusted in the range;
Shear travel can be adjusted arbitaril;
Manual lfing of the retaining function;
The inside of the walboard is equipped witha lubricating oil pump;
The standard E21S numerical control system controls the cut count and the post-block;
A variety of numerical control systems such as DAC360 can be selected.
Now the shear can provide variety of choices and features for the products and function, to realize the optimal Shear
properties and solutions.
Multilingual display;The material retaining supports a variely of shaft control modes such as servo molor, two speed AC motor and frequency converter; Knife edge clearance, shear angle, shear length and shear pressure control; Automatic calculation of shear parameters based on material table;Manual, single step and program modes are optional; The system can oontrol the X-axis resolution accuracy at rear retaining material to 0.01mm.
