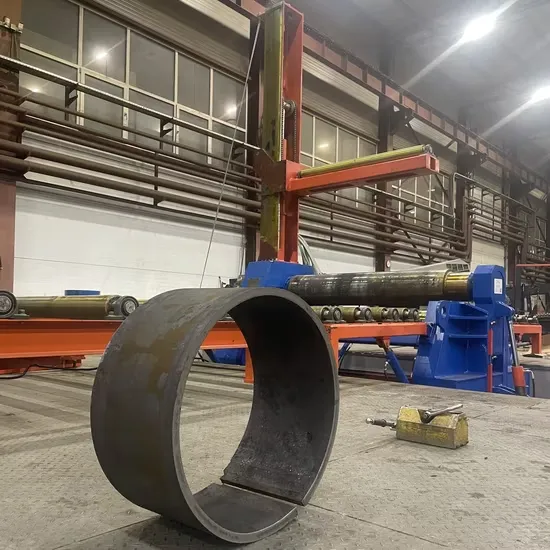

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 1

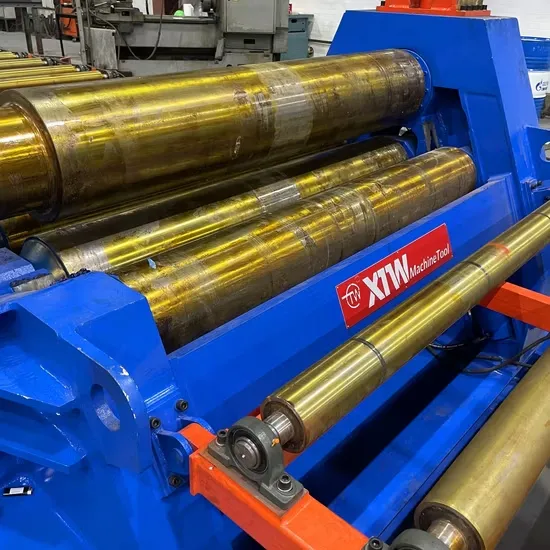

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 2

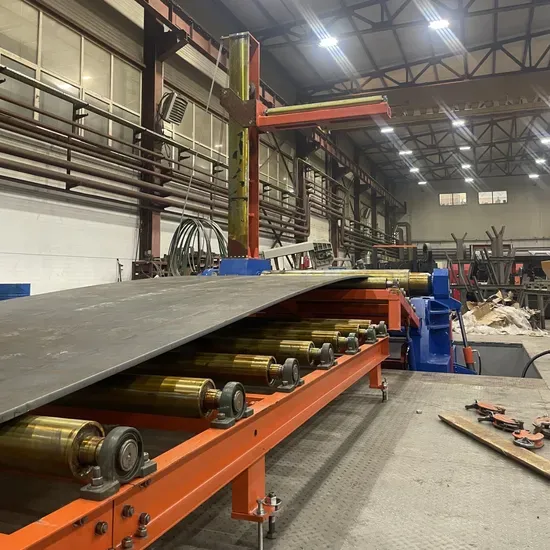

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 3

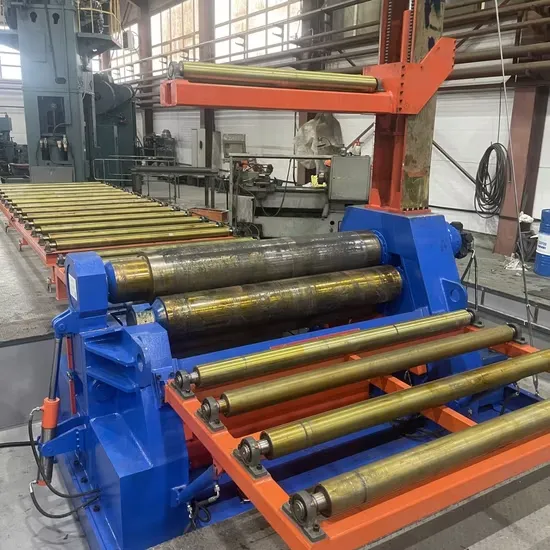

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 4

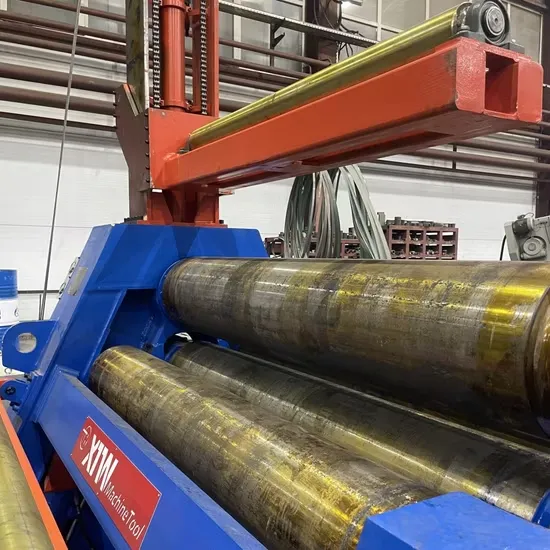

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 5

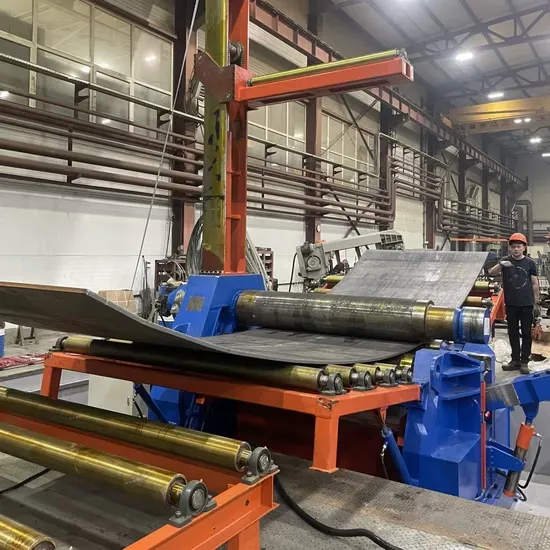

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 6

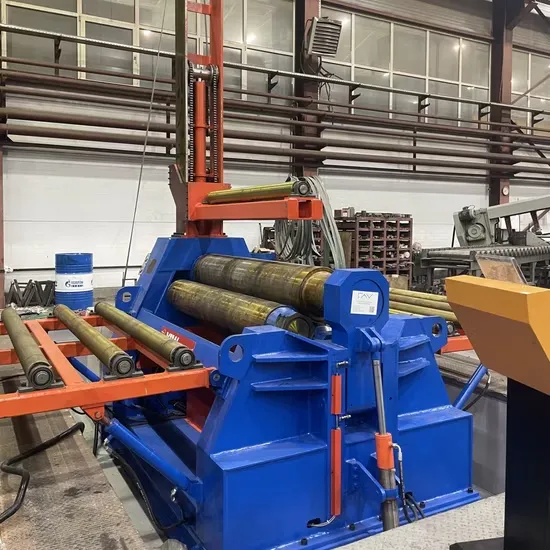

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 7
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 8
Click to enlarge
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 2
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 3
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 4
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 5
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 6
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 7
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support - Image 8

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Roller Material 42CrMo Alloy Steel
Roller Hardness HRC 48–55
Driven Rollers Top & Bottom Roller
Special Features One Key Rolling Available
Motor Brand Siemens
Suitable Materials Carbon Steel, Stainless Steel, Aluminum, Copper, Alloy

Original price was: $50,800.00.Current price is: $49,800.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support

Product Parameters
No. Name Unit Remark
Model: W12-30X2000
1 Maxi Rolling Thickness mm 30 (σ≤Q245A)
2 Maximum Pre-Rolling mm 25 (σ≤Q245A)
3 Maximum Rolling Width mm 2000
4 Roller Working Length mm 2000
5 Full Load Minimum Bending Diameter mm 800
6 Bending yield MPa 245Mppa
7 Rolling Speed M/min 4
8 Top Roller Diameter mm 400
9 Bottom Roller Diameter mm 370
10 Side Roller Diameter mm 320
11 Rollers Driven / Hydraulic Motor with Planetary Gearbox
12 Hydraulic System Maximum Working Pressure Mpa 20
13 Main Motor KW 18.5

Production case:
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides SupportThe W12 series four-roller plate rolling machine is a four-roller CNC plate rolling machine produced by introducing advanced German technology, controlled by PLC programmable digital control, fully hydraulically driven, and realizing automatic rolling. The machine has advanced structure, superior performance, good precision, high efficiency and easy operation. It is technologically leading among similar products in the world.
When rolling the plate, the position of the upper roller is fixed, and the lower roller moves upward in a straight line to clamp the steel plate. The two side rollers move upward through the linear guide to adjust the curvature radius of the drum. The metal sheet can be loaded at one time without turning around. Complete sheet end pre-bending and rolling forming. The automatic mode is used when batch rolling, and the consistency of the molding of workpieces in the same batch is good. It is an ideal equipment for rolling cylindrical, arc-shaped, conical, rectangular and other special-shaped workpieces. It is the preferred model for rolling in metallurgy, building materials, petroleum, chemical industry, water conservancy, electric power, bridges, coal, mining, shipbuilding, boilers, aviation, environmental protection, metal structures and other industries.

  1. Overturn cylinder                                                                    15. Top support system(Optional)
  2. Overturn head frame                                                               16. Feeding electric roller(Feeding Table)(Optional)
  3. Left frame                                                                               17. Hydraulic system
  4. Upper roller                                                                            18. Electric control system
  5. Side roller
  6. Lower roller
  7. Right frame
  8. Balance device
  9. Upper roller drive device
  10. Lower roller drive device(Optional)
  11. Side roller cylinder (Optional)
  12. Lower roller cylinder
  13. Base 14. Side support(Optional)

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support
Work roller balance control
Diagonal slide rail: Using the most advanced and sophisticated EPS electronic balancing system (as shown below), XTW Machine Tool Company’s W12 series machine tools have an EPS electronic balancing system, through 2 sets of hydraulic cylinders for synchronous movement, OMRON PLC central controller to ensure that the work rolls under any coil load are perfectly parallel. The trim error of EPS is ±0.1mm.
4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support

Our Advantages

4-Roll Plate Rolling Machine with 7m Feeding Table and Both Sides Support
