Product Description

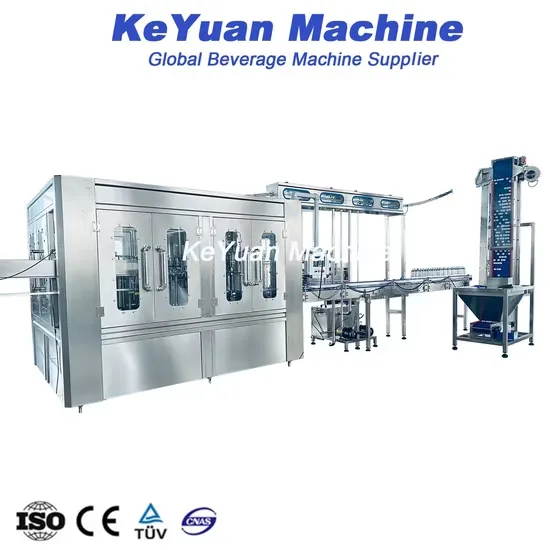

XGF Series Water Filling Machine
XGF series bottled water filling machine line is used to filling mineral water or purified water into PET bottle from
200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 24000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
200ml-2000ml.Different models can satisfy various requirement of output from 2000BPH to 24000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.
|
Model
|
CGF8-8-3
|
CGF12-12-6
|
CGF18-18-6
|
CGF24-24-6
|
CGF32-32-8
|
|
Capacity(500ML)
|
2000PBH
|
5000PBH
|
8000PBH
|
12000PBH
|
15000PBH
|
|
Washing heads
|
8
|
12
|
18
|
24
|
32
|
|
Filling heads
|
8
|
12
|
18
|
24
|
32
|
|
Capping heads
|
3
|
6
|
6
|
6
|
8
|
|
suitable bottle
|
PET bottle,plastic bottle
|
||||
|
Diameter of bottle
|
55-110mm
|
||||
|
Height of bottle
|
150-310mm
|
||||
|
Suitable cap
|
Plastic screw cap
|
||||
|
Weight
|
1500kg
|
2000kg
|
4000kg
|
4500kg
|
6000kg
|
|
Main motor power
|
1.2kw
|
1.5kw
|
3kw
|
3kw
|
3kw
|

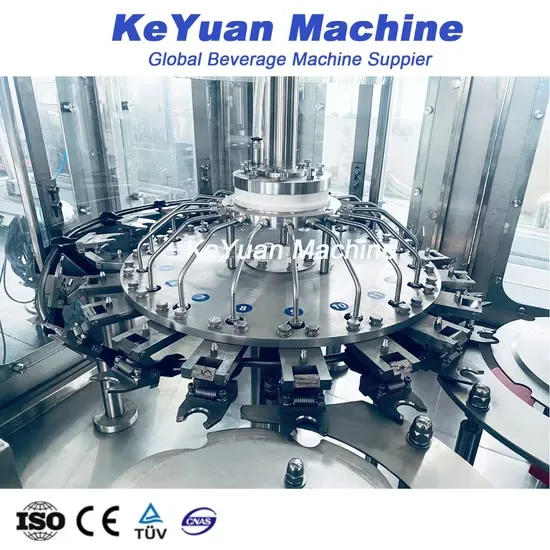

Washing Part
– Into bottle way is air conveyor direct connection with bottle dial.
– All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
– 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
– 304/316 stainless steel washing pump make the machine more durable.
– All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
– 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
– 304/316 stainless steel washing pump make the machine more durable.

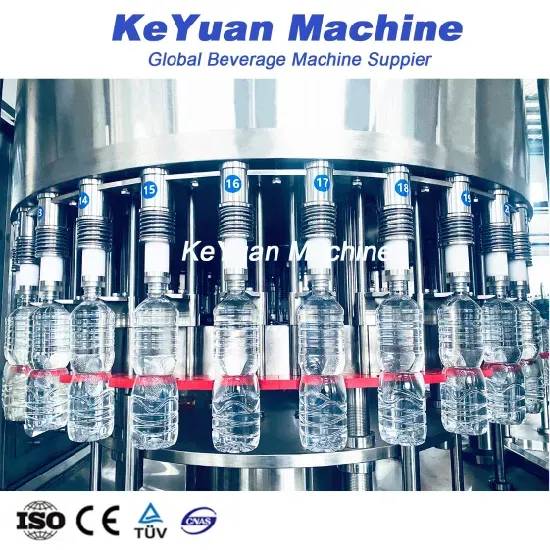

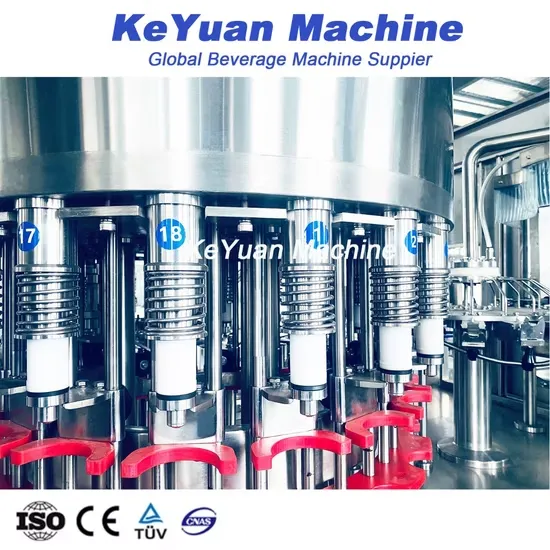

Filling Part
– 304/316 Stainless steel high precision filling nozzle
– Filling volume adjustable in fine rank, same liquid level after filling
– All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
– 304/316 stainless steel filling pump
– Efficient spray nozzle rinse thoroughly and save water for flushing
– Filling volume adjustable in fine rank, same liquid level after filling
– All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
– 304/316 stainless steel filling pump
– Efficient spray nozzle rinse thoroughly and save water for flushing

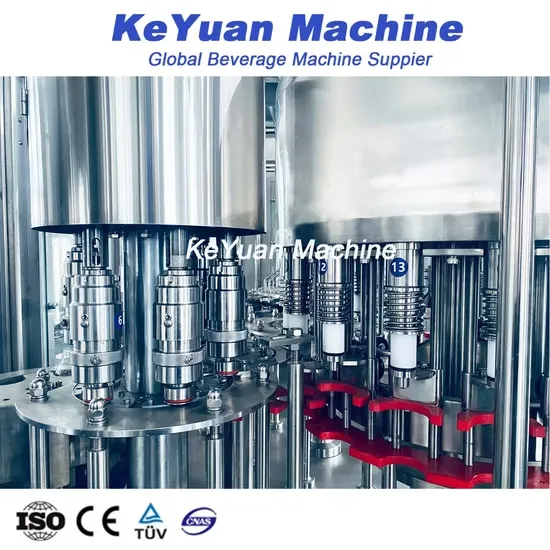

Capping Part
– Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
– All 304/316 stainless steel construction
– No bottle no capping
– Automatic stop when lack of bottle
– Capping effect is stable and reliable, Defective rate ≤0.2%
– All 304/316 stainless steel construction
– No bottle no capping
– Automatic stop when lack of bottle
– Capping effect is stable and reliable, Defective rate ≤0.2%
Flat Conveyor
– Energy saving. High efficient. Adapt to customer factory layout
– Special lubrication system, keep products clean, health, safety
– Extended service life
– Electric eyes design keep whole line running safety and quickly
– Overload protection mechanism to effectively ensure the safety of the machine
– Special lubrication system, keep products clean, health, safety
– Extended service life
– Electric eyes design keep whole line running safety and quickly
– Overload protection mechanism to effectively ensure the safety of the machine

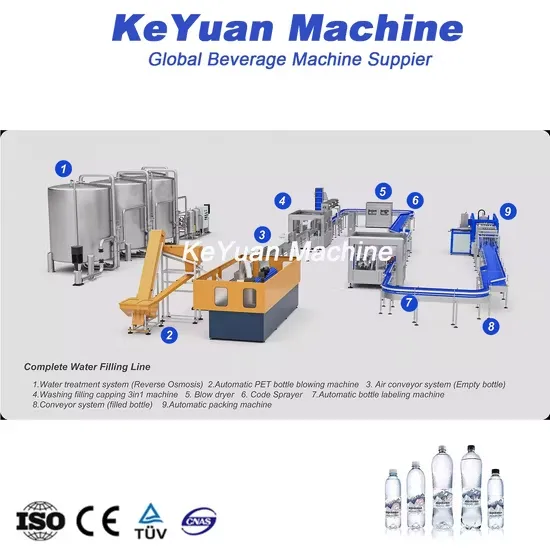

Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
4.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
4.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.
Hot Melt Glue Labeling Machine
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
Laser Date Printer
This machine combines advanced laser galvanometer marking technology, imported RF excitation and sealed CO2 laser and real-time marking software control technology. It uses laser marking technology on the production line to mark and mark fast moving products. The writing is permanently erasable and can meet the needs of various production lines. It is suitable for online marking of paper, plastic, non-metallic materials and painted metal packaging materials.
Automatic shrink wrap packing machine
Automatic shrink wrap packing machine In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine,
sometimes called the winding machine and the wrapping machine.
sometimes called the winding machine and the wrapping machine.
Cap injection molding machine
It also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical,horizontal, all electric.The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
